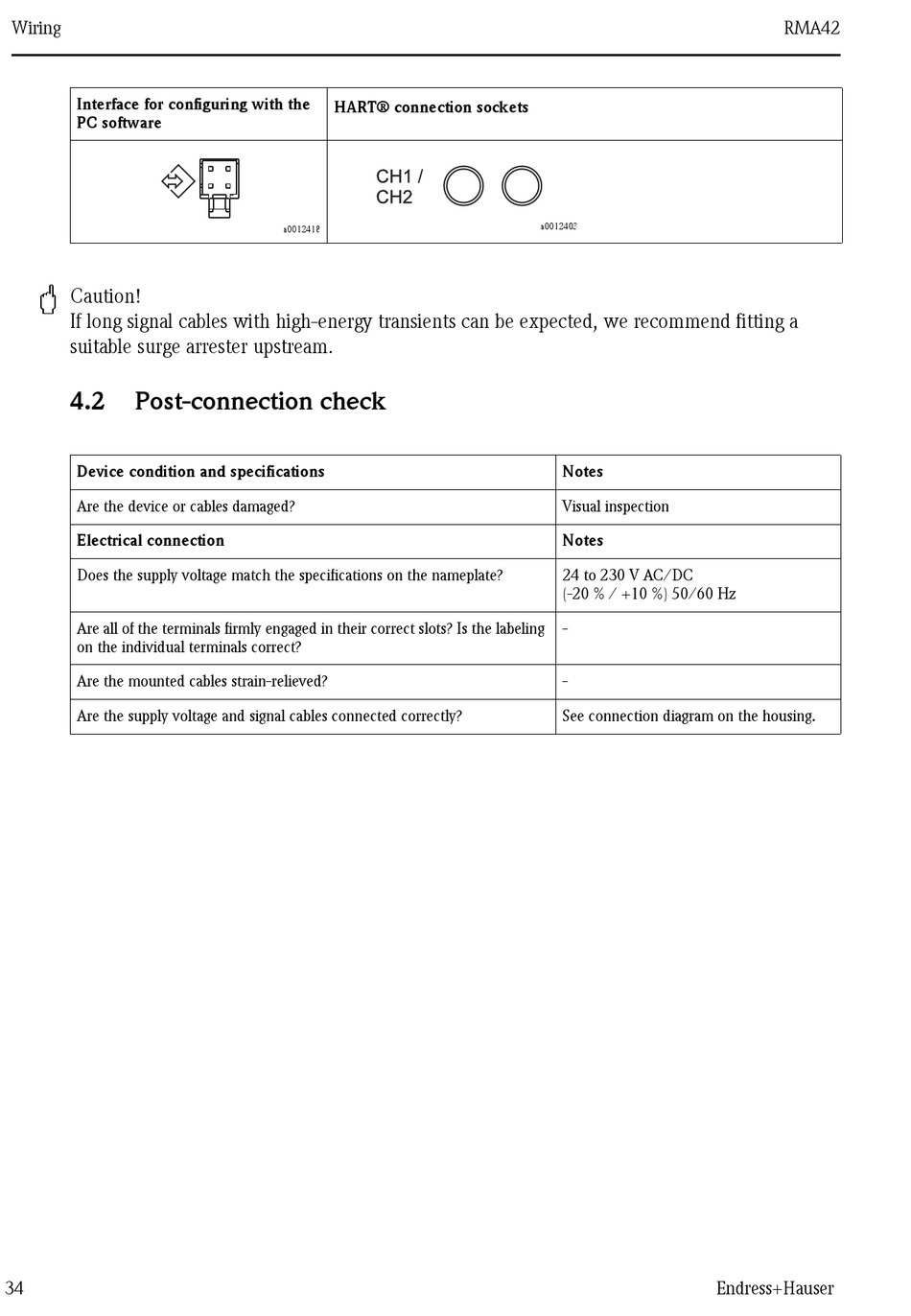

Post-Connection Check - Endress+Hauser RMA42 Kurzanleitung

Wiring
Interface for configuring with the
PC software
"
Caution!
If long signal cables with high-energy transients can be expected, we recommend fitting a
suitable surge arrester upstream.
4.2

Post-connection check

Device condition and specifications
Are the device or cables damaged?
Electrical connection
Does the supply voltage match the specifications on the nameplate?
Are all of the terminals firmly engaged in their correct slots? Is the labeling
on the individual terminals correct?
Are the mounted cables strain-relieved?
Are the supply voltage and signal cables connected correctly?
34
HART® connection sockets
a0012418
a0012403
Notes
Visual inspection
Notes
24 to 230 V AC/DC
(-20 % / +10 %) 50/60 Hz
-
-
See connection diagram on the housing.
RMA42
Endress+Hauser
