Endress+Hauser RMA42 Kurzanleitung Seite 33

RMA42

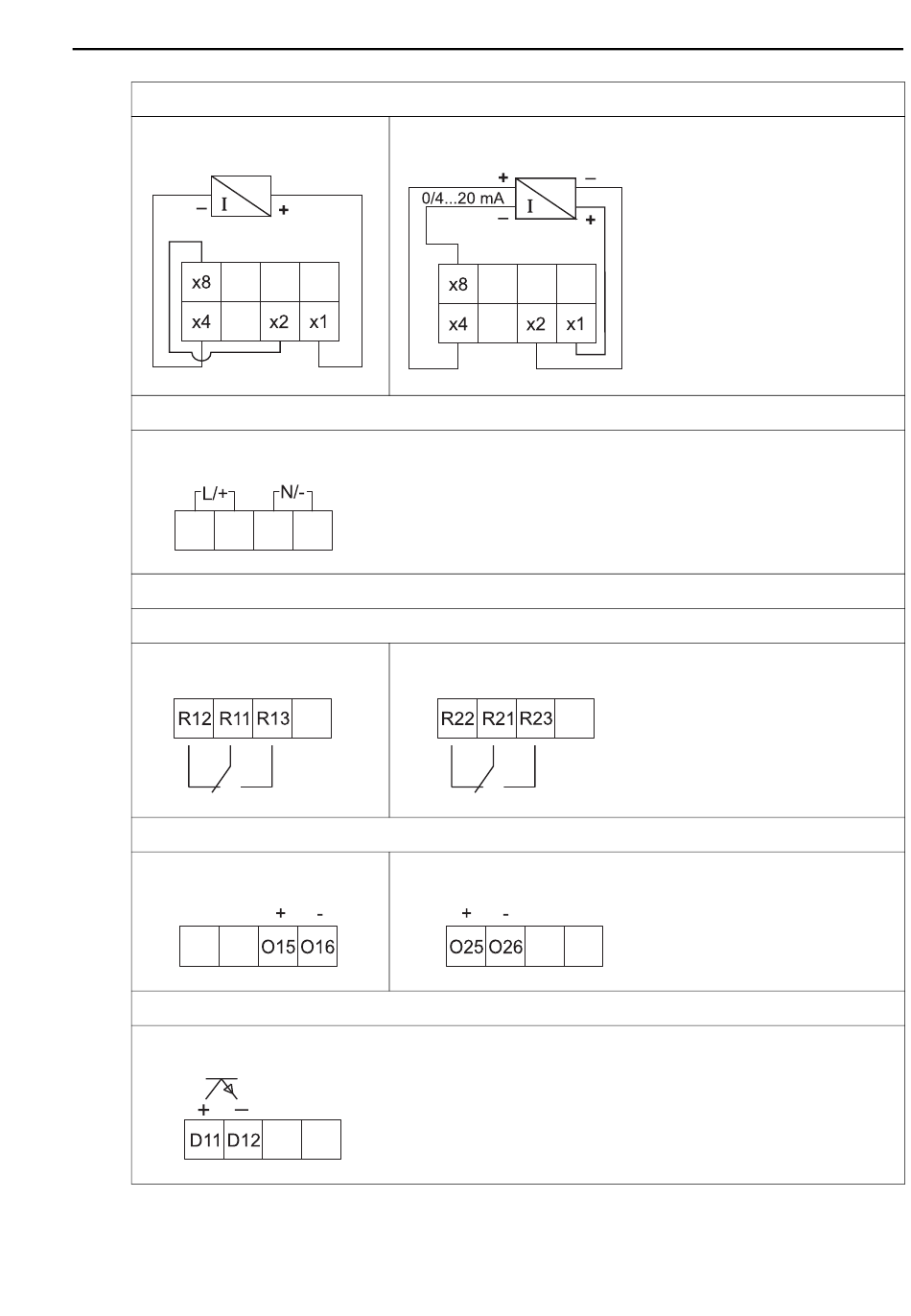

Connection of the loop power supply
2-wire
24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz
Connection of the relays
Relay 1
Connection of the analog output
Analog output 1
Connection of the digital output
Digital output / Open Collector
Endress+Hauser
4-wire
a0011925
Power supply (underside of device)
a0011805
Outputs (underside of device)
Relay 2
a0011801
Analog output 2
a0011803
a0011806
a0011926
a0011802
a0011804
Wiring
33
