21476 Speaker stand »Ring Lock«

INTENDED USE :

- Stand with a manually adjustable extension for PA speakers,
- e.g. the Teufel ROCKSTER AIR
FEATURES & CAPABILITIES
- A patented expanding mandrel system provides a tight an firm fit for the speaker
- Professional quality. sturdy, stable and foldable to save space
- Suitable for rehearsal room, studio, stage, tour - and party room
- Maximum load-bearing capacity: 50 kg*
- Height 1420 - 2200 mm, base circle ø 1150 mm,
- expanding mandrel system: ø 35-36.5 mm weight 6.2 kg
Thank you for choosing this product. Please read and follow carefully the instructions. They
inform you about all important steps, that are required for a safe assembly and operation.
Please keep the instructions for future reference.
SAFETY INSTRUCTIONS (summary)
Please see the attached sheet for precise details.
A. GENERAL
- The maximum centric load-bearing capacity adds up to 50 kg*
- Load capacity is a suitable PA with bushing ø 35 mm (e.g. Teufel ROCKSTER AIR)
- Ensure that the floor is suitable, i.e. level and loadbearing
- Works should be carried out by competent staff (technical and physical)
- The safety of operation is based, among other things, on the observance of these operating
- instructions, especially the points mentioned here under A-G.
B. NOTICE of "FORESEEABLE MISAPPLICATION"
- Base and extension tube combination must always be installed vertically (not inclined!)
- Do not load the stand on one side, as this reduces the stability or load-bearing capacity
- It is not allowed to shift the stand, especially under load
- Protect the stand from moisture and humidity
C. BEFORE USE
- Visually inspect the stand - do not use damaged stands
D. ASSEMBLING THE STAND
- For maximum stability, set the largest possible root diameter
- Tighten the clamping screws firmly, but without using any tools. Hand tight is completely sufficient
- The locking bolt 4.5 for fixing the extension tube must always be engaged
- - except when adjusting the height
E. EXTENDING/RETRACTING THE LOAD (see chapter 4)
- These activities must always be carried out by at least two suitable persons
- The "first person" has to hold the extension tube with bearing load firmly and securely, while the
- "second person" can use the securing elements locking bolt and clamping screw at any time.
- e.g. if the "first person" is not able to hold the tube and the load.
F. DURING USE - Safety during operation is based on:
- Never loosen locking bolt 4.3 and clamping screw 4.2 of the extension tube in an uncontrolled
- manner
- CONTROL of LATERAL FORCES (relevant due to danger of tipping)
- Lateral forces must be avoided. These occur when:
- a. the stand is inclined
- b. the load balance is exocentric
- c. external shocks such as kicks, pulling on the stand, vibrations, wind, etc. are suffered)
G. AFTER USE
- Allow the load to retract slowly and in a controlled manner (see above - E)
- Carry out visual inspection (see above - C)
- Carefully fold up the stand and stow it away in a protected place

TECHNICAL DATA

Base, foot, extension tubes: Steel
Struts, screws, rivets: Steel
Material Tension ring: Aluminum
Clamps, handles, mandrel elements: PA
Parquet protectors, dampener: TPE
Max. base circle: ø 1150 mm
Dimen- Height: min. 1420 - max. 2200 mm
sions Packing size: 1162 x 120 x 130 mm
Net weight: 6.2 kg
INSTALLATION - / USER INSTRUCTIONS
1. COMPONENTS
After unpacking, visually inspect whether all parts are present and - if identifiable - whether they
are in order:
a Stand, folded,
b Clamping screw (M8 x 23 mm) for triangular clamp
c Clamping handle (M8 internal thread) of the telescopic bolt clamp
d Extension tube with »Ring Lock« mechanism
e Instruction manual

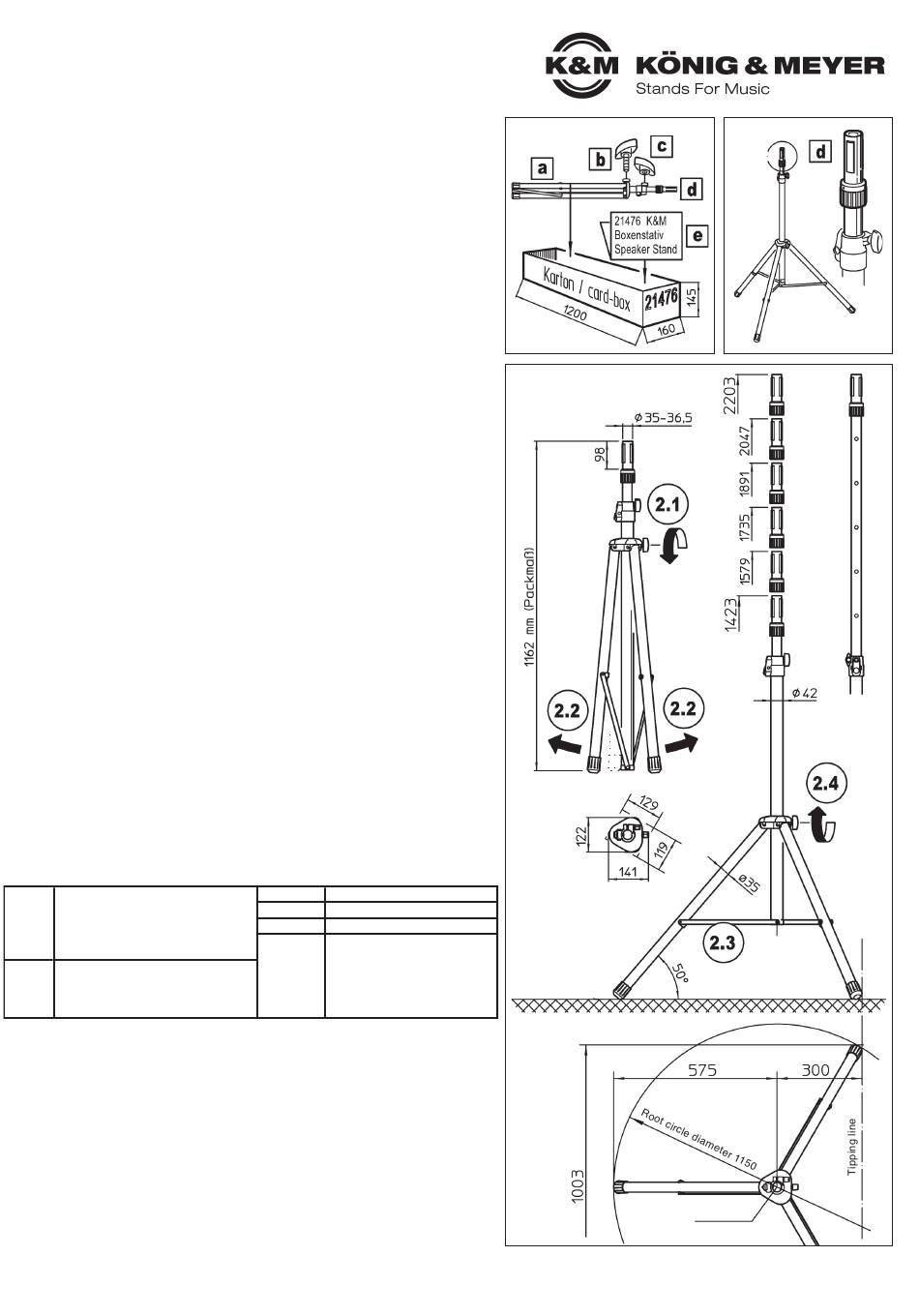

2. ASSEMBLY, DIMENSIONS
The 21471 stand is completely pre-assembled ex factory. For installation proceed as follows:
2.1 Loosen slightly the clamping screw b of the triangular clamp.
2.2 Preferably, pull the legs apart simultaneously until...
2.3 ...the connecting struts are horizontal (= maximum root diameter)
2.4 Tighten clamping screw b again – manual force is sufficient.
2.4 NOTE: Avoid overtightening - it strains the components.
* With centric loading, on a horizontal surface and without lateral forces (wind, shocks etc.)
Load max. 50 kg*
Pull-out expanding mandrel syst.: ø 35-36,5
Box 1200 x 145 x 60 mm
Carrying case 21311
Flange adapter (19654, 19656)
Accessories Mounting adapter (19580, 24281)
(optional) Warning strip 21402
Leveling leg 21445
Adapter Sleeve 21326: ø 38 mm
1. COMPONENTS
2. ASSEMBLY, DIMENSIONS
Top view
