LEVEL SWITCH 8110, hygienic versions

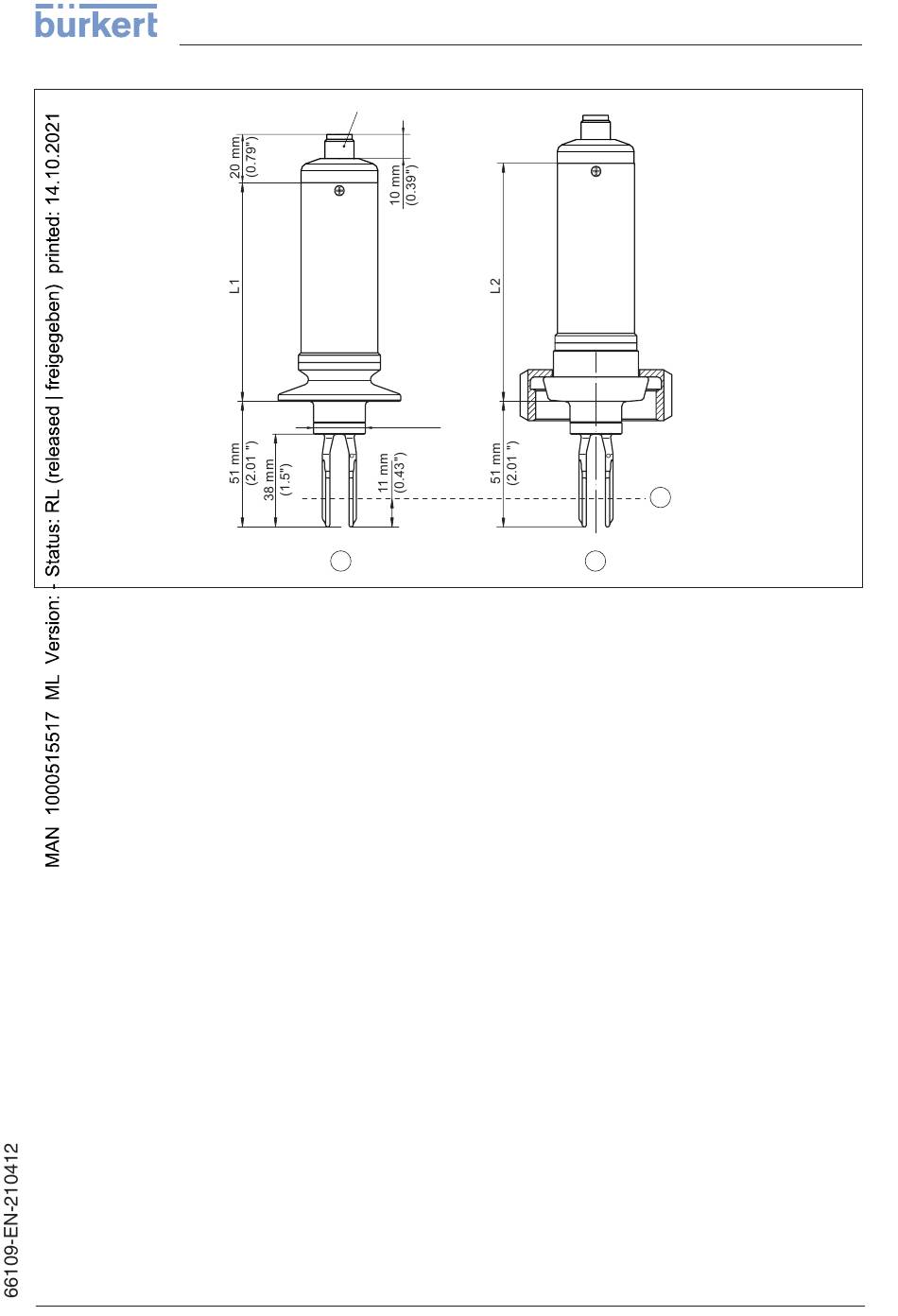

Fig. 14: LEVEL SWITCH 8110, hygienic versions - hygienic fittings
1 Clamp, M12 x 1 plug
2 Slotted nut, M12 x 1 plug
3 Switching point
L1 Length with Clamp
Clamp 1": 90 mm (3.54 in)
Clamp 1½": 90 mm (3.54 in)
Clamp 2": 89 mm (3.50 in)
L2 Length with slotted nut
DN25 PN40: 98 mm (3.86 in)
DN40 PN40: 103 mm (4.06 in)
DN50 PN25: 104 mm (4.09 in)
Keep in mind that the total length is extended by the plug connection.
3)
LEVEL SWITCH 8110 • IO-Link
M12 x 1
ø 21,3 mm
(0.84")
1
3)
9 Supplement
3
2
