Dimensioning

dimensioning
7.

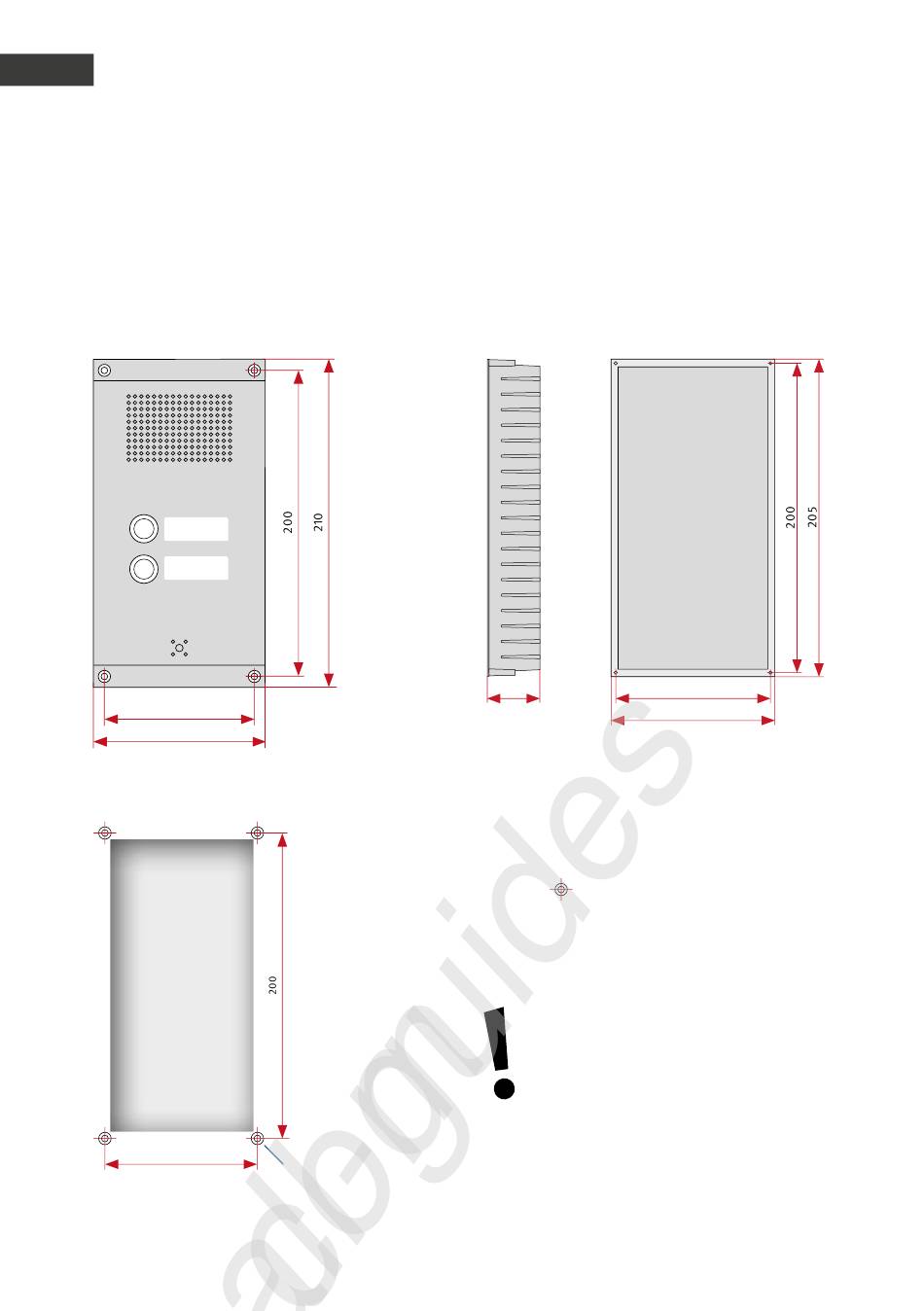

Flush and on-wall mounting
Front view
100
110
Mounting (without housing)
hollow
width 95 mm
height 190 mm
100
56
All manuals and user guides at all-guides.com
▸
Depth with electronics: ca. 30 mm
▸
We suggest a cavity of 43-53 mm deep (incl. space for wiring)
▸
Drilling with M3 screw thread=
M3
In-wall housing
Hollow: 100 x 200 mm
34
Dimensioning of series 10 Toscana and
Kayser available at:
www.behnke-online.de/bemassung
www.behnke-online.com
