COMMISSIONING

6 Commissioning
6.1

Sensing range setting

en
6.2

Switching behavior

28 O P E R A T I N G I N S T R U C T I O N S | PowerProx Micro - WTT2SL(C)
Q1

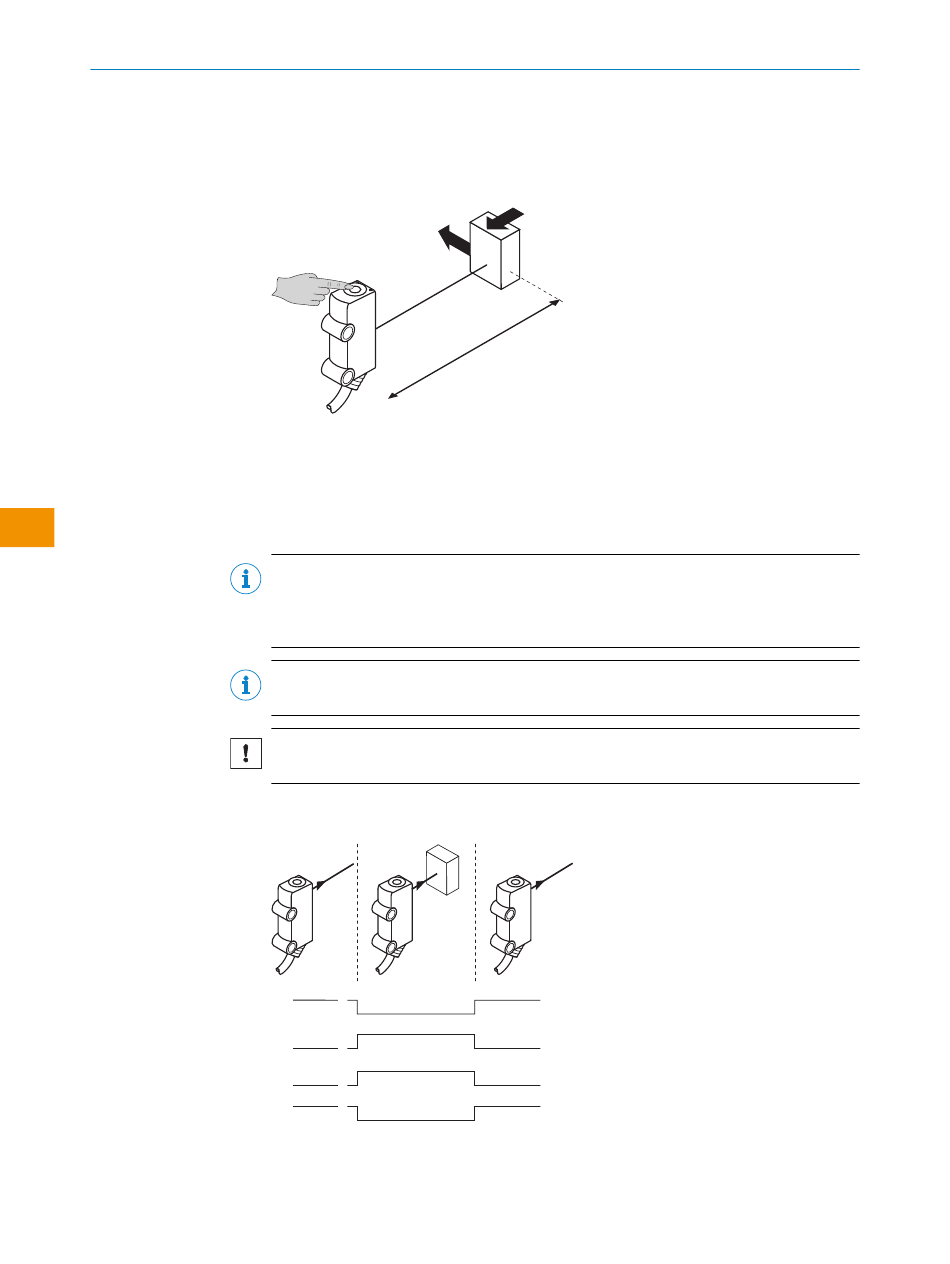

Figure 12: Sensing range setting
1 Position the object at the required distance and move it into the beam path of the
device (note the min. and max. ranges,
2 The sensing range is adjusted by pressing the single teach-in button (yellow LED
lights up).
NOTE
Note: The sensor automatically places the switching point in the object (teach-in offset
15 mm). Exception: When manually adjusting a mm value using an IO-Link, we recom‐
mend placing the switching point in the object.
NOTE
We recommend making the adjustments using an object with a low remission.
NOTICE
Do not operate the teach-in button using sharp objects.
PNP (ANT)
Q\ 1
0
1
Q 0
1
NPN (ANT)
Q\ 0
Q 1
0
Figure 13: Switching behavior
see figure 12, page 28).
