Mounting; Scope Of Delivery; Mounting Requirements; Mounting The Device - SICK PowerProx Micro Betriebsanleitung

4

Mounting

4.1

Scope of delivery

4.2

Mounting requirements

4.3

Mounting the device

8021879.1CXK /2021-09-20 | SICK
Subject to change without notice
Cable / Cable with M8 male connector
4
Single teach-in button for setting the sensing range
5
Optical axis, receiver
6
Optical axis, sender
7
• Photoelectric proximity sensor with time-of-flight technology in the version ordered
•
Set of screws
•
Quickstart
• Safety notes
• Typical space requirement for the device, see type-specific dimensional drawing,
see „Dimensional drawings", page
• Comply with technical data, such as the permitted ambient conditions for opera‐
tion of the device
L

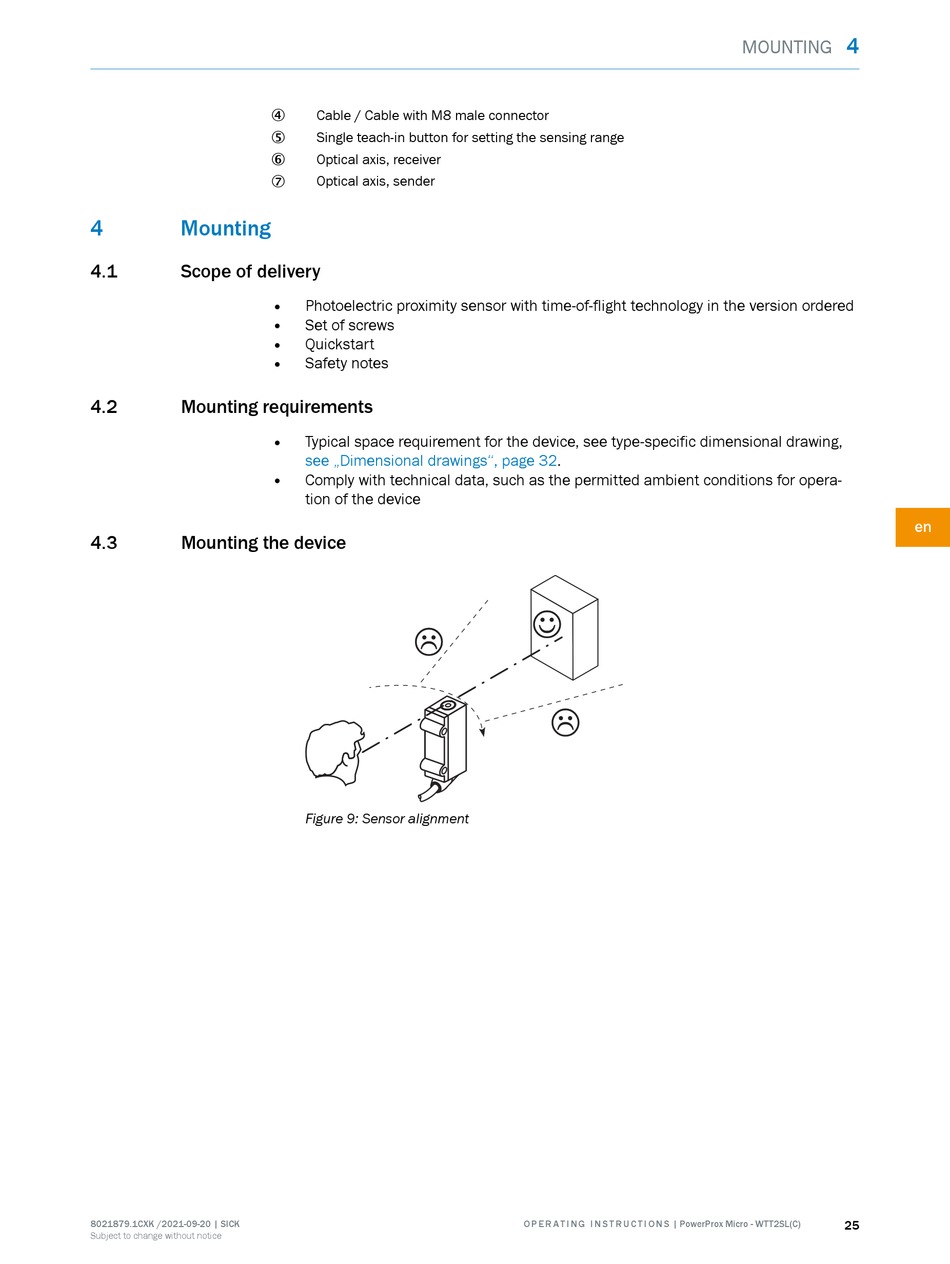

Figure 9: Sensor alignment
