7

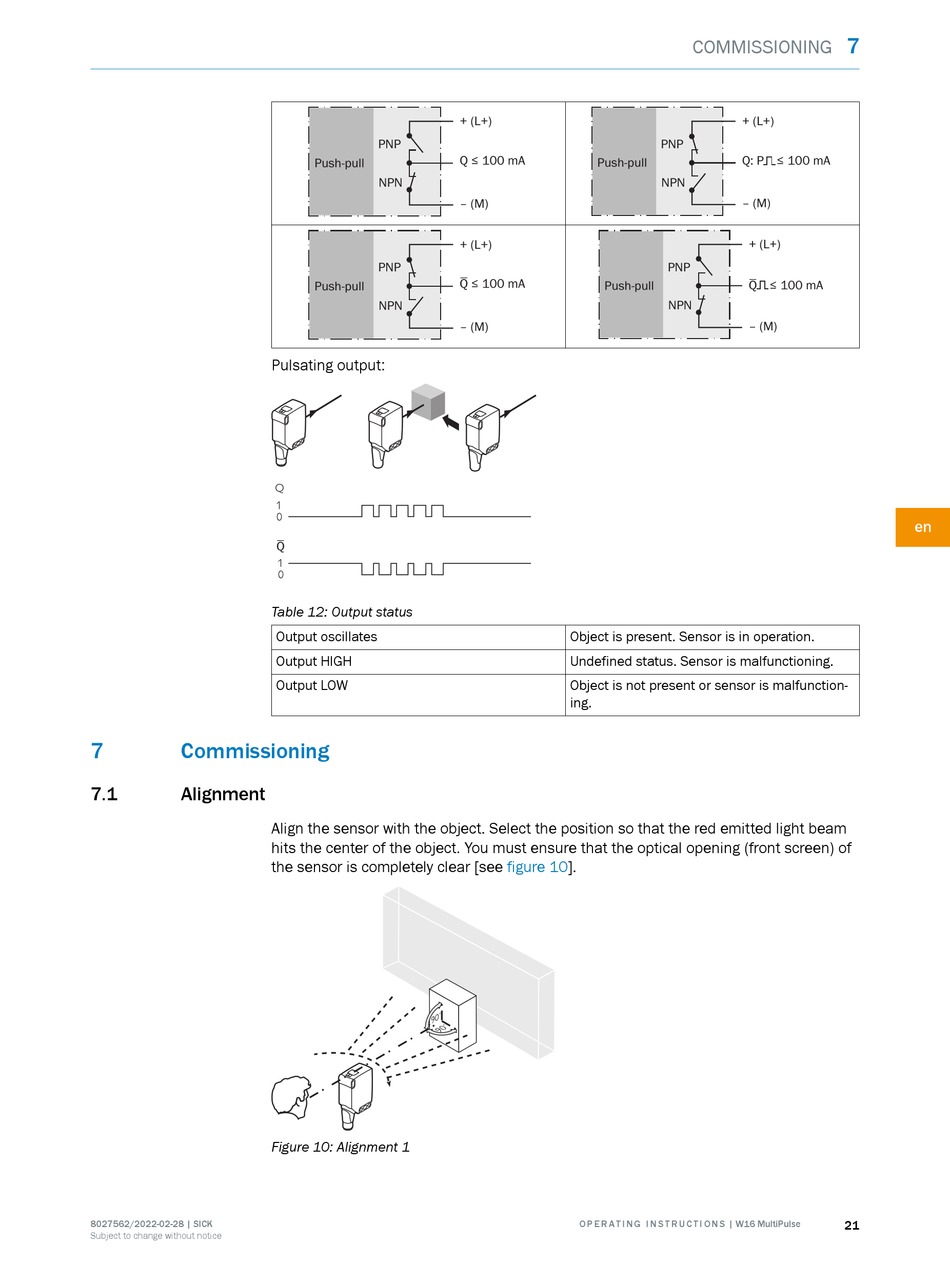

Commissioning

7.1

Alignment

8027562/2022-02-28 | SICK
Subject to change without notice
PNP
Push-pull
NPN
PNP
Push-pull
NPN
Pulsating output:
Q
Table 12: Output status
Output oscillates
Output HIGH
Output LOW
Align the sensor with the object. Select the position so that the red emitted light beam
hits the center of the object. You must ensure that the optical opening (front screen) of
the sensor is completely clear [see
Figure 10: Alignment 1
+ (L+)
Q ≤ 100 mA
Push-pull
‒ (M)
+ (L+)
Q ≤ 100 mA
Push-pull
‒ (M)
Object is present. Sensor is in operation.
Undefined status. Sensor is malfunctioning.
Object is not present or sensor is malfunction‐
ing.
figure 10].
O P E R A T I N G I N S T R U C T I O N S | W16 MultiPulse
COMMISSIONING
+ (L+)
PNP
Q: P ≤ 100 mA
NPN
‒ (M)
+ (L+)
PNP
Q ≤ 100 mA
NPN
‒ (M)
7
