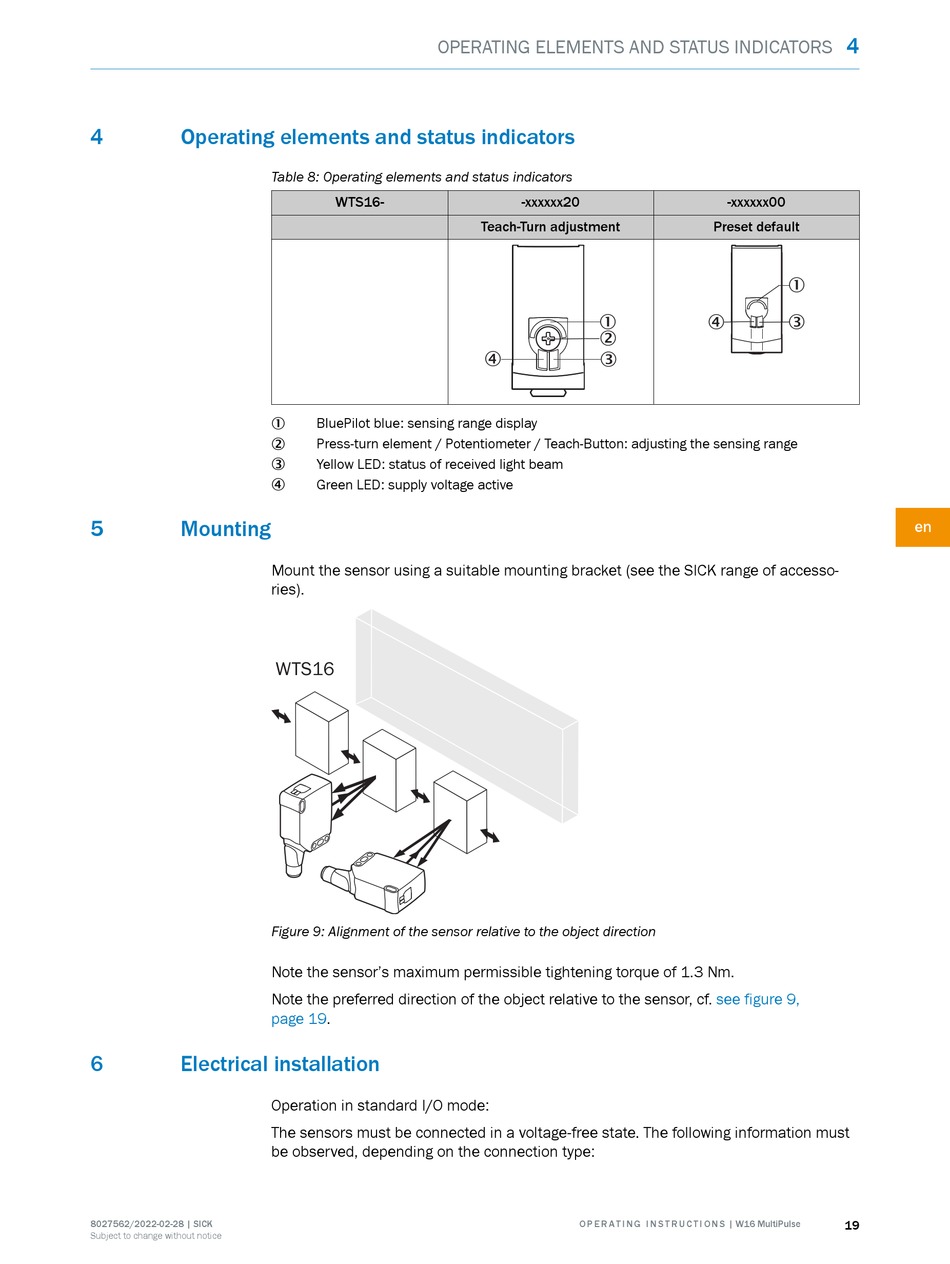

OPERATING ELEMENTS AND STATUS INDICATORS
Table 8: Operating elements and status indicators
WTS16-
BluePilot blue: sensing range display
1
Press-turn element / Potentiometer / Teach-Button: adjusting the sensing range
2
Yellow LED: status of received light beam
3
Green LED: supply voltage active
4
Mount the sensor using a suitable mounting bracket (see the SICK range of accesso‐
ries).
WTS16
Figure 9: Alignment of the sensor relative to the object direction
Note the sensor's maximum permissible tightening torque of 1.3 Nm.
Note the preferred direction of the object relative to the sensor, cf.
page 19.
Operation in standard I/O mode:
The sensors must be connected in a voltage-free state. The following information must
be observed, depending on the connection type:
-xxxxxx20
Teach-Turn adjustment
1
2
4 3
O P E R A T I N G I N S T R U C T I O N S | W16 MultiPulse
4
-xxxxxx00
Preset default
1
4 3
see figure 9,
19
