FEATURES
10 W 5-in-1 RGBWA LEDs. Protection class IP65. 3-pin IP65 DMX connections. True 1 compatible
power connections IN and OUT. OLED display. Flicker-free operation through adjustable PWM fre-
quency. Silent due to convection cooling. Operating voltage 100–240 V AC. The spotlights feature
the RDM standard (remote device management). This remote device management allows the user
to view the status and configuration of RDM end devices via an RDM-capable controller.

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

11
The models CLPFLATPRO7G2, CLPFLATPRO12G2 and CLPFLATPRO18G2 have identical connections,
POWER IN
1
TRUE 1-compatible power input socket. Operating voltage 100–240 V AC/50–60 Hz. A suitable
mains cable with IP65 plug is included. When not in use, always close with the appropriate rubber
sealing cap.
POWER OUT
2
TRUE 1-compatible mains output socket for supplying power to additional Cameo spotlights (for
maximum output current, see label on back of housing). When not in use, always close with the
appropriate rubber sealing cap.
10
5
8
1

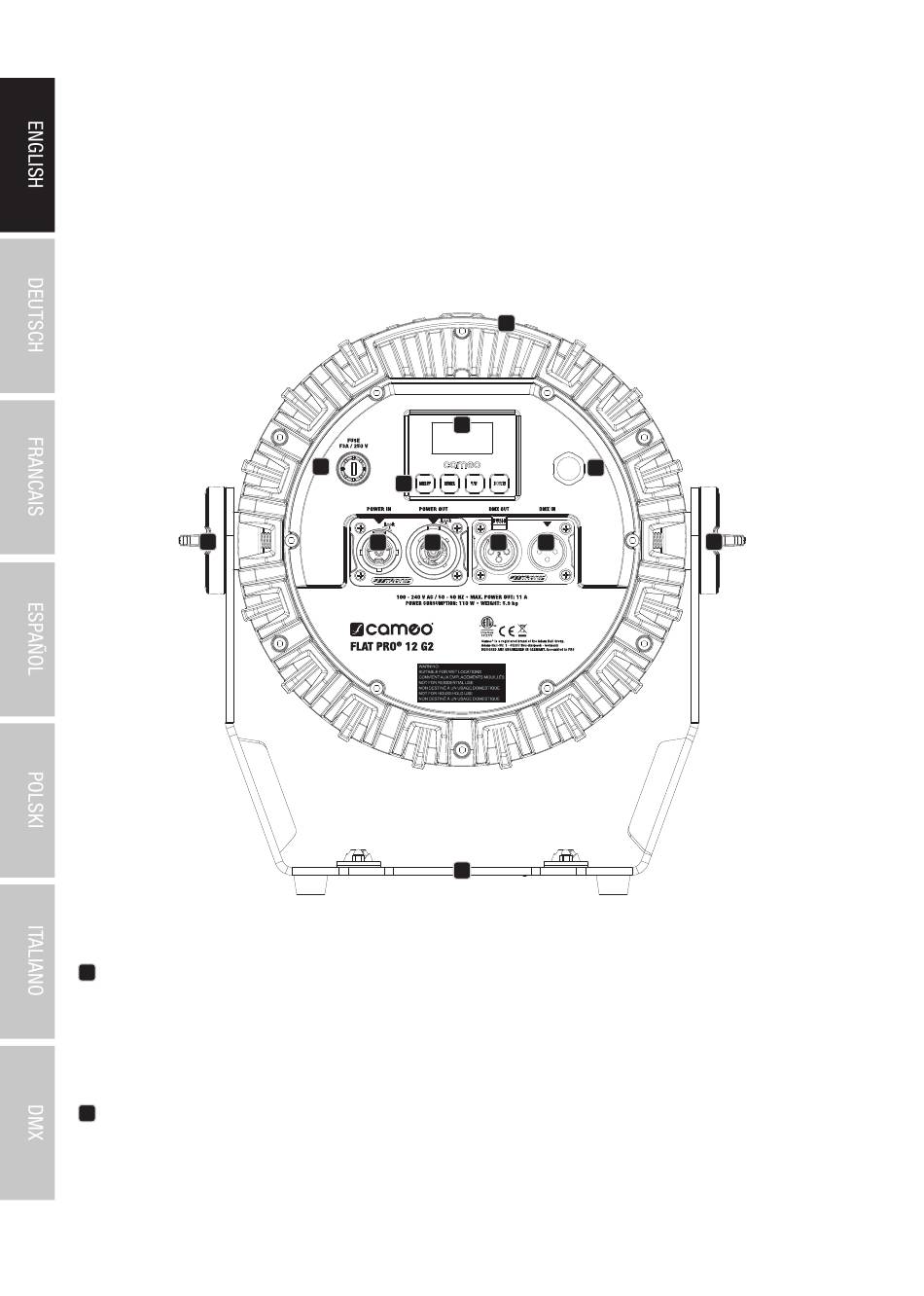

Operating and display elements, the position of the connections varies slightly.
