VWU 65 - VWU 80
4

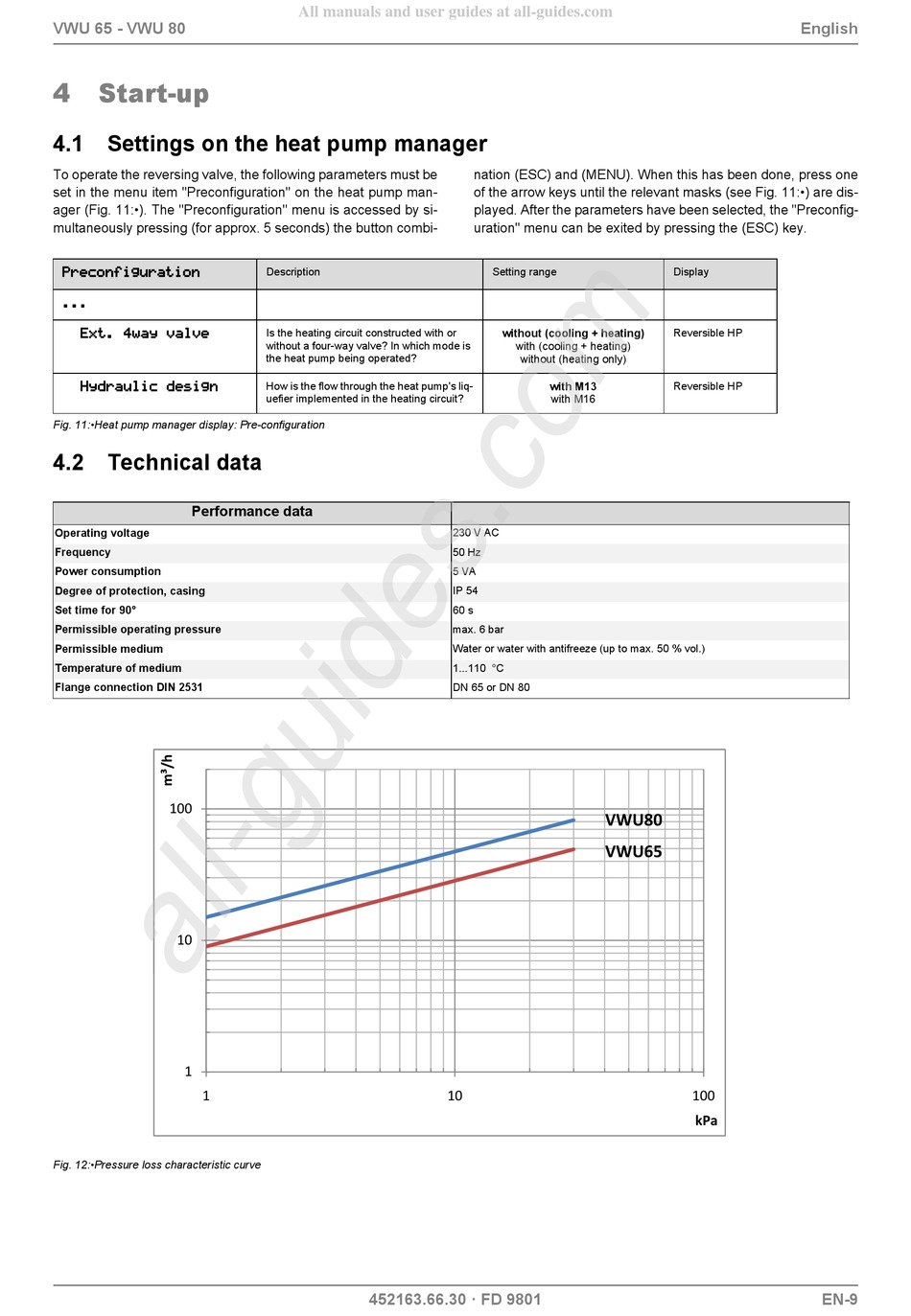

Start-up

4.1 Settings on the heat pump manager

To operate the reversing valve, the following parameters must be
set in the menu item "Preconfiguration" on the heat pump man-
ager (Fig. 11:•). The "Preconfiguration" menu is accessed by si-
multaneously pressing (for approx. 5 seconds) the button combi-




Fig. 11:•Heat pump manager display: Pre-configuration

4.2 Technical data

Performance data
Operating voltage
Frequency
Power consumption
Degree of protection, casing
Set time for 90°
Permissible operating pressure
Permissible medium
Temperature of medium
Flange connection DIN 2531
Fig. 12:•Pressure loss characteristic curve
All manuals and user guides at all-guides.com
Description
Is the heating circuit constructed with or
without a four-way valve? In which mode is
the heat pump being operated?
How is the flow through the heat pump's liq-
uefier implemented in the heating circuit?
452163.66.30 · FD 9801
nation (ESC) and (MENU). When this has been done, press one
of the arrow keys until the relevant masks (see Fig. 11:•) are dis-
played. After the parameters have been selected, the "Preconfig-
uration" menu can be exited by pressing the (ESC) key.
Setting range
without (cooling + heating)
with (cooling + heating)
without (heating only)
with M13
with M16
230 V AC
50 Hz
5 VA
IP 54
60 s
max. 6 bar
Water or water with antifreeze (up to max. 50 % vol.)
1...110 °C
DN 65 or DN 80
sth sth
sth sth
English
Display
Reversible HP
Reversible HP
W
EN-9
