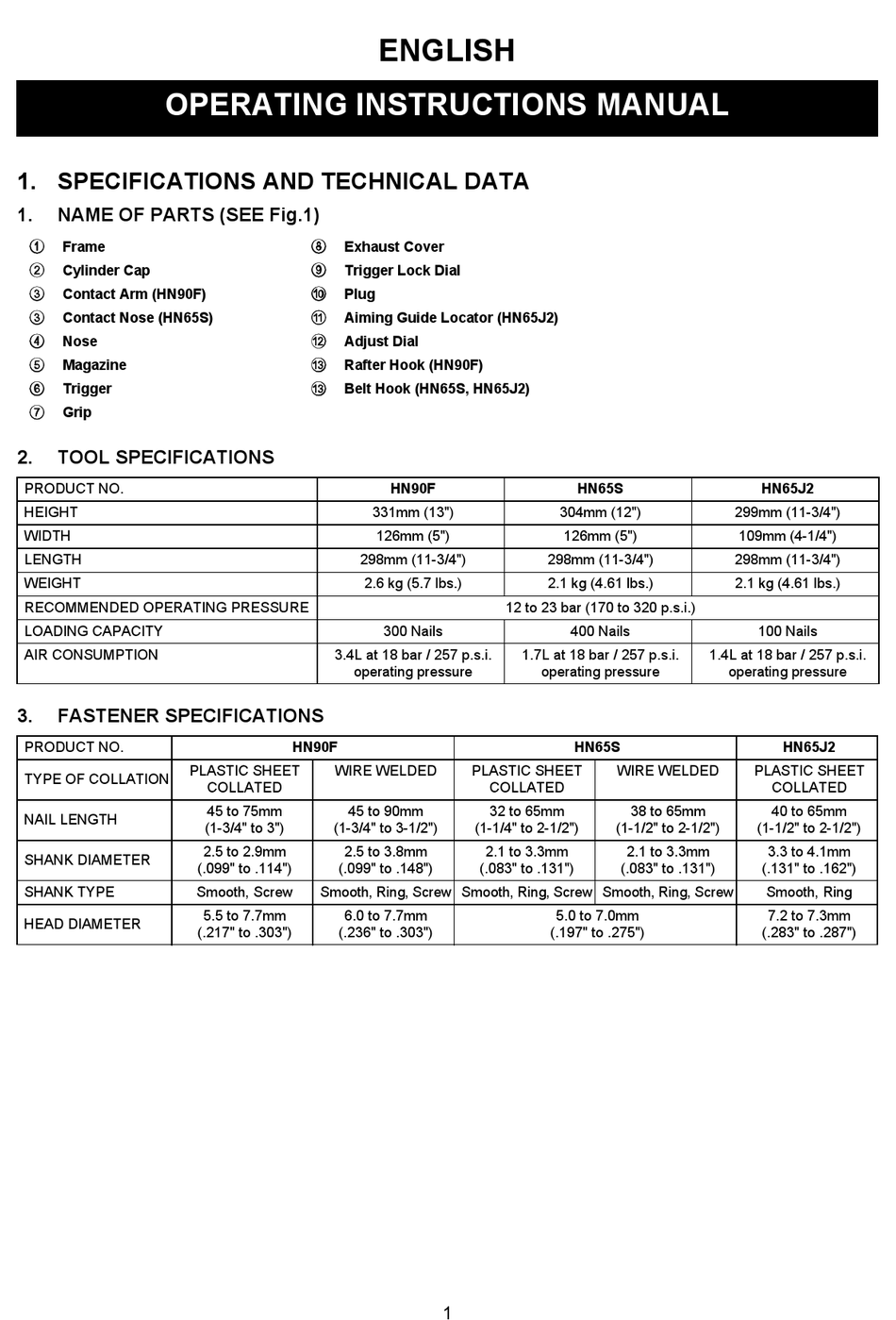

OPERATING INSTRUCTIONS MANUAL

1. SPECIFICATIONS AND TECHNICAL DATA

1. NAME OF PARTS (SEE Fig.1)
1 Frame
2 Cylinder Cap
3 Contact Arm (HN90F)
3 Contact Nose (HN65S)
4 Nose
5 Magazine
6 Trigger
7 Grip
2.

TOOL SPECIFICATIONS

PRODUCT NO.
HEIGHT
WIDTH
LENGTH
WEIGHT
RECOMMENDED OPERATING PRESSURE
LOADING CAPACITY
AIR CONSUMPTION
3.

FASTENER SPECIFICATIONS

PRODUCT NO.
TYPE OF COLLATION
NAIL LENGTH
SHANK DIAMETER
SHANK TYPE
HEAD DIAMETER
8 Exhaust Cover
9 Trigger Lock Dial
0 Plug
a Aiming Guide Locator (HN65J2)
b Adjust Dial
c Rafter Hook (HN90F)
c Belt Hook (HN65S, HN65J2)
3.4L at 18 bar / 257 p.s.i.
operating pressure
HN90F
PLASTIC SHEET WIRE WELDED
COLLATED
45 to 75mm 45 to 90mm
(1-3/4" to 3") (1-3/4" to 3-1/2")
2.5 to 2.9mm 2.5 to 3.8mm
(.099" to .114") (.099" to .148")
Smooth, Screw Smooth, Ring, Screw Smooth, Ring, Screw Smooth, Ring, Screw
5.5 to 7.7mm 6.0 to 7.7mm
(.217" to .303") (.236" to .303")
ENGLISH
HN90F
331mm (13")
126mm (5")
298mm (11-3/4")
2.6 kg (5.7 lbs.)
12 to 23 bar (170 to 320 p.s.i.)
300 Nails
1.7L at 18 bar / 257 p.s.i.
PLASTIC SHEET
COLLATED
32 to 65mm
(1-1/4" to 2-1/2")
2.1 to 3.3mm
(.083" to .131")
1
HN65S
304mm (12")
126mm (5")
298mm (11-3/4")
2.1 kg (4.61 lbs.)
400 Nails
1.4L at 18 bar / 257 p.s.i.
operating pressure
HN65S
WIRE WELDED
38 to 65mm
(1-1/2" to 2-1/2")
2.1 to 3.3mm
(.083" to .131")
5.0 to 7.0mm
(.197" to .275")
HN65J2
299mm (11-3/4")
109mm (4-1/4")
298mm (11-3/4")
2.1 kg (4.61 lbs.)
100 Nails
operating pressure
HN65J2
PLASTIC SHEET
COLLATED
40 to 65mm
(1-1/2" to 2-1/2")
3.3 to 4.1mm
(.131" to .162")
Smooth, Ring
7.2 to 7.3mm
(.283" to .287")
