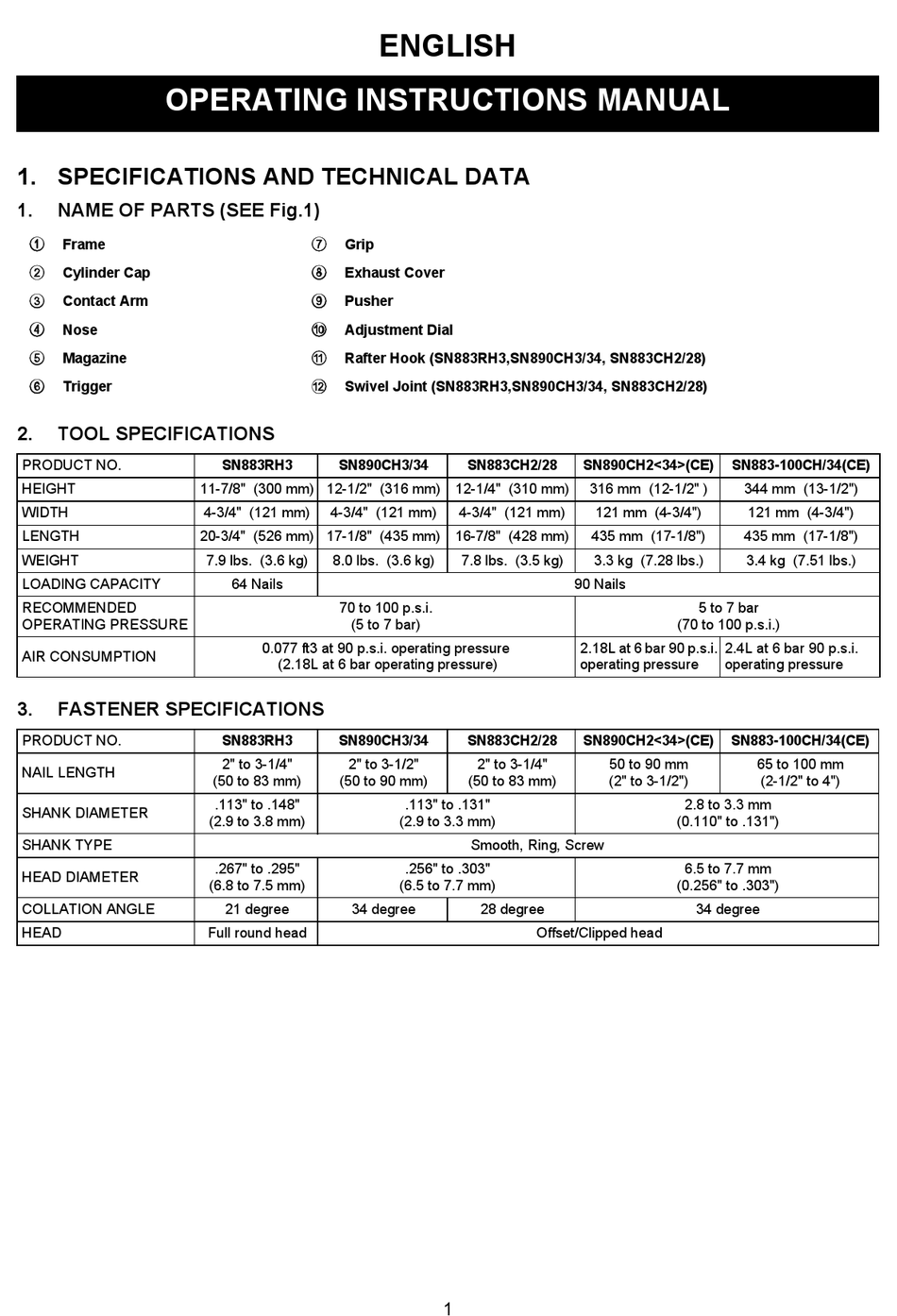

OPERATING INSTRUCTIONS MANUAL

1. SPECIFICATIONS AND TECHNICAL DATA

1. NAME OF PARTS (SEE Fig.1)
Frame
1
Cylinder Cap
2
Contact Arm
3
Nose
4
Magazine
5
Trigger
6
2.

TOOL SPECIFICATIONS

PRODUCT NO.
HEIGHT
WIDTH
LENGTH
WEIGHT
LOADING CAPACITY
RECOMMENDED
OPERATING PRESSURE
AIR CONSUMPTION
3.

FASTENER SPECIFICATIONS

PRODUCT NO.
NAIL LENGTH
SHANK DIAMETER
SHANK TYPE
HEAD DIAMETER
COLLATION ANGLE
HEAD
Grip
7
Exhaust Cover
8
Pusher
9
Adjustment Dial
0
Rafter Hook (SN883RH3,SN890CH3/34, SN883CH2/28)
a
Swivel Joint (SN883RH3,SN890CH3/34, SN883CH2/28)
b
SN883RH3 SN890CH3/34
11-7/8" (300 mm) 12-1/2" (316 mm) 12-1/4" (310 mm)
4-3/4" (121 mm) 4-3/4" (121 mm)
20-3/4" (526 mm) 17-1/8" (435 mm) 16-7/8" (428 mm)
7.9 lbs. (3.6 kg) 8.0 lbs. (3.6 kg)
64 Nails
70 to 100 p.s.i.
(5 to 7 bar)
0.077 ft3 at 90 p.s.i. operating pressure
(2.18L at 6 bar operating pressure)
SN883RH3 SN890CH3/34
2" to 3-1/4" 2" to 3-1/2"
(50 to 83 mm) (50 to 90 mm)
.113" to .148"
(2.9 to 3.8 mm)
.267" to .295"
(6.8 to 7.5 mm)
21 degree 34 degree
Full round head
ENGLISH
SN883CH2/28
4-3/4" (121 mm)
7.8 lbs. (3.5 kg)
SN883CH2/28
2" to 3-1/4"
(50 to 83 mm)
.113" to .131"
(2.9 to 3.3 mm)
Smooth, Ring, Screw
.256" to .303"
(6.5 to 7.7 mm)
28 degree
Offset/Clipped head
1
SN890CH2<34>(CE) SN883-100CH/34(CE)
316 mm (12-1/2" ) 344 mm (13-1/2")
121 mm (4-3/4")
435 mm (17-1/8") 435 mm (17-1/8")
3.3 kg (7.28 lbs.)
90 Nails
5 to 7 bar
(70 to 100 p.s.i.)
2.18L at 6 bar 90 p.s.i. 2.4L at 6 bar 90 p.s.i.
operating pressure operating pressure
SN890CH2<34>(CE) SN883-100CH/34(CE)
50 to 90 mm
(2" to 3-1/2")
2.8 to 3.3 mm
(0.110" to .131")
6.5 to 7.7 mm
(0.256" to .303")
34 degree
121 mm (4-3/4")
3.4 kg (7.51 lbs.)
65 to 100 mm
(2-1/2" to 4")
