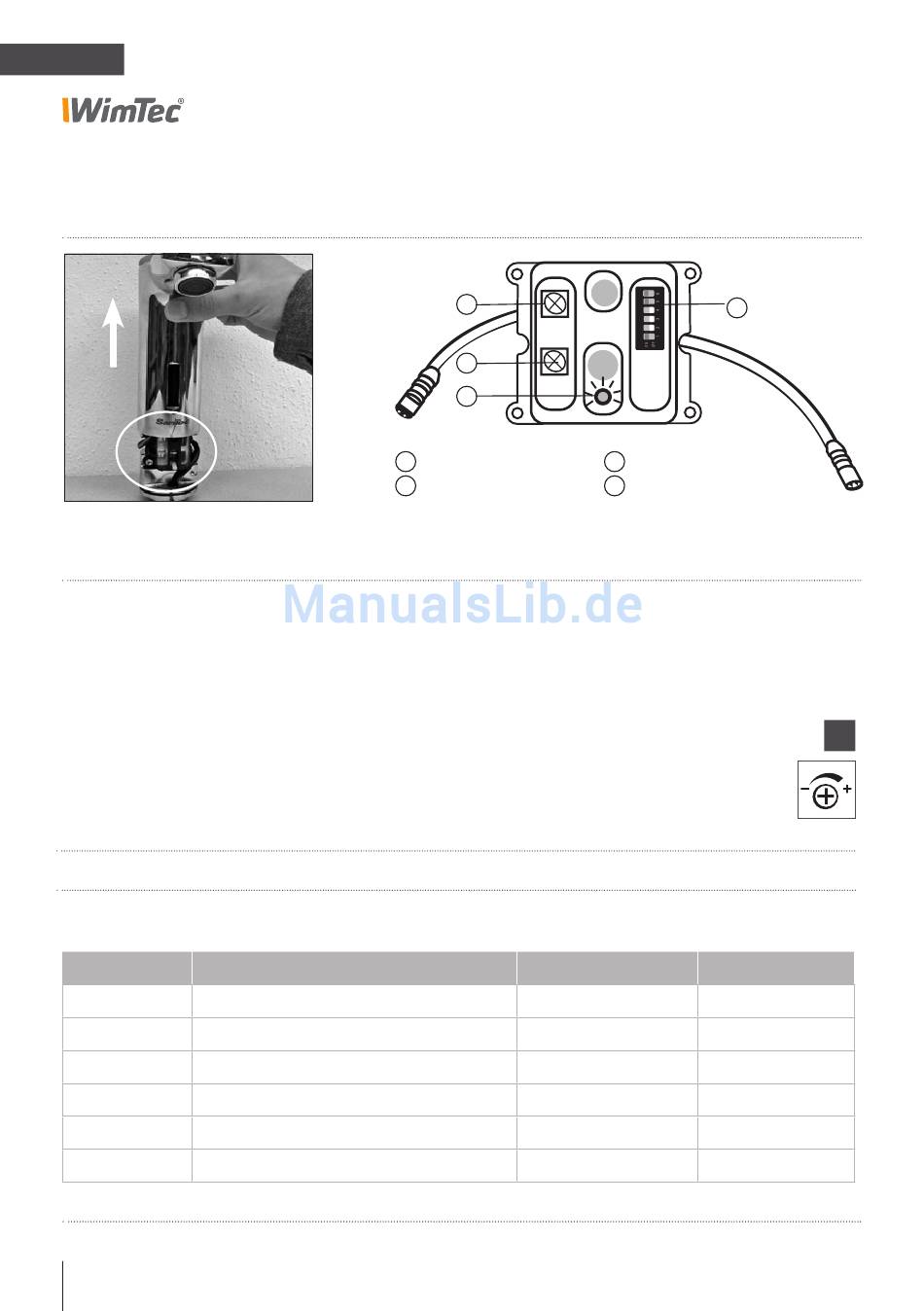

Configuring the functions

Regulator controls:
1. Interval control
for stagnation rinse, default
setting 24 h (setting range
3–48 h).
4. DIP switches:
Function activation – DIP switch 1–6:
DIP switch Function
1
Range
2 Cleaning stop
3 Continuous flow
4 Stagnation rinse
5 Stagnation rinse time
6 Shut-off delay
14 Washbasin fitting
1
Interval control
2
Time control
2. Time control
for water arrest, default set-
ting 1 min (setting range 30 s
to 10 min).
Move counterclockwise to decrease the setting.
WimTec SMART
1
2
3
3
Status LED
4
DIP switches
3. Status LED
Details see page 20.
Rule applies to all controls:
Move clockwise to increase the setting.
Factory setting
ON
OFF
OFF
OFF
OFF
OFF
4
!
Description
Page 17
Page 17
Page 18
Page 19
Page 19
Page 20
