Replacement Parts - WimTec Smart Betriebsanleitung

SMART

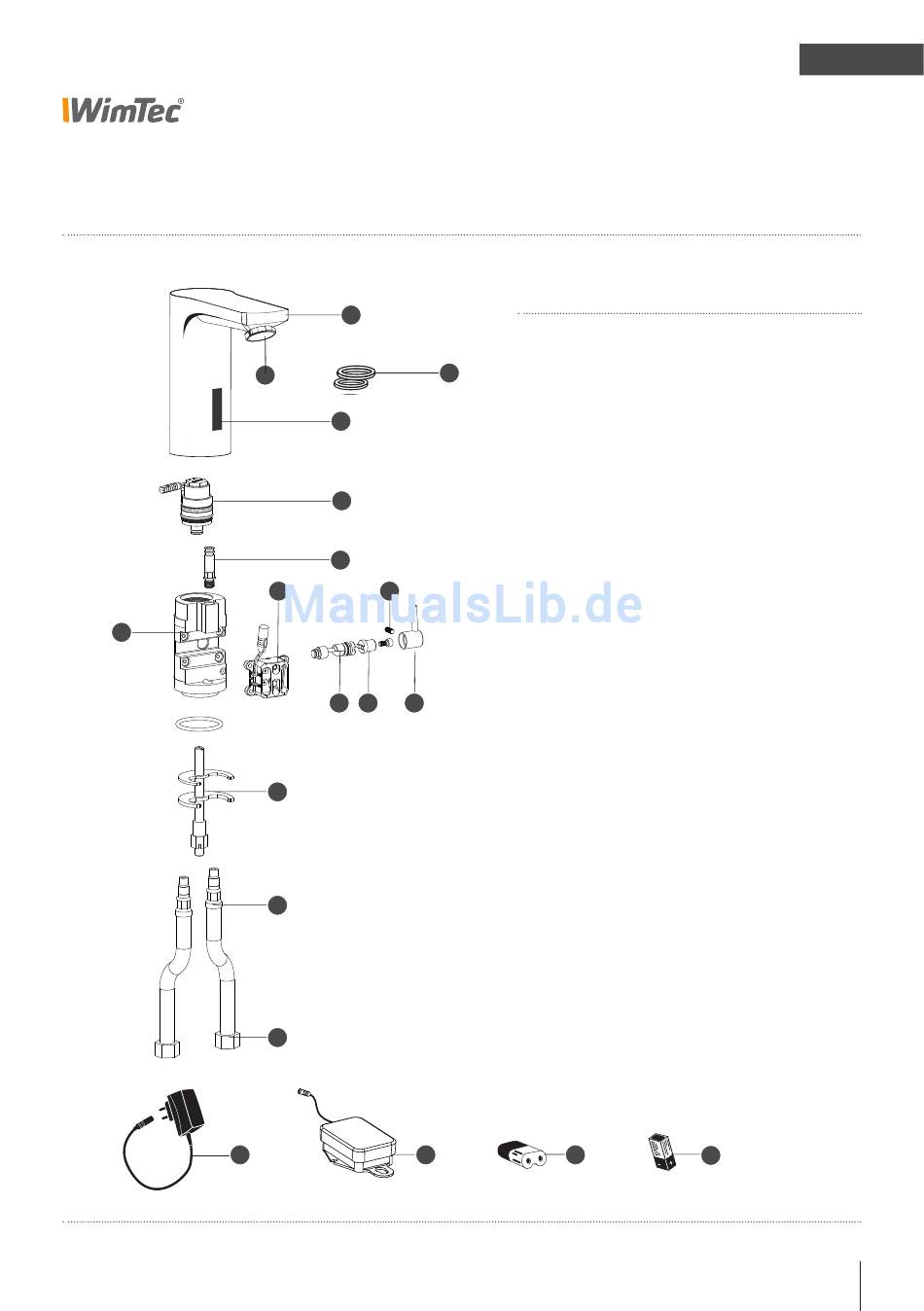

Replacement parts

7
16
1
4
3
5
6
8 9
10 11 12
13
14
15
17
No. Designation
1
Upper fitting incl. viewing
panel & stream regulator
2
Mixed water
Cold water
2
O-ring set
3
Viewing panel
4
Stream regulator
5
Magnetic valve 6 V
6
Connection pipe
7
Fitting base part
Mixed water
Cold water
8
Elektronics module
9
Countersink screw
10
Mixing shaft
11
Adapter
12
Mischer lever
13
Mounting set
14
Connection tubing
350 mm long
500 mm long
15
Return flow valve
incl. pre-filter
16
Power supply 230 V
17
Battery module
incl. 9 V battery
incl. 6 V battery
18
6 V lithium battery
19
9 V alkaline battery
18
Washbasin fitting
EN
Art.no.:
109 092
109 269
109 108
109 047
109 054
231 205
109 061
109 122
109 221
108 873
109 115
109 139
109 146
109 160
109 160
230 291
230 307
230 314
101 065
231 380
230 987
230 741
230 086
19
WimTec SMART
