Safety Marking - probst VPH-150-GREENLINE Betriebsanleitung

Safety
2.4

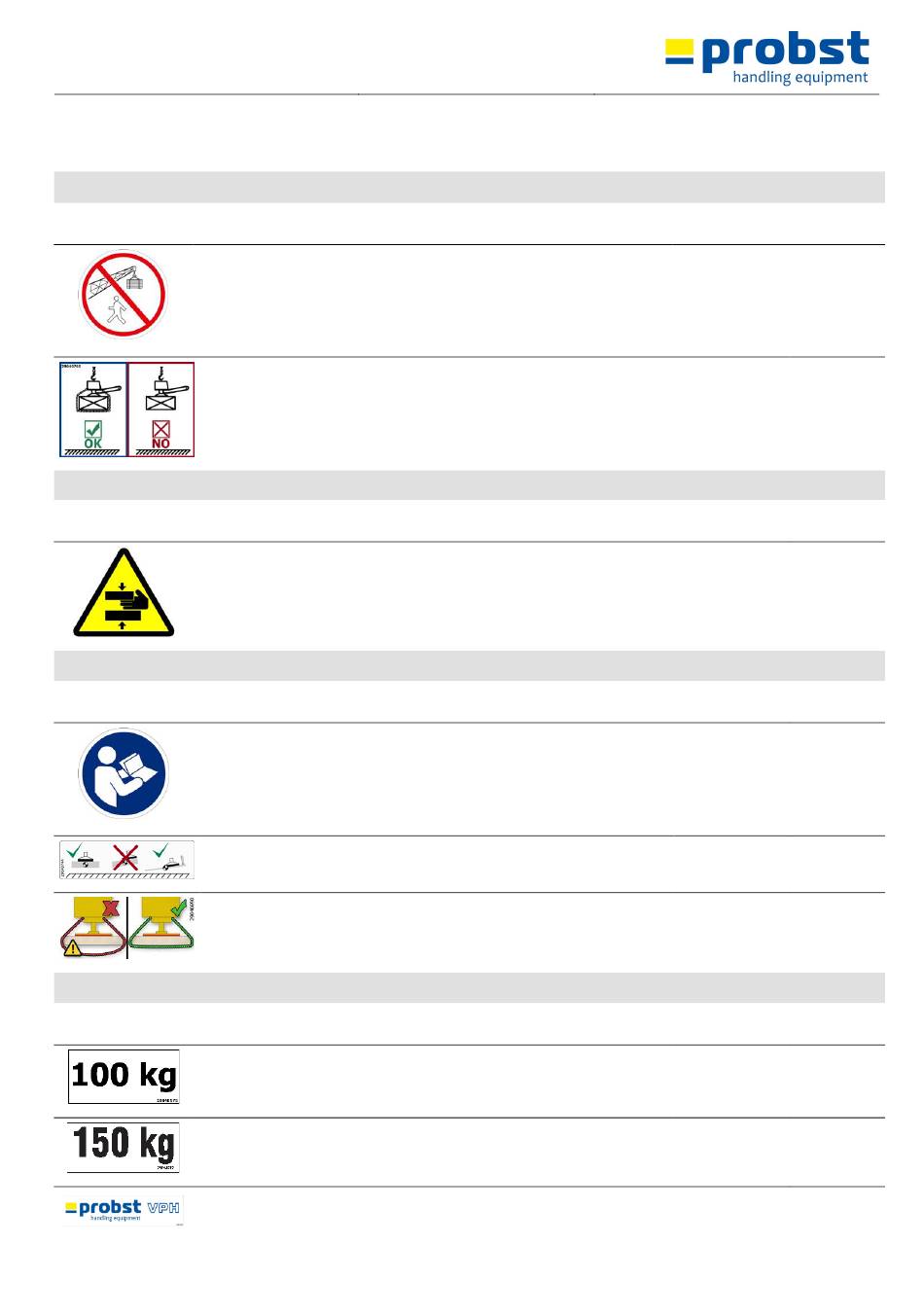

Safety Marking

PROHIBITION SIGN
Symbol Meaning
It is not allowed to stand under hanging loads. Danger to life!
The sucked load must never be lifted and transported without
additional securing by the load-securing-chain.
WARNING SIGN
Symbol Meaning
Danger of squeezing the hands.
REGULATORY SIGN
Symbol Meaning
Each operator must have read and understood the operating
instructions (and all safety instructions).
Loads have to be sucked in centered. With a suitable device (height
adjustable stop) loads can also be sucked in eccentrically.
Load-securing-chains has to fit tightly to the load.
Load-securing-chains should never hang loosely under the load!
OPERATING INFORMATIONS
Symbol Meaning
Maximum working load limit of the suction plate (VPH-100)
Maximum working load limit of the suction plate (VPH-150)
Label with device title
52710008/52710009
6 / 24
V7
Order-No. Size
29040210 Ø 30 mm
29040209 Ø 50 mm
29040204 Ø 80 mm
2904.0765 100 x 70 mm
Order-No. Size
29040221 30 x 30 mm
29040220 50 x 50 mm
29040107 80 x 80 mm
Order-No. Size
29040665 Ø 30 mm
29040666 Ø 50 mm
2904.0744 107 x 32 mm
2904.0690 25 x 55 mm
2904.0689 70 x 41 mm
2904.0688 146 x 85
mm
Order-No. Size
2904.0575 80 x 40 mm
2904.0207 80 x 35 mm
200 x 50
2904.0129
mm
GB
