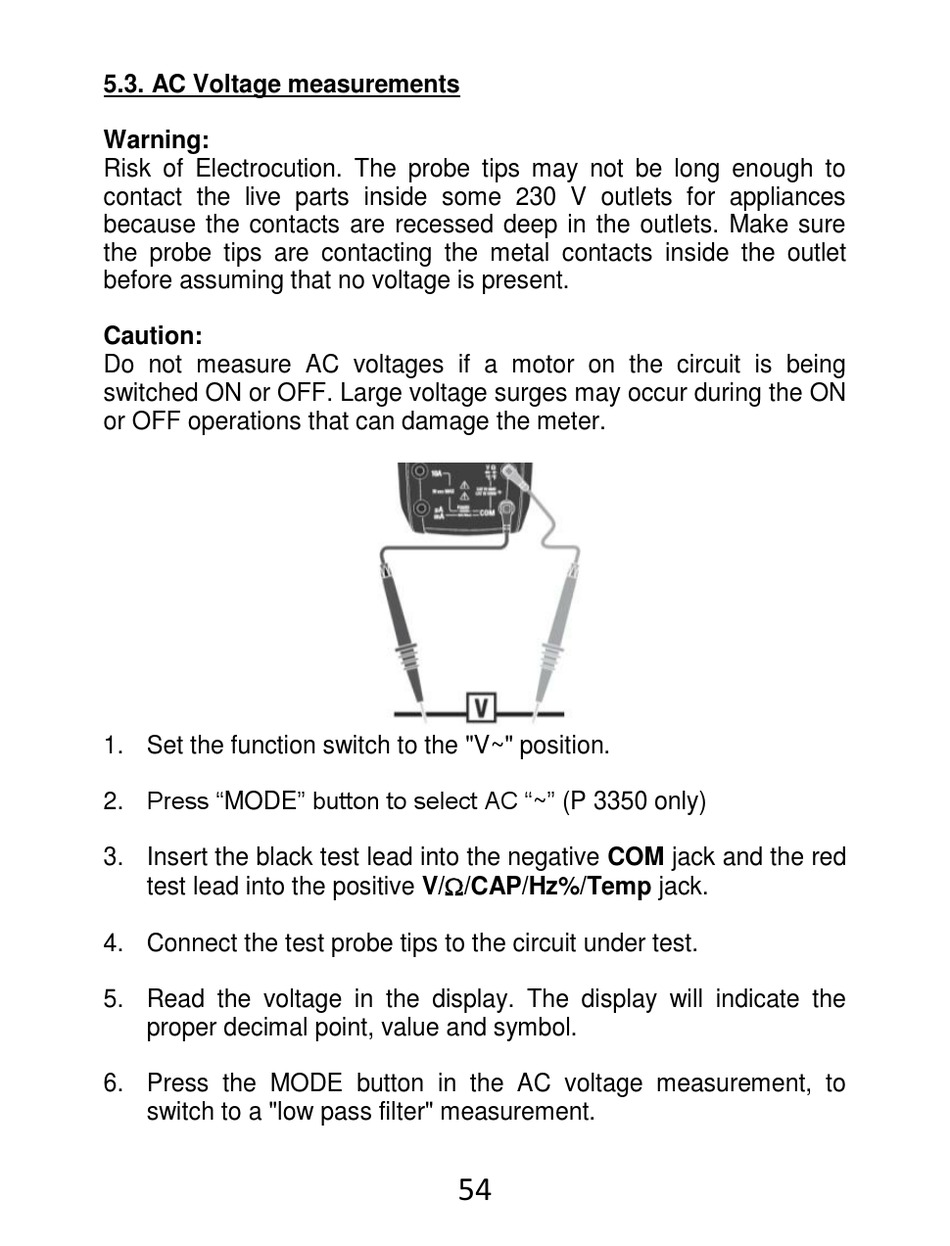

5.3. AC Voltage measurements
Warning:
Risk of Electrocution. The probe tips may not be long enough to
contact the live parts inside some 230 V outlets for appliances
because the contacts are recessed deep in the outlets. Make sure
the probe tips are contacting the metal contacts inside the outlet
before assuming that no voltage is present.
Caution:
Do not measure AC voltages if a motor on the circuit is being
switched ON or OFF. Large voltage surges may occur during the ON
or OFF operations that can damage the meter.
1. Set the function switch to the "V~" position.
2. Press "MODE" button to select AC "~" (P 3350 only)
3. Insert the black test lead into the negative COM jack and the red
test lead into the positive V//CAP/Hz%/Temp jack.
4. Connect the test probe tips to the circuit under test.
5. Read the voltage in the display. The display will indicate the
proper decimal point, value and symbol.
6. Press the MODE button in the AC voltage measurement, to
switch to a "low pass filter" measurement.
