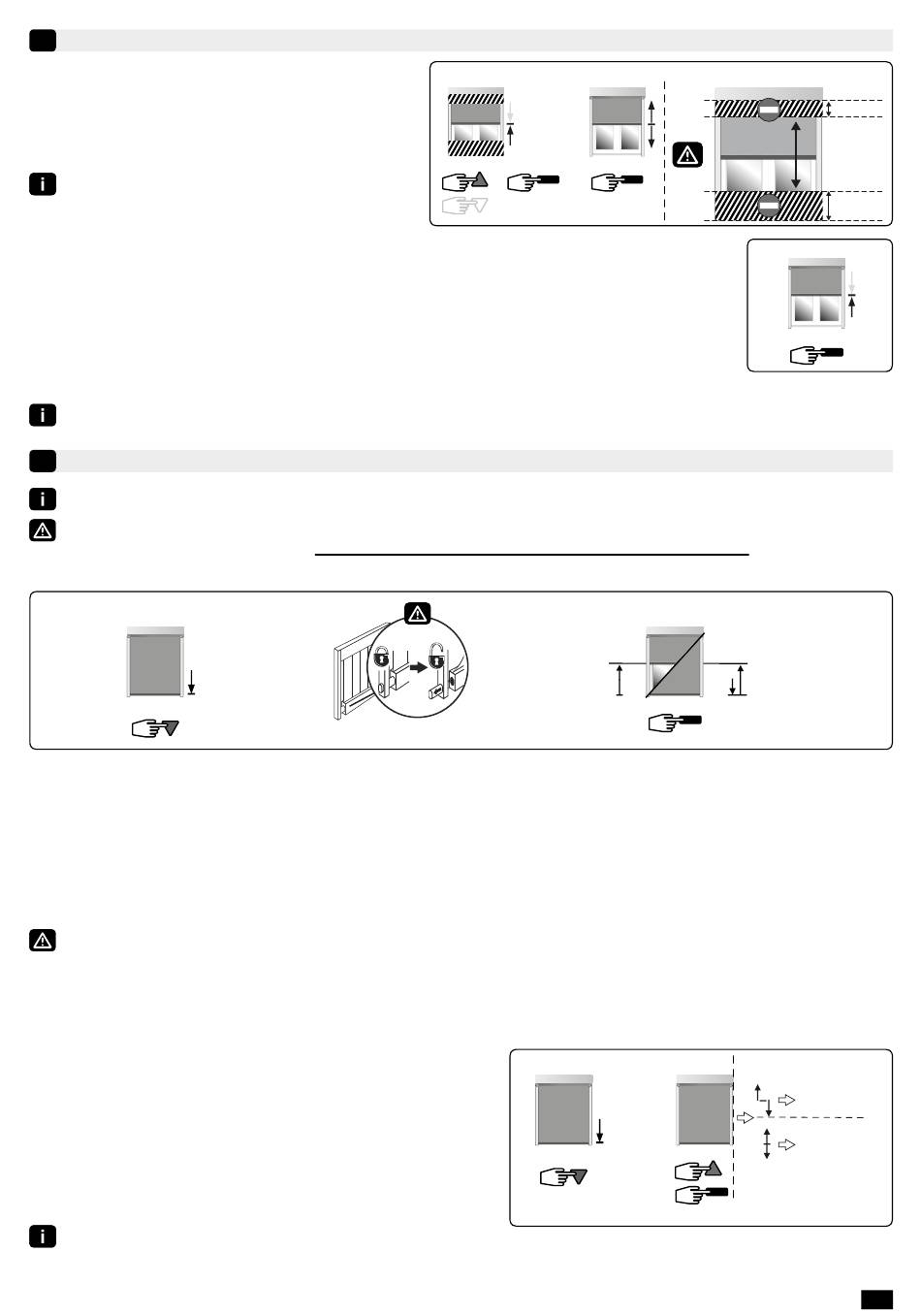

RECORDING / CONTROLLING / DELETING AN INTERMEDIATE POSITION (IP)
10
Recording:
1- Run the product to the desired position.
2- Press 5 s on the "STOP" button until the
motor jogs.
The intermediate position should not be
recorded less than 2 s of running from Up
end limit and less than 4 s from down end
limit.
Controling:
- When the product is already stopped press on the "STOP" button for 0.5 s. The
product will run to the intermediate position.
Deleting :
- Run the product to the intermediate position. Then press for 5 s on the "STOP" button.
The intermediate position is deleted.
When using locks (manuals or automatics), it is not possible to delete the intermediate position.
FUNCTION «MANUAL LOCKS »
11
The fabric can be drawn taut when the product, equipped with manual locks, is at the lower end limit.
Always check to determine whether or not the function is activated/deactivated before locking the
locks and using the function. Failing to do so may lead to damage of the product.
To check whether or not the function is activated:
1
1 - Press the « DOWN » button : the product will run to the down end limit.
2 - The latches must be unlocked, then press the « STOP » button:
- If the product goes to the intermediate position, the fabric tensioning function is not activated.
- If the product briefly lowers then raises to intermerdiate position, the fabric tensioning function is
activated.
To activate or deactivate this function, the procedure is the same:
For safety reasons, this function can only be accessed via the individual control point in
2 situations:
- After programming the first control and during the next 4 cycles.
- After a single power outage and during the next 4 cycles.
1 - Press the « DOWN » button : the product will run to
the Down end limit.
2 - Press simultaneously the "STOP" and "UP" buttons
for 5 s, until the motor jogs:
- If the function was deactivated, it is now activated.
- If the function was activated, it is now deactivated.
This function is deactivated by default.
1
+
2
X OK
OK
>>>>>
2
IP OK
5 s
IP(§10) IP(§10)
X
>>
OK<< <<
< 1 s
1 2
5 s
2 s
4 s
>> OK
Activation
Deactivation
