SETTING 5: MANUALLY SETTING THE UP & DOWN END LIMITS WITH THE AUTOMATIC LOCKING
SYSTEM:
The locking system at the lower end limit may vary depending on the product, but the procedure for setting
the entrance/exit positions of the locks remains the same on all systems.
1
> 2 s
5 s
6

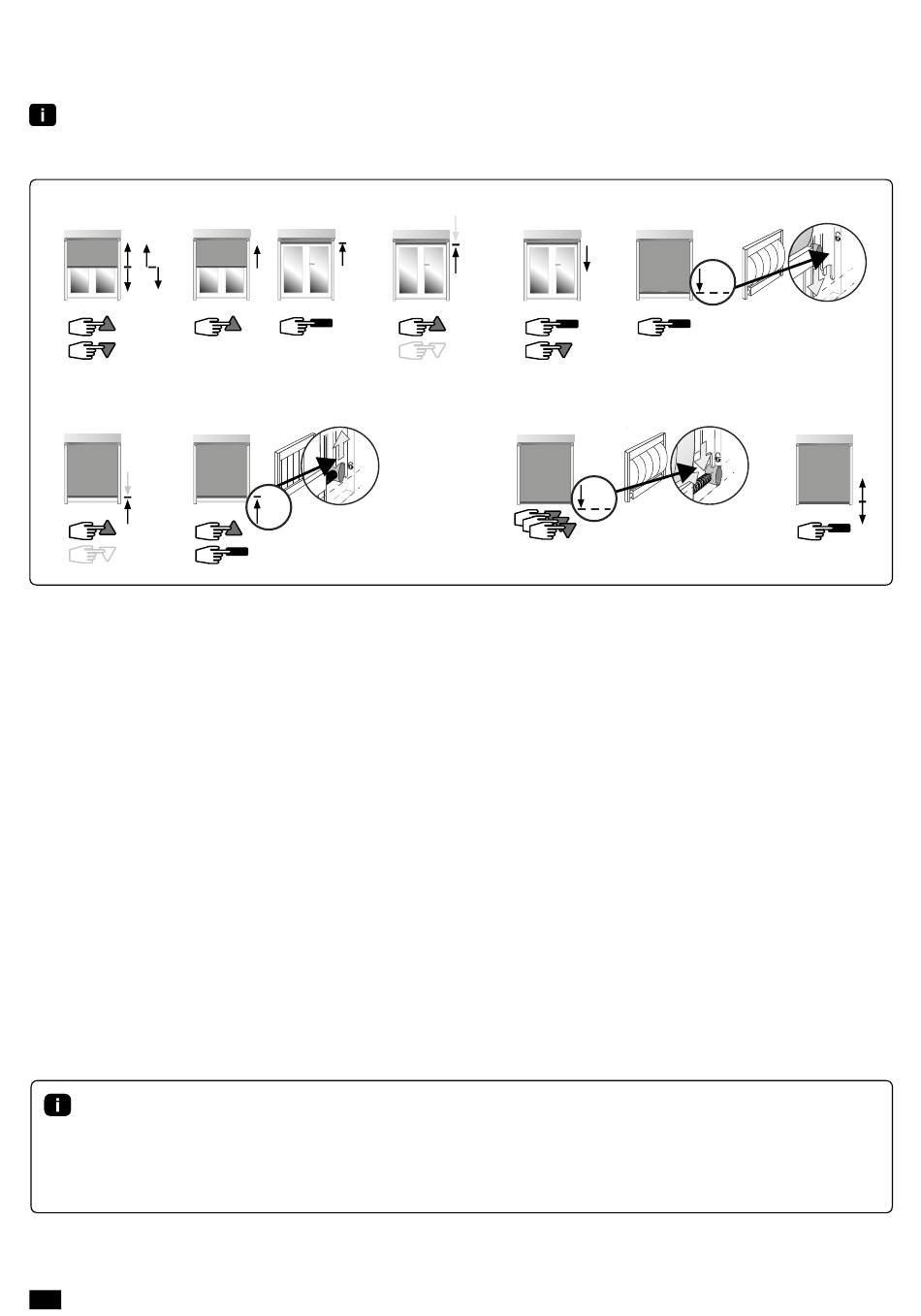

1- Press simultaneously for 5 s the "UP" and "DOWN" buttons: the motor will jog once normally and then a
second time with a slow jog.
2- Press the « UP » button : the motor will run up automatically if the button is held for 2 s. Stop the product with
the « STOP » button at the desired UP limit.
3- If necessary adjust the position with the "UP" and "DOWN" buttons.
4- Press simultaneously on the « STOP » and « DOWN » buttons: the motor will run down.
5- Press the "STOP" button to stop the product at position (P1), which corresponds to the automatic locking
system's entrance point (the fabric should not be tense).
6- If necessary adjust the position with the "UP" and "DOWN" buttons.
7- Press simultaneously on the « STOP » and «UP » buttons : the motor will run up and stop, putting tension on
the fabric.
8- Run the product to position (P2), which corresponds to the automatic locking system's exit point.
9- Press 2 s on the "STOP" button to confirm the settings, the motor jogs. The operation is completed. Go to
section §5.
If you do not want to programm the transmitter used till now as the individual control:
- Cut the power supply ( 2 seconds minimum)
- repeat the operation 4.1* with a new transmitter and then go to section §5.
*In this case, the motor will run for 0,5 second in both directions, that means the limits setting is already
done.
