1.2 Jumpers

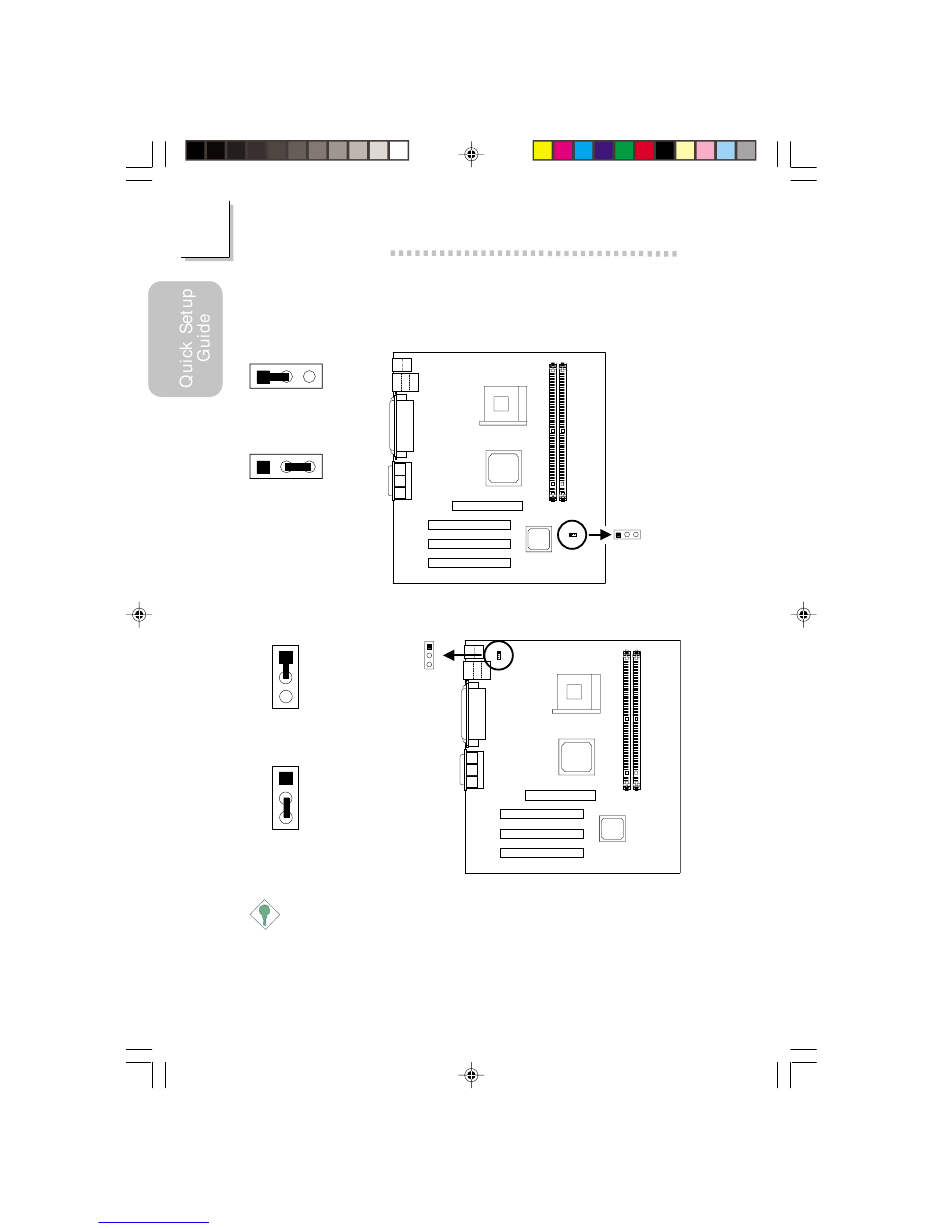

1.2.1 Clear CMOS Data - JP1
1 2 3
1-2 On: Normal
(default)
1 2 3
2-3 On:
Clear CMOS Data
1.2.2 Power Select for PS/2 Keyboard/Mouse - JP2
1
2
3
1-2 On: Disable -
VCC power
1
2
3
2-3 On: Enable -
5VSB power (default)
Important:
The 5VSB power source of your power supply must support
≥ 720mA.
8
manuals search engine
1
2
3
PS/2 power
select (JP2)
1 2 3
Clear CMOS
(JP1)
