1
Quick Setup Guide

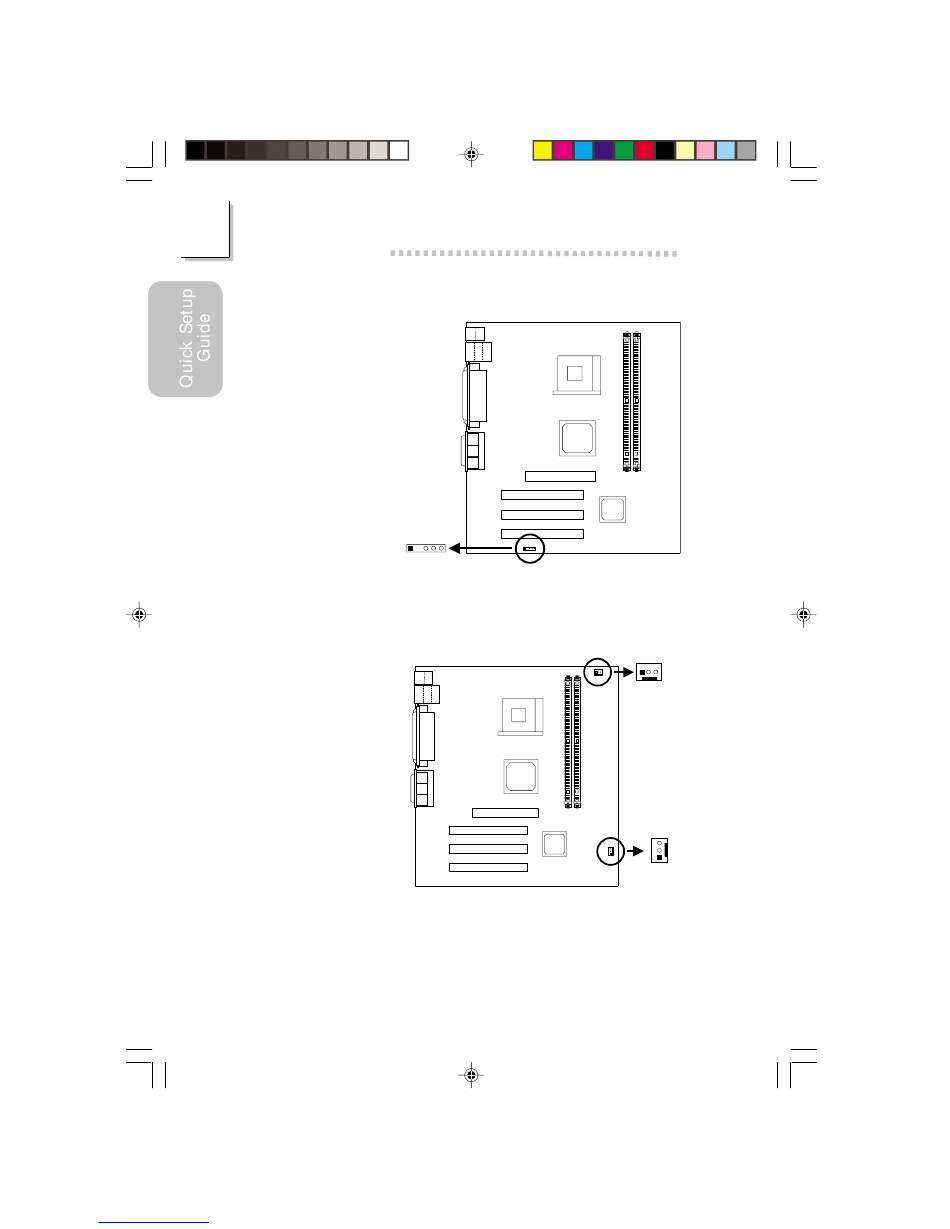

1.3.10 IrDA Connector
1 VCC
2 N. C.
3 IRRX
4 Ground
5 IRTX
The sequence of the
pin functions on
some IrDA cable
may be rever sed
from the pin function
defined on the
mainboard. Make
sure to connect the
cable to the IrDA
connector according
to their pin functions.
1.3.11 Fan Connectors
CPU Fan
1 Ground
2 12V
3 Sense
Chassis Fan
1 Ground
2 12V
3 Sense
14
manuals search engine
1 2 3 4 5
IrDA (J10)
1 2 3
CPU fan
(J16)
3
2
1
Chassis fan
(J17)
