1.2 Jumpers

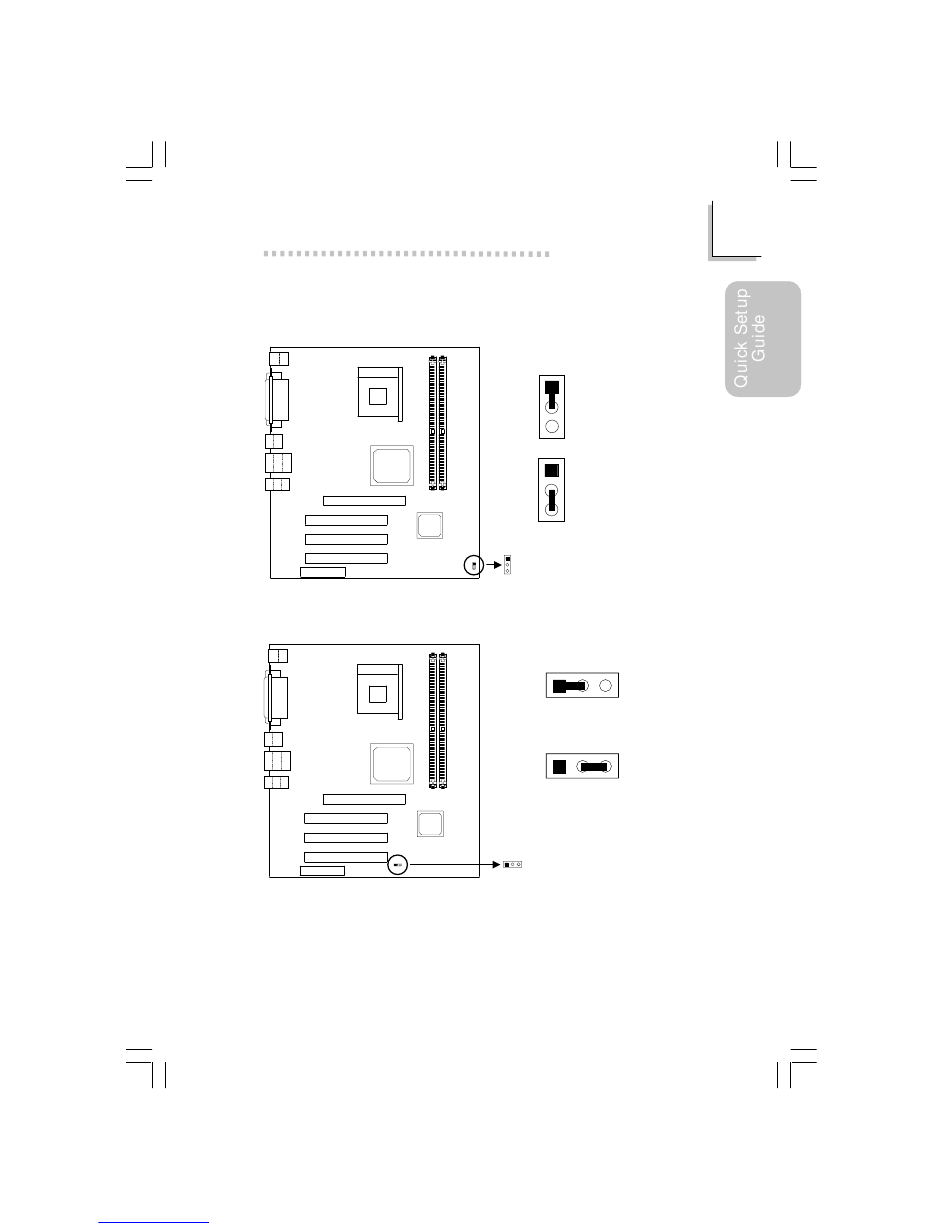

1.2.1 Clear CMOS Data - JP5
1.2.2 Jumper Settings for Selecting the USB 5/6 Power
If you wish to use the Wake-On-USB Keyboard/Mouse function, make sure
this jumper is set to Enabled. "USB Port Wake Up Control" ("PM Wake Up
Events" field) in the Power Management Setup submenu of the BIOS must
also be set to Enabled.
manuals search engine
Quick Setup Guide
1
1-2 On:
Clear CMOS Data
2
3
1
2-3 On: Normal
(default)
2
3
Clear CMOS
(JP5)
1
2
3
1 2 3
1-2 On: Disabled - VCC
1 2 3
2-3 On: Enabled -
5V_DUL
(default)
Power select
for USB 5/6 (JP3)
1 2 3
