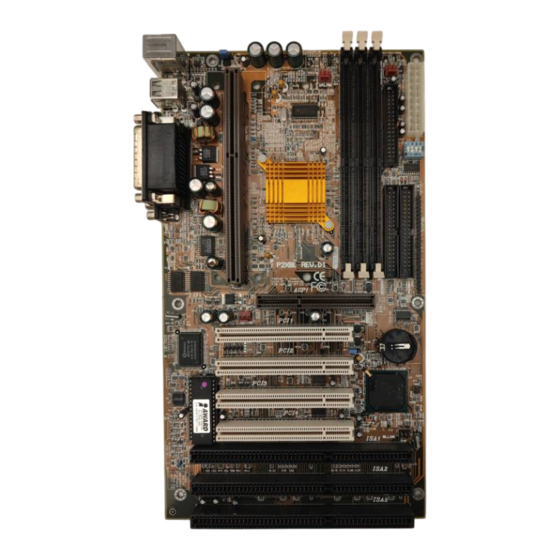

- Seite 1 P2XBL/e Rev. A+ System Board Carte Mère Manuel System-Platine User’s Manual Pour Utilisateur Benutzerhandbuch...
- Seite 3 The user’s manual in the provided CD contains detailed information about the system board. If, in some cases, some information doesn’t match those shown in this manual, this manual should always be regarded as the most updated version. To view the user’s manual, insert the CD into a CD-ROM drive.
- Seite 4 Chapter 1 - Introduction / Introduction / Einleitung ® ®...
- Seite 5 ®...
- Seite 6 The 5VSB power source of your power supply must support ≥ 720mA (minimum). The power button will not function once a keyboard password has been set in the “KB Power On Password” field of the Integrated Peripherals setup. You must type the password to power-on the system.
-
Seite 7: Chapter 2 - Hardware Installation
Chapter 2 - Hardware Installation Installation du Matériel Installation der Hardware... - Seite 8 Intel Pentium II processor or Intel Celeron processor supports VID ® (Voltage Identification). The switching voltage regulator on the system board will automatically set the voltage regulator according to the voltage of the processor.
- Seite 11 1. The power button will not function once a keyboard password has been set in the “KB Power On Password” field of the Integrated Peripherals setup. You must type the password to power-on the system. 2. The 5VSB power source of your power supply must support ≥...
- Seite 13 The 5VSB power source of your power supply must support ≥ 720mA (minimum).
- Seite 15 ATX-SW (ATX Power Switch) - Depending on the setting in the BIOS setup, this switch is a “dual function power button” that will allow your system to enter the Soft-Off or Suspend mode. Refer to section 3.7 (chapter 3) for more information.
- Seite 16 Your power supply must meet the ATX specification - supporting 3.3V/14A (minimum), otherwise your system will not boot properly.
- Seite 17 Chapter 3 - Award BIOS Setup Utility Utilitaire de Configuration du Award BIOS AWARD BIOS Konfigurationsprogramm ROM PCI/ISA BIOS CMOS SETUP UTILITY AWARD SOFTWARE, INC. STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERVISOR PASSWORD USER PASSWORD CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION...
- Seite 18 ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC. Date (mm:dd:yy) : Mon, Jul 27 1998 Time (hh:mm:ss) : 13: 27: 50 HARD DISKS TYPE SIZE HEAD CYLS PRECOMP LANDZ SECTOR MODE Primary Master Auto Auto Primary Slave Auto Auto Secondary Master Auto Auto...
- Seite 19 ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC. Date (mm:dd:yy) : Mon July 27 1998 Time (hh:mm:ss) : 13: 27: 50 HARD DISKS TYPE SIZE HEAD MODE CYLS PRECOMP LANDZ SECTOR Primary Master Auto Auto Primary Slave Auto Auto Secondary Master Auto Auto...
- Seite 20 ROM PCI/ISA BIOS BIOS FEATURES SETUP AWARD SOFTWARE, INC. Virus Warning : Disabled CPU L1 Cache : Enabled CPU L2 Cache : Enabled CPU L2 Cache ECC Checking : Enabled Quick Power On Self Test : Enabled Boot Sequence : A, C, SCSI Swap Floppy Drive : Disabled Boot Up Floppy Seek...
- Seite 21 ROM PCI/ISA BIOS CHIPSET FEATURES SETUP AWARD SOFTWARE, INC. SDRAM RAS-to-CAS Delay SDRAM RAS Precharge Time SDRAM CAS Latency Time SDRAM Precharge Control : Disabled DRAM Data Integrity Mode : Non-ECC System BIOS Cacheable : Disabled Video BIOS Cacheable : Disabled Video RAM Cacheable : Disabled 8 Bit I/O Recovery Time...
- Seite 23 ROM PCI/ISA BIOS POWER MANAGEMENT SETUP AWARD SOFTWARE, INC. ACPI Function : Disabled Power Management : User Define PM Control by APM : Yes Video Off Method : DPMS Video Off After : Suspend MODEM Use IRQ Standby Mode : Disabled Suspend Mode : Disabled HDD Power Down...
- Seite 24 ROM PCI/ISA BIOS POWER MANAGEMENT SETUP AWARD SOFTWARE, INC. ACPI Function : Disabled Power Management : User Define PM Control by APM : Yes Video Off Method : DPMS Video Off After : Suspend MODEM Use IRQ Standby Mode : Disabled Suspend Mode : Disabled HDD Power Down...
- Seite 26 ROM PCI/ISA BIOS POWER MANAGEMENT SETUP AWARD SOFTWARE, INC. ACPI Function : Disabled Power Management : User Define PM Control by APM : Yes Video Off Method : DPMS Video Off After : Suspend MODEM Use IRQ Standby Mode : Disabled Suspend Mode : Disabled HDD Power Down...
- Seite 28 ROM PCI/ISA BIOS INTEGRATED PERIPHERALS AWARD SOFTWARE, INC. IDE HDD Block Mode : Enabled KBC Input clock : 8MHz IDE Primary Master PIO : Auto Onboard FDC Controller : Enabled IDE Primary Slave PIO : Auto Onboard Serial Port 1 : 3F8/IRQ4 IDE Secondary Master PIO : Auto...
- Seite 29 Disabled Enabled The power button will not function once a keyboard password has been set in the “KB Power On Password” field. You must type the password to power-on the system. Le bouton de mise sous tension ne fonctionnera plus une fois que le mot de passe clavier aura été...
- Seite 30 Hot Key Mouse Left Mouse Right Any Key...
- Seite 31 Make sure JP3 is set to 2-3 On. Assurez vous que JP3 est positionné sur la sélection 2-3. Es ist darauf zu achten, daß sich JP3 in der Einstellung 2-3 An befindet.
- Seite 33 Chapter 4 - Supported Softwares Logiciels Supportés Unterstützte Software ®...
- Seite 34 Appendix A - System Error Message Messages d’Erreur du Système Fehlernachricht des Systems Danger of explosion if battery incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the battery manufacturer’s instructions.
