Roof outlet

The roof outlet may pass through any point of the roof, with a bend to the ridge, if so desired. The roof outlet
is supplied with a universally adjustable plate for a sloped roof, or with an adhesive plate for a flat roof.
Determine the location of the hearth and the roof outlet.
Make an opening of Ø 160 mm.
Connect the pipes vertically to the outlet of the hearth, press it in place and secure it with the clip.
Determine the length of the pipes you need, and ensure that the adhesive strip or the universal tile is
properly linked up with the roof.
Saw the outer pipe off to measure and link the roof outlet to the concentric pipes.

Placing the pipe system first and then placing the hearth

You can also place the concentric pipe system before placing the appliance. In such case, ensure that you
make the connection with the appliance with an extendable pipe.

Opening the door

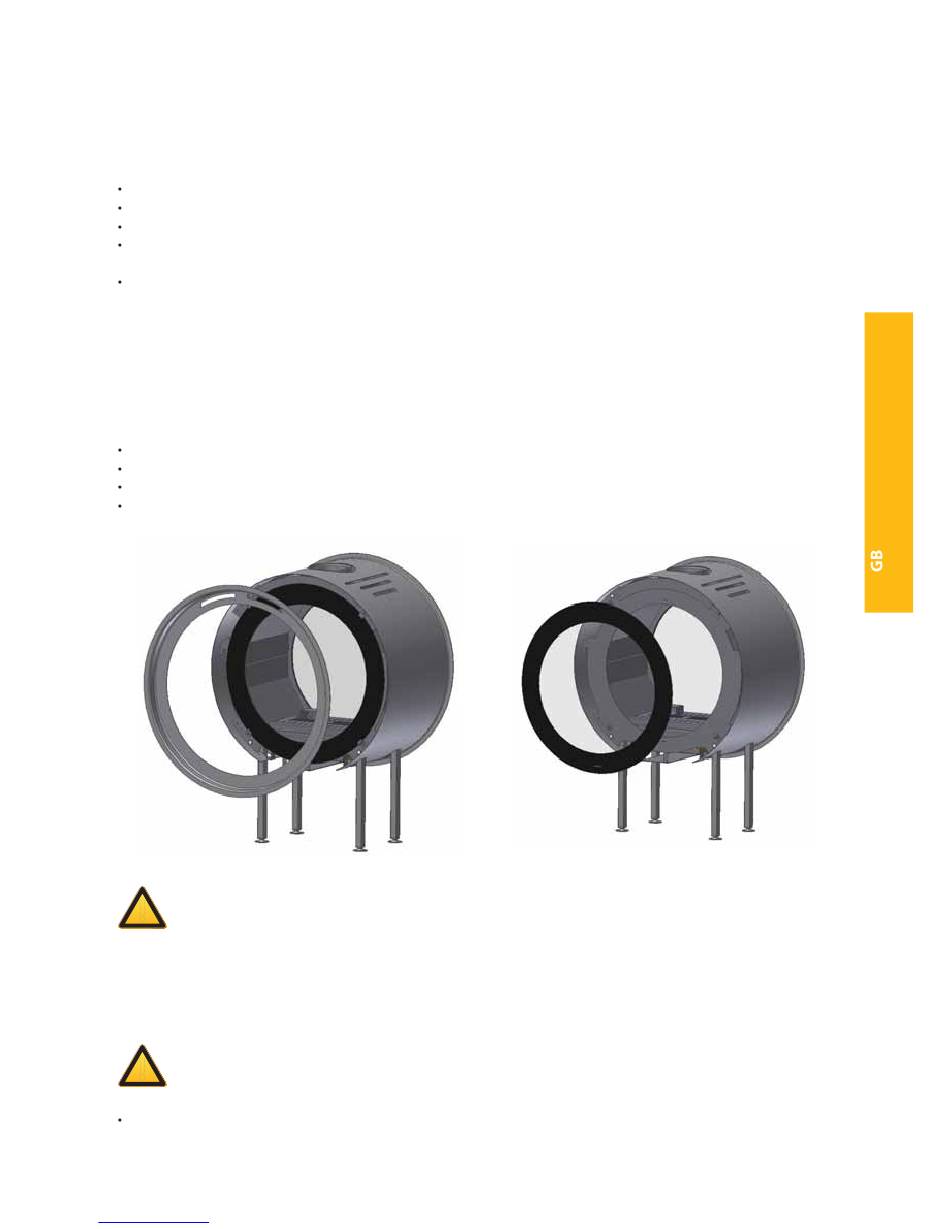

Remove the covering ring.
Remove the upper two glass strips (make sure the glass doesn't tip forward).
Loosen the lower two glass strips.
Remove the glass carefully.
Watch out for finger marks!
!
Make sure to leave no finger marks on the cleaned glass pane when you close the hearth door. Finger
marks leave stains which will burn in the glass.

Placing the hearth

! WANDERS recommends fireplace aeration for all built-in hearths.
The appliance must be built into a fireplace made of fireproof material. If there are any flammable materi-
als behind or along the gas stove, you must place fireproof sheets.
