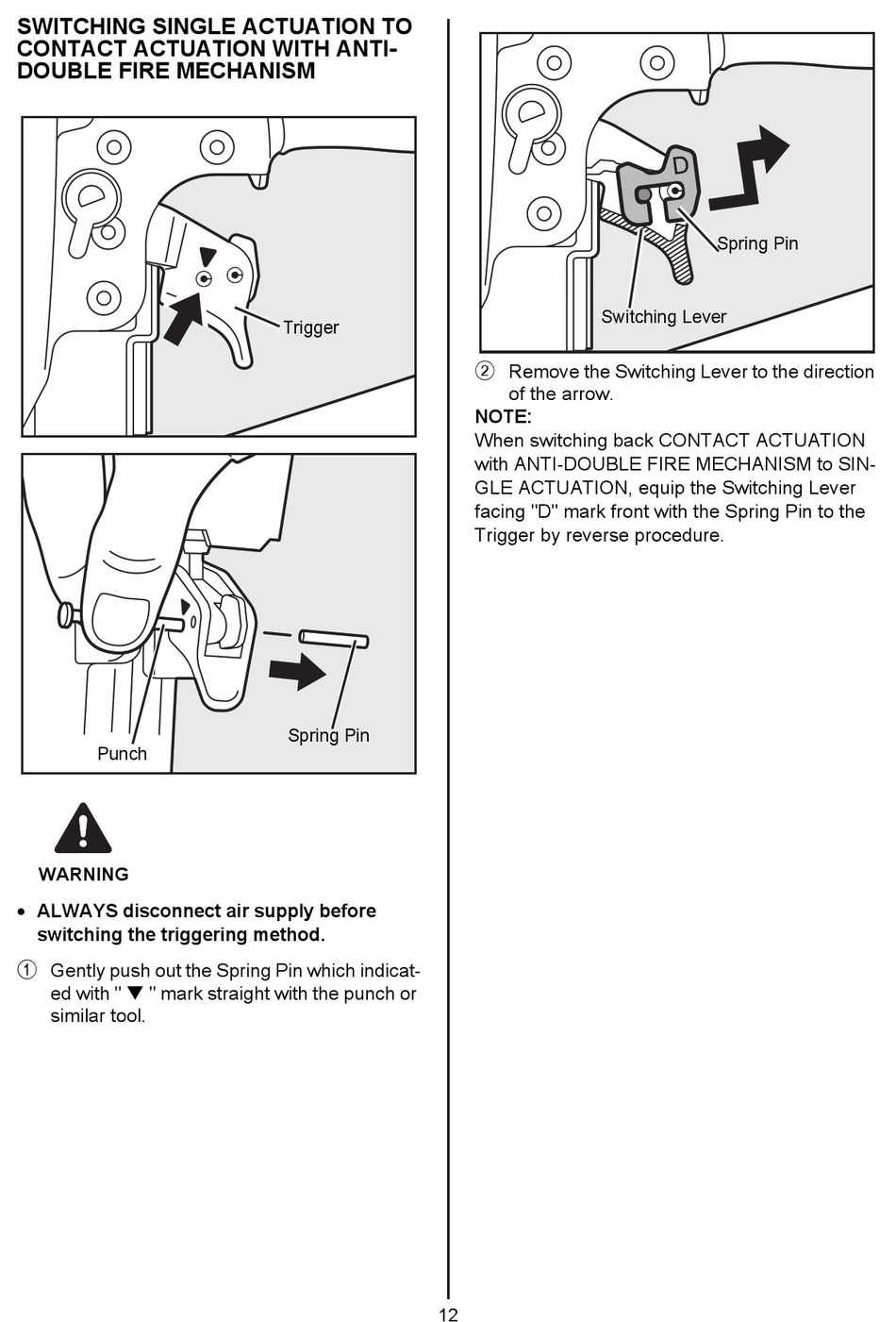

SWITCHING SINGLE ACTUATION TO
CONTACT ACTUATION WITH ANTI-
DOUBLE FIRE MECHANISM
Punch
WARNING
• ALWAYS disconnect air supply before
switching the triggering method.
1 Gently push out the Spring Pin which indicat-
ed with " " mark straight with the punch or
similar tool.
Trigger
Spring Pin
12
Switching Lever
2 Remove the Switching Lever to the direction
of the arrow.
NOTE:
When switching back CONTACT ACTUATION
with ANTI-DOUBLE FIRE MECHANISM to SIN-
GLE ACTUATION, equip the Switching Lever
facing "D" mark front with the Spring Pin to the
Trigger by reverse procedure.
Spring Pin
