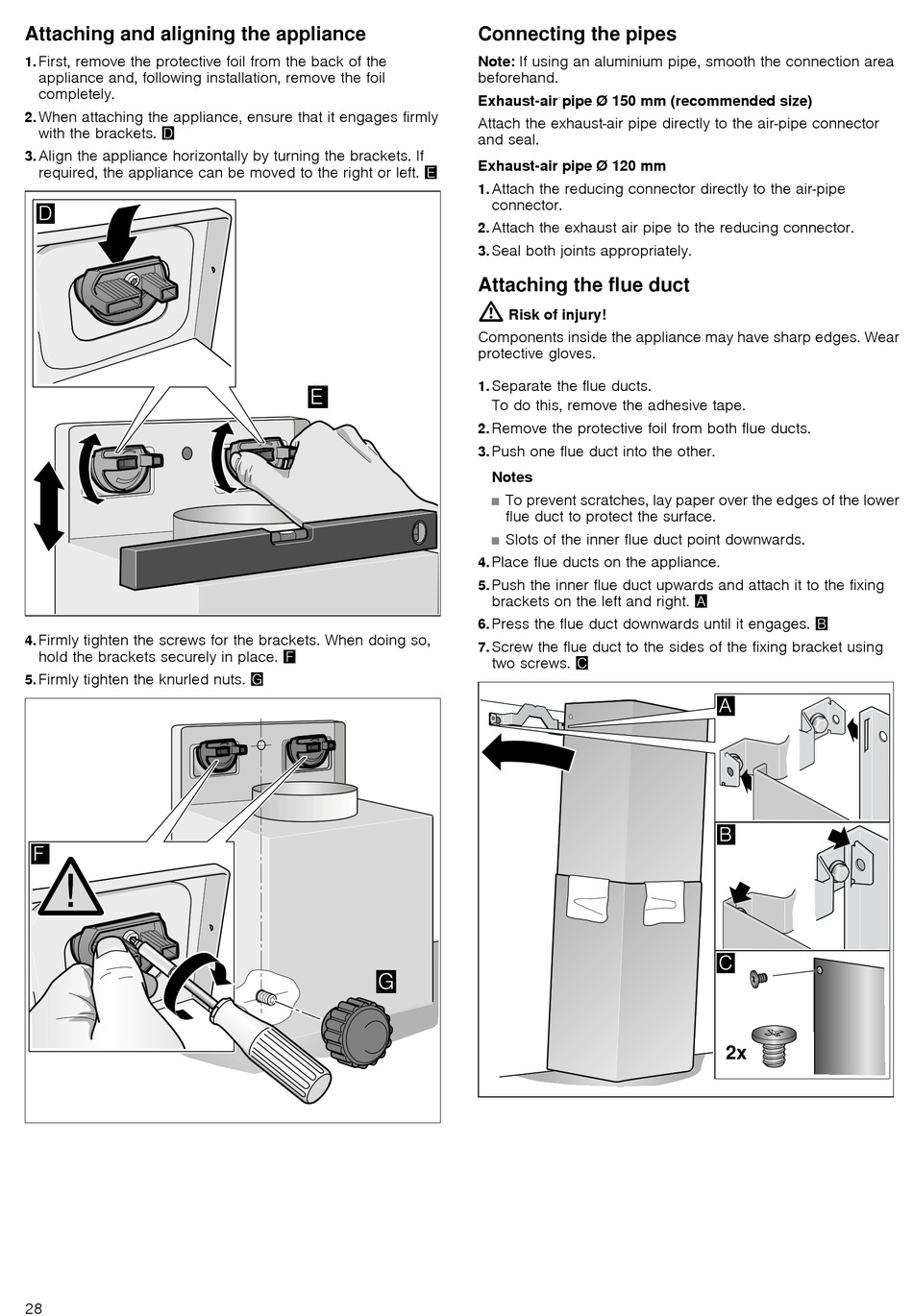

Attaching and aligning the appliance
First, remove the protective foil from the back of the
1.
appliance and, following installation, remove the foil
completely.
When attaching the appliance, ensure that it engages firmly
2.
with the brackets. «
Align the appliance horizontally by turning the brackets. If
3.
required, the appliance can be moved to the right or left. ¬
Firmly tighten the screws for the brackets. When doing so,
4.
hold the brackets securely in place. ®
Firmly tighten the knurled nuts. ¯
5.
28

Connecting the pipes

Note: If using an aluminium pipe, smooth the connection area
beforehand.
Exhaust-air pipe Ø 150 mm (recommended size)
Attach the exhaust-air pipe directly to the air-pipe connector
and seal.
Exhaust-air pipe Ø 120 mm
Attach the reducing connector directly to the air-pipe
1.
connector.
Attach the exhaust air pipe to the reducing connector.
2.
Seal both joints appropriately.
3.

Attaching the flue duct

:
Risk of injury!
Components inside the appliance may have sharp edges. Wear
protective gloves.
Separate the flue ducts.
1.
To do this, remove the adhesive tape.
Remove the protective foil from both flue ducts.
2.
Push one flue duct into the other.
3.
Notes
To prevent scratches, lay paper over the edges of the lower
■
flue duct to protect the surface.
Slots of the inner flue duct point downwards.
■
Place flue ducts on the appliance.
4.
Push the inner flue duct upwards and attach it to the fixing
5.
brackets on the left and right. ¨
Press the flue duct downwards until it engages. ©
6.
Screw the flue duct to the sides of the fixing bracket using
7.
two screws. ª
