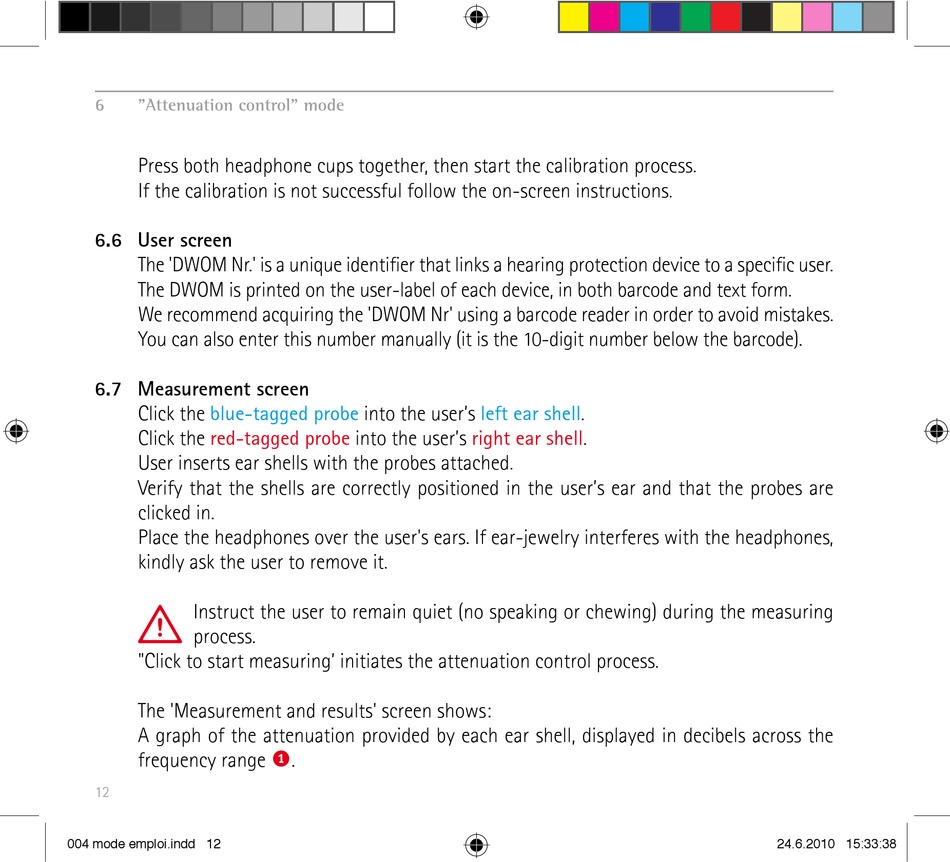

Phonak SafetyMeter Gebrauchsanweisung Seite 18

6 "Attenuation control" mode
Press both headphone cups together, then start the calibration process.
If the calibration is not successful follow the on-screen instructions.
6.6 User screen
The 'DWOM Nr.' is a unique identifier that links a hearing protection device to a specific user.
The DWOM is printed on the user-label of each device, in both barcode and text form.
We recommend acquiring the 'DWOM Nr' using a barcode reader in order to avoid mistakes.
You can also enter this number manually (it is the 10-digit number below the barcode).
6.7 Measurement screen
Click the blue-tagged probe
red-tagged probe
Click the
User inserts ear shells with the probes attached.
Verify that the shells are correctly positioned in the user's ear and that the probes are
clicked in.
Place the headphones over the user's ears. If ear-jewelry interferes with the headphones,
kindly ask the user to remove it.
Instruct the user to remain quiet (no speaking or chewing) during the measuring
process.
"Click to start measuring' initiates the attenuation control process.
The 'Measurement and results' screen shows:
A graph of the attenuation provided by each ear shell, displayed in decibels across the
frequency range
12
004 mode emploi.indd 12
into the user's
into the user's
.
e
left ear shell.
right ear shell.
24.6.2010 15:33:38
