Technical Data - SOMFY Roll Up Basic 28 WireFree RTS Li-ion Anleitung

EN

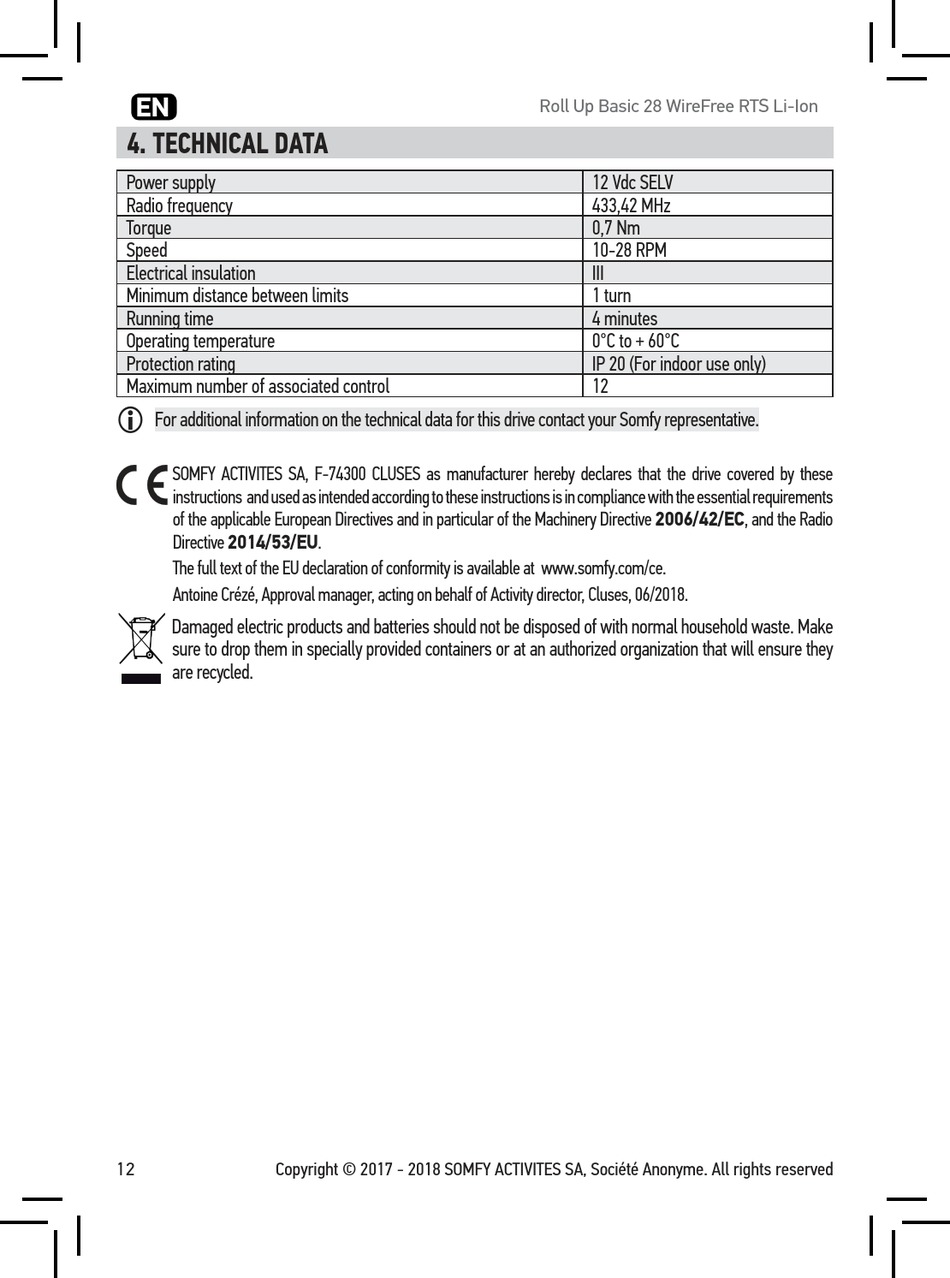

4. TECHNICAL DATA

Power supply
Radio frequency
Torque
Speed
Electrical insulation
Minimum distance between limits
Running time
Operating temperature
Protection rating
Maximum number of associated control
Β
For additional information on the technical data for this drive contact your Somfy representative.
SOMFY ACTIVITES SA, F-74300 CLUSES as manufacturer hereby declares that the drive covered by these
instructions and used as intended according to these instructions is in compliance with the essential requirements
of the applicable European Directives and in particular of the Machinery Directive 2006/42/EC, and the Radio
Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at www.somfy.com/ce.
Antoine Crézé, Approval manager, acting on behalf of Activity director, Cluses, 06/2018.
Damaged electric products and batteries should not be disposed of with normal household waste. Make
sure to drop them in specially provided containers or at an authorized organization that will ensure they
are recycled.
Copyright © 2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved
12
Roll Up Basic 28 WireFree RTS Li-Ion
12 Vdc SELV
433,42 MHz
0,7 Nm
10-28 RPM
III
1 turn
4 minutes
0°C to + 60°C
IP 20 (For indoor use only)
12
