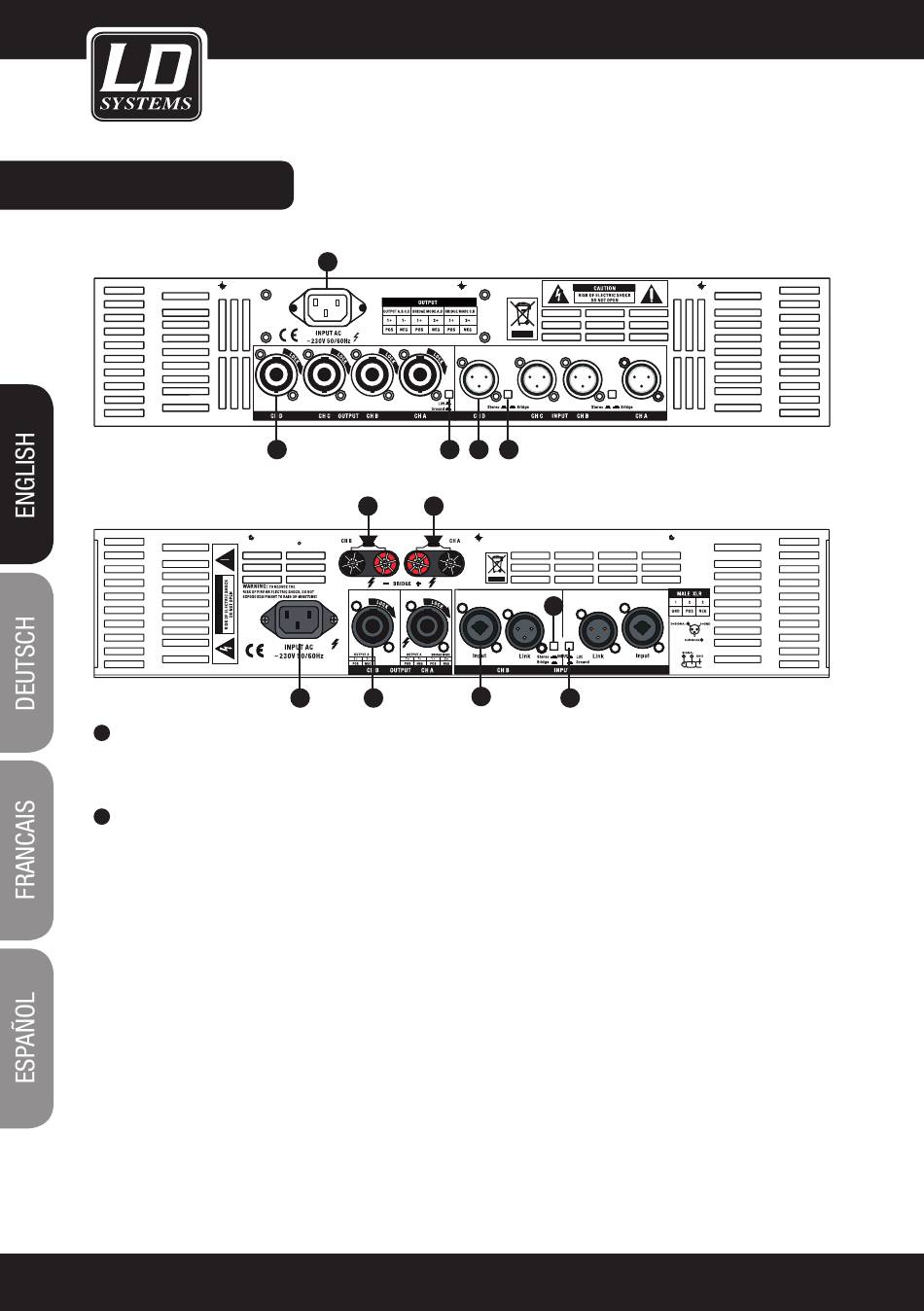

BACK PANEL:

DP4950
DP600, DP1600, DP2100
MAIN SOCKET
1
please, make sure to check whether the voltage selector shows the correct mains voltage that matches the
local mains supply at the installation site. An appropriate mains cord is included in the package.
INPUT
2
The XLR/TRS CoMBI-type connector inputs INpUT A, B, (C, D on Dp4950) are connect to mixing console
or other source. The XLR-type connectors LINK A, B, (NoT excisting on Dp4950) are prepared for through-
connecting input signals to additional external power amps. The input signal is directly routed to these output
connectors.
AUDIO CONNECTION CAbLES
Choosing high-quality balanced cables (two conductors for the audio + and - signal plus sepearate shielding
screen) with XLR-type connectors is recommended. Although connecting unbalanced cables to the power
amplifier inputs is possible as well, using balanced cables is always preferable. A great number of today´s audio
applications uses balanced outputs. With balanced cables, the shield connects all metal chassis parts and there-
fore efficiently eliminates the external interference -mostly noise and hum.
6
1
Bridge Bridge
3 4
3 3
1 3
INPUT INPUT INPUT INPUT
2 5
5
CH A / BRIDGE
2
4
