OUTPUTS
3
Speakon and Binding post -type loudspeaker connectors. The Speakon connector is designed specially for high-
power speaker connections. It locks in place, prevents shock hazard, and assures the correct polarity.
SPEAKER CABLING
Larger wire sizes and shorter lengths minimize both loss of power and degradation of damping factor. Do not
place speaker cables next to input wiring. please take care when binding posts are used, that there comes no
possibility to short cirquit from loosen cables.
SELECTING GROUND SWITCH
4
Ground lift means breaking a connection between chassis earth and electrical earth. Use this feature only when
50Hz hum is excisting from loudspeakers.
SELECTING STEREO / PARALLEL / BRIDGE MODE
5
STEREO MODE
Each channel within the pair remains independent, and each may be used for a different signal.
PARALLEL MODE
This setting connects both inputs of a pair together. one signal feeds both channels. Do
not connect different sources to each input. Each channel`s gain control and speaker
connection remain independent.
BRIDGE MODE
This setting combines both channels of a pair into a single channel with twice the output voltage. Use only the
first channel s input and gain control. Set the second channel s gain control at minimum.

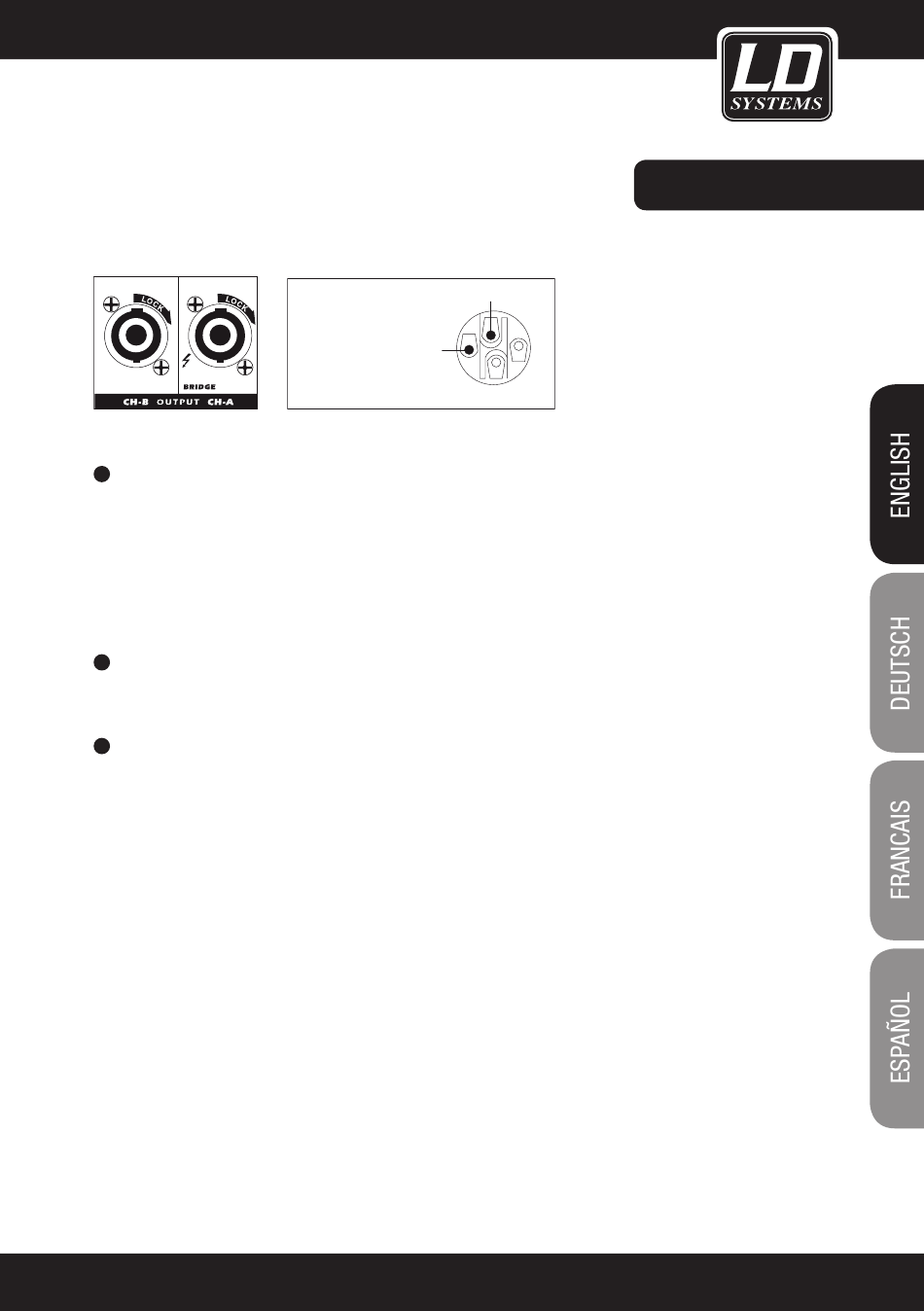

AMP OUTPUTS
A.C B.C
1+
1-
1-
SPEAKON CONNECTOR
SCHEMATIC DIAGRAM
2+
2-
NOT CONNECTED
BACK PANEL:
1+
2-
2+
7
