Selectable operation modes : Stereo, bridge & parallel
Neutrik Combo Input connector and Speakon output connector.
Power, Protect, Limit, Signal, Stereo, BTL (Bridge), & PAR (parallel) indicators.
3． ． ． ． Precaution
8) Make sure the mains power of the unit is turned off before installation.
9) Make sure the mains supply matches to the unit's rated voltage.
10) Use an adequate power source; do not turn on several amplifiers at the same time.
11) Make sure all the connectors are well connected in their indicated position firmly.
12) Before switching on the power, please check carefully if the mode switch is in its correct position – stereo,
bridge, or parallel.
13) Set the input sensitivity (volume) controls to the left before you turn on the power.
14) If the amplifier malfunctions, switch it off immediately. Do not attempt to repair it by yourself, contact your
dealer for service.
4． ． ． ． Front panel

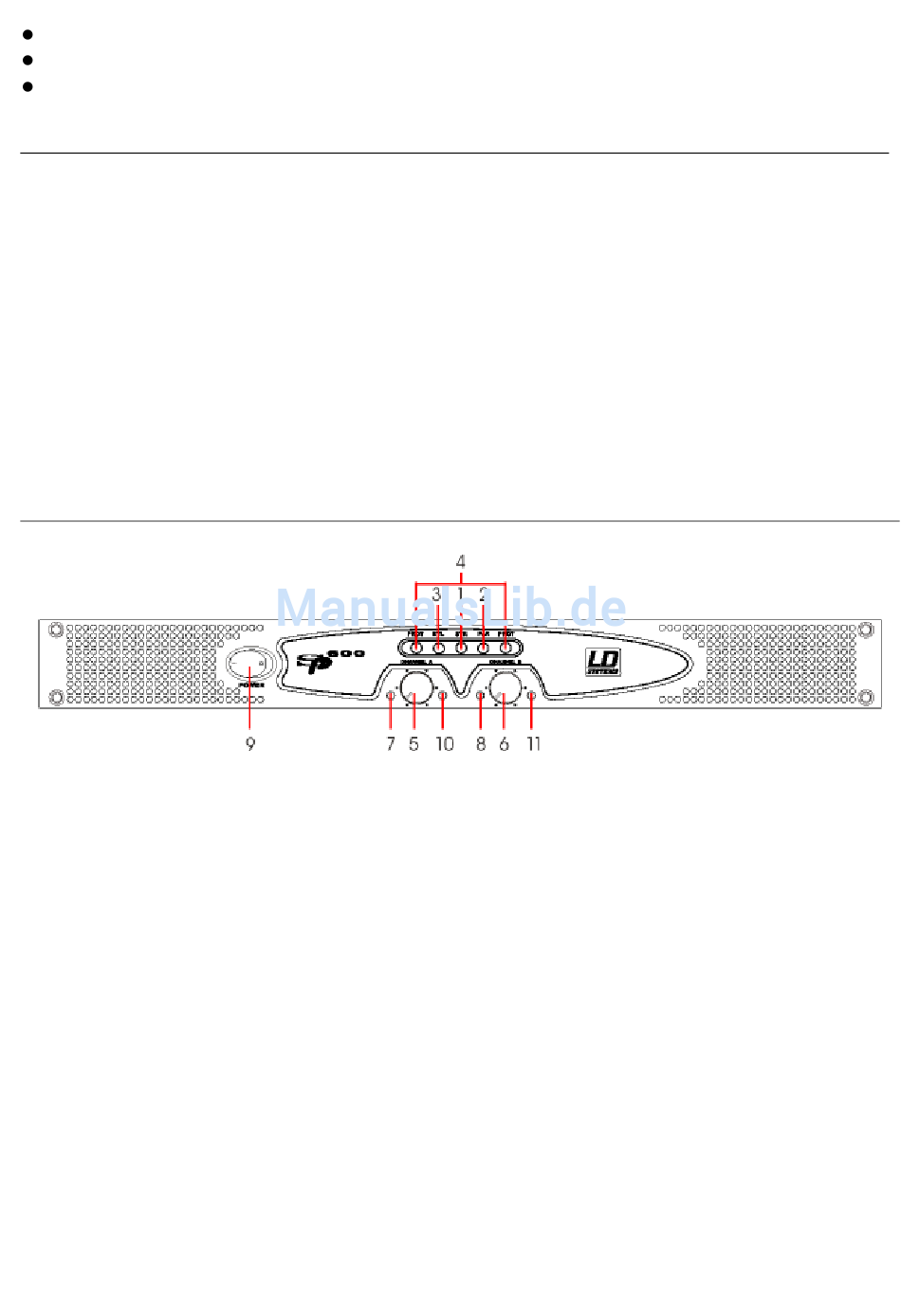

1）STR/Stereo LED (Blue)
Indicates that the amplifier is working in Stereo mode.
2）PAR/Parallel LED (Blue)
Indicates that the amplifier is working in parallel mode. In parallel mode, you have to apply the signal only
to the CHA (Channel A) input of the amplifier. The signal input is from CHA, but the signal outputs are
same as in Stereo mode, i.e. from CHA & CHB outputs, connecting to two speakers.
3）BTL/Bridge LED (Blue)
Indicates that the amplifier is working in bridge mode. This means that both channels are switched
together in series to act as mono amplifier. The output power is almost three time of that compared to the
separate channels. In bridge mode, you have to apply the signal only to CHA input of the amplifier.
4）PROT (Protect) / YELLOW
The LED will be on under the following 3 conditions:
4-1）During first few seconds after switching on/off the amplifier the LED is on.
