1.7 X5 Cooling unit (optional)

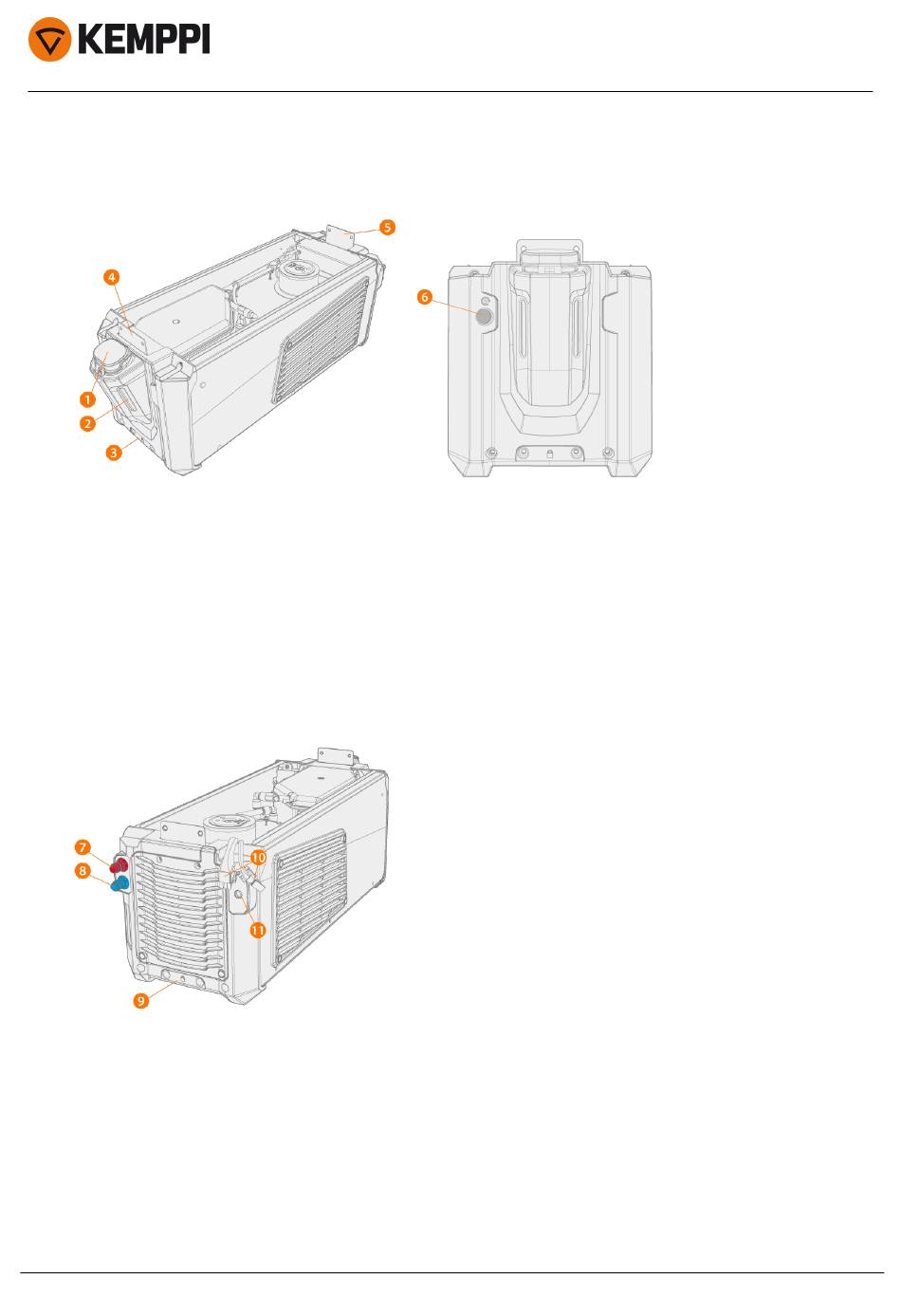

Front:
1. Cooler container cap
2. Cooling liquid level indicator
3. Front locking interface (for locking on the cart)
4. Front locking interface (for locking to the power source)
5. Rear locking interace (for locking to the power source)
6. Cooling liquid circulation button
>> Keeping the button pressed activates the pump and circulates the cooling liquid throughout the system.
Once released, the pump stops.
Rear:
7. Coolant inlet/outlet connector (color-coded)
8. Coolant inlet/outlet connector (color-coded)
9. Rear locking interface (for locking on the cart)
10. Cooling unit to power source connectors
11. Additional strain relief mount.
