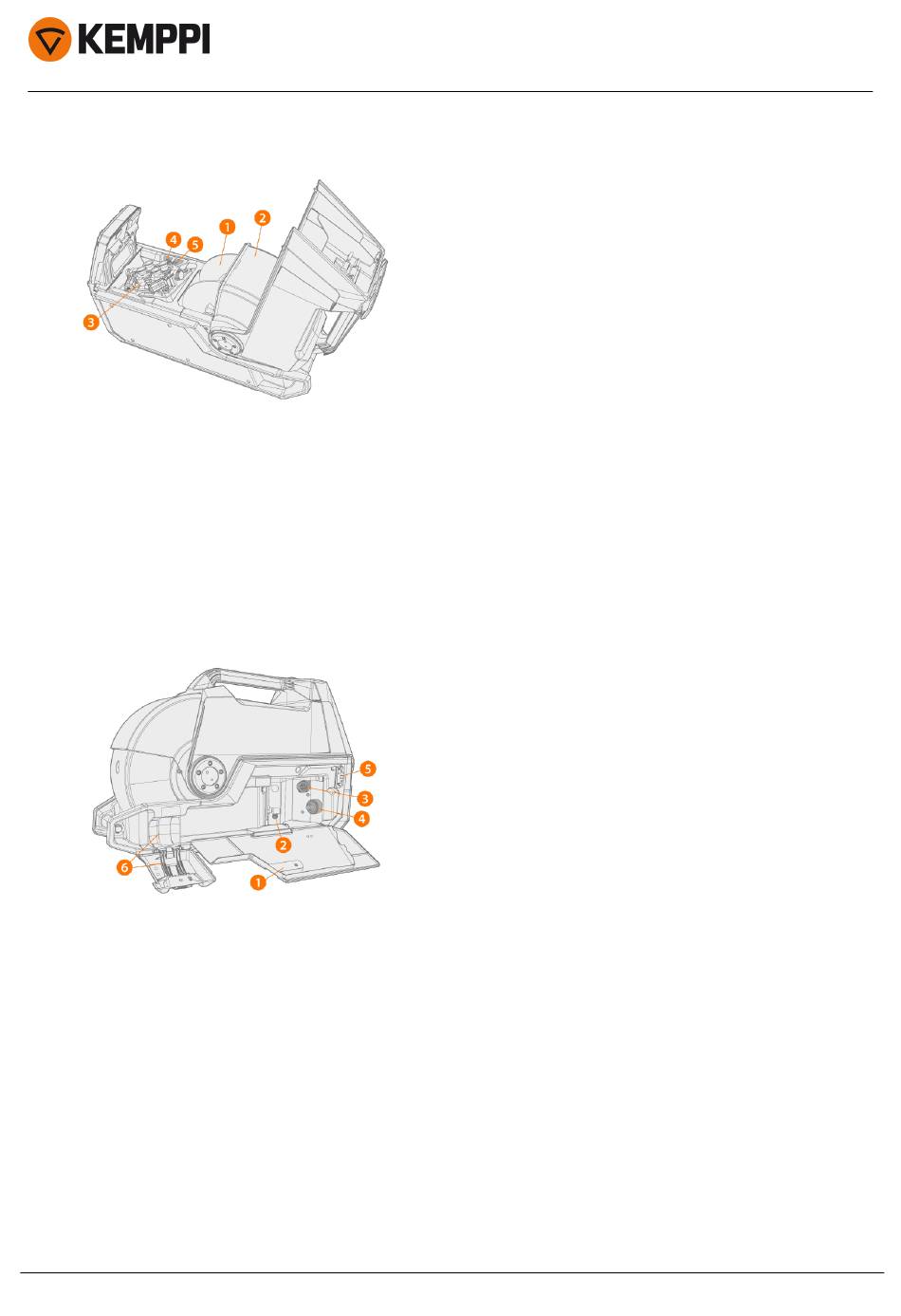

Inside wire feeder (wire feeder cabinet)
1.
Wire spool
>> For more information on the wire spools, refer to "X5 Wire spools and hubs" on the next page.
2.
Wire spool locking cover
3.
Wire feed roll mechanism
4.
Wire inch button
>> Drive the filler wire forward (with arc off).
5.
Gas test button
>> Test the shielding gas flow, or flush out the gas.
Inside wire feeder (interconnection cable cabinet)
1.
Interconnection cable cabinet door and latch
2.
Shielding gas hose connector
3.
Control cable connector
4.
Welding current cable connector
5.
Coolant hose mounting slot
6.
Interconnection cable strain relief
For installing and connecting the cables, refer to "X5 Interconnection cable" on page 16 and "Installing cables" on
page 34.
Wire feeder fixing accessories
X5 Wire Feeder can be installed on top of the X5 Power Source with the following optional fixing accessory sets:
Fixed fixing plates and locking mechanism for one wire feeder
Rotating plate with locking mechanism for one wire feeder
Double rotating plate with two locking mechanisms for two wire feeders
