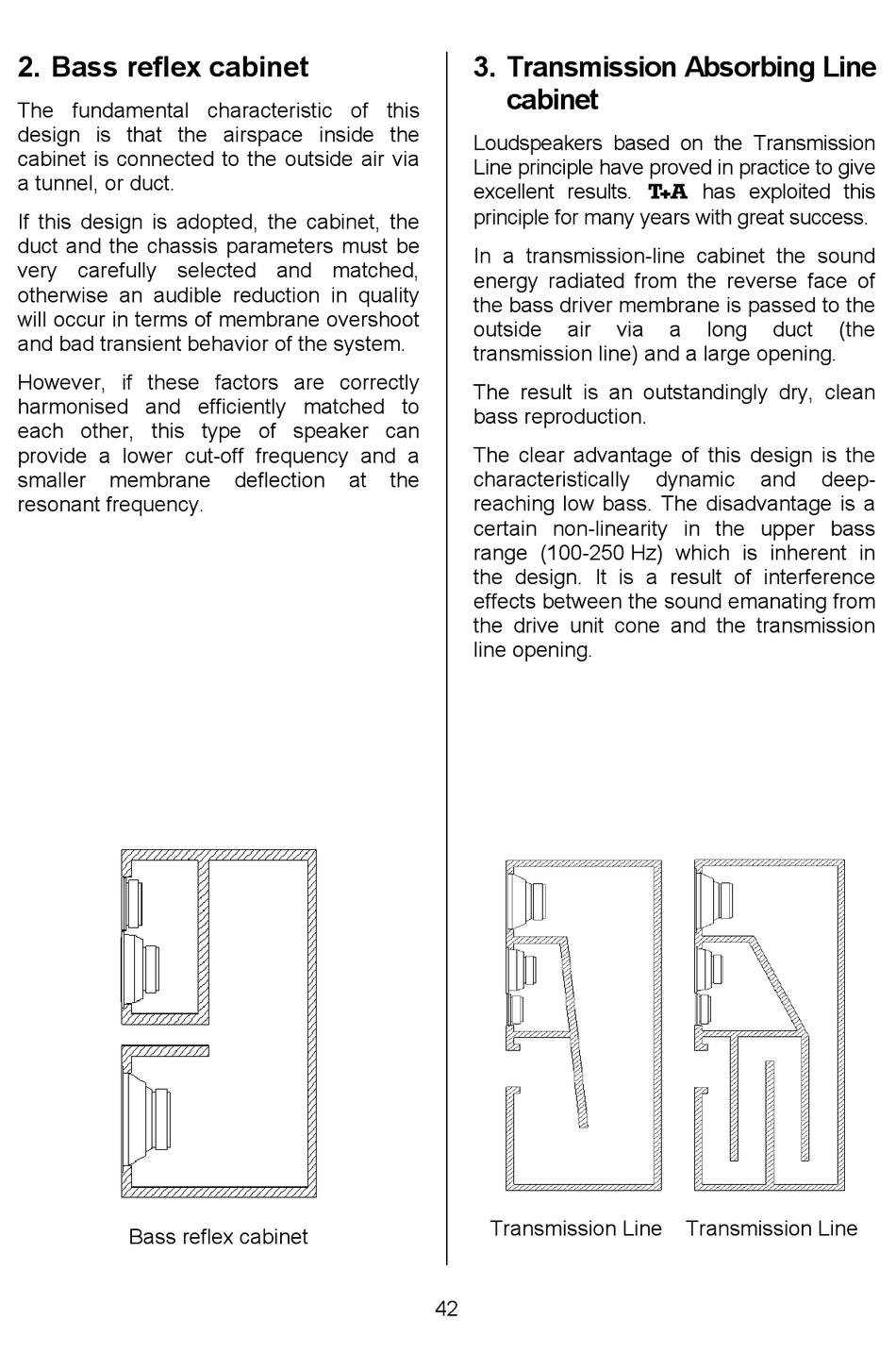

Bass Reflex Cabinet; Transmission Absorbing Line Cabinet - T+A TCI 1 RE Montagehinweise

2. Bass reflex cabinet

The fundamental characteristic of this
design is that the airspace inside the
cabinet is connected to the outside air via
a tunnel, or duct.
If this design is adopted, the cabinet, the
duct and the chassis parameters must be
very carefully selected and matched,
otherwise an audible reduction in quality
will occur in terms of membrane overshoot
and bad transient behavior of the system.
However, if these factors are correctly
harmonised and efficiently matched to
each other, this type of speaker can
provide a lower cut-off frequency and a
smaller membrane
resonant frequency.
Bass reflex cabinet
deflection at the
3. Transmission Absorbing Line
cabinet
Loudspeakers based on the Transmission
Line principle have proved in practice to give
excellent results.  has exploited this
principle for many years with great success.
In a transmission-line cabinet the sound
energy radiated from the reverse face of
the bass driver membrane is passed to the
outside air
transmission line) and a large opening.
The result is an outstandingly dry, clean
bass reproduction.
The clear advantage of this design is the
characteristically
reaching low bass. The disadvantage is a
certain non-linearity in the upper bass
range (100-250 Hz) which is inherent in
the design. It is a result of interference
effects between the sound emanating from
the drive unit cone and the transmission
line opening.
Transmission Line
42
via a long duct
dynamic and
Transmission Line
(the
deep-
