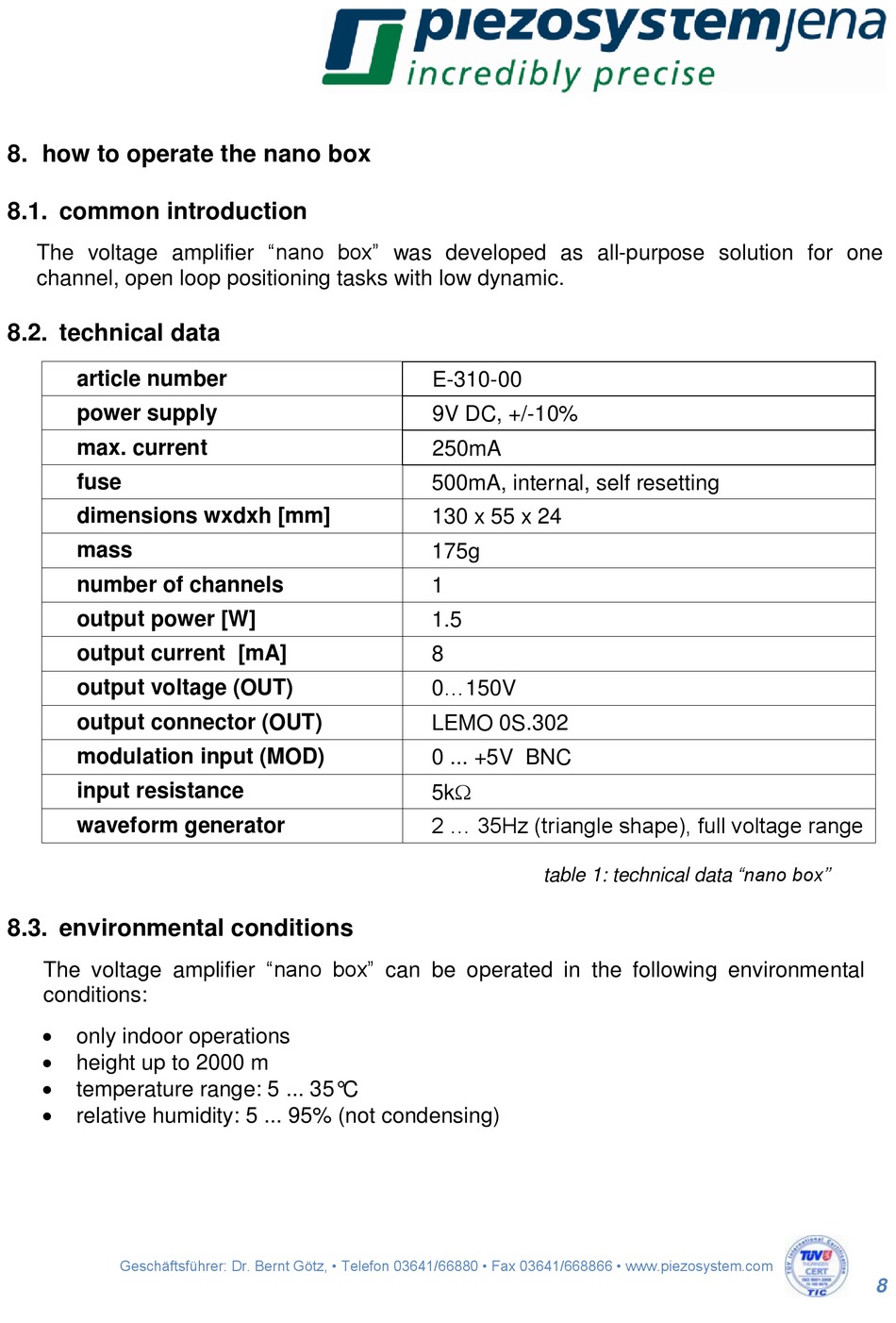

8. how to operate the nano box

8.1. common introduction

The voltage amplifier "nano box" was developed as all-purpose solution for one
channel, open loop positioning tasks with low dynamic.

8.2. technical data

article number
power supply
max. current
fuse
dimensions wxdxh [mm]
mass
number of channels
output power [W]
output current [mA]
output voltage (OUT)
output connector (OUT)
modulation input (MOD)
input resistance
waveform generator

8.3. environmental conditions

The voltage amplifier "nano box" can be operated in the following environmental
conditions:

only indoor operations

height up to 2000 m

temperature range: 5 ... 35°C

relative humidity: 5 ... 95% (not condensing)
Geschäftsführer: Dr. Bernt Götz, • Telefon 03641/66880 • Fax 03641/668866 • www.piezosystem.com
E-310-00
9V DC, +/-10%
250mA
500mA, internal, self resetting
130 x 55 x 24
175g
1
1.5
8
0...150V
LEMO 0S.302
0 ... +5V BNC
5k
2 ... 35Hz (triangle shape), full voltage range
table 1: technical data "nano box"
