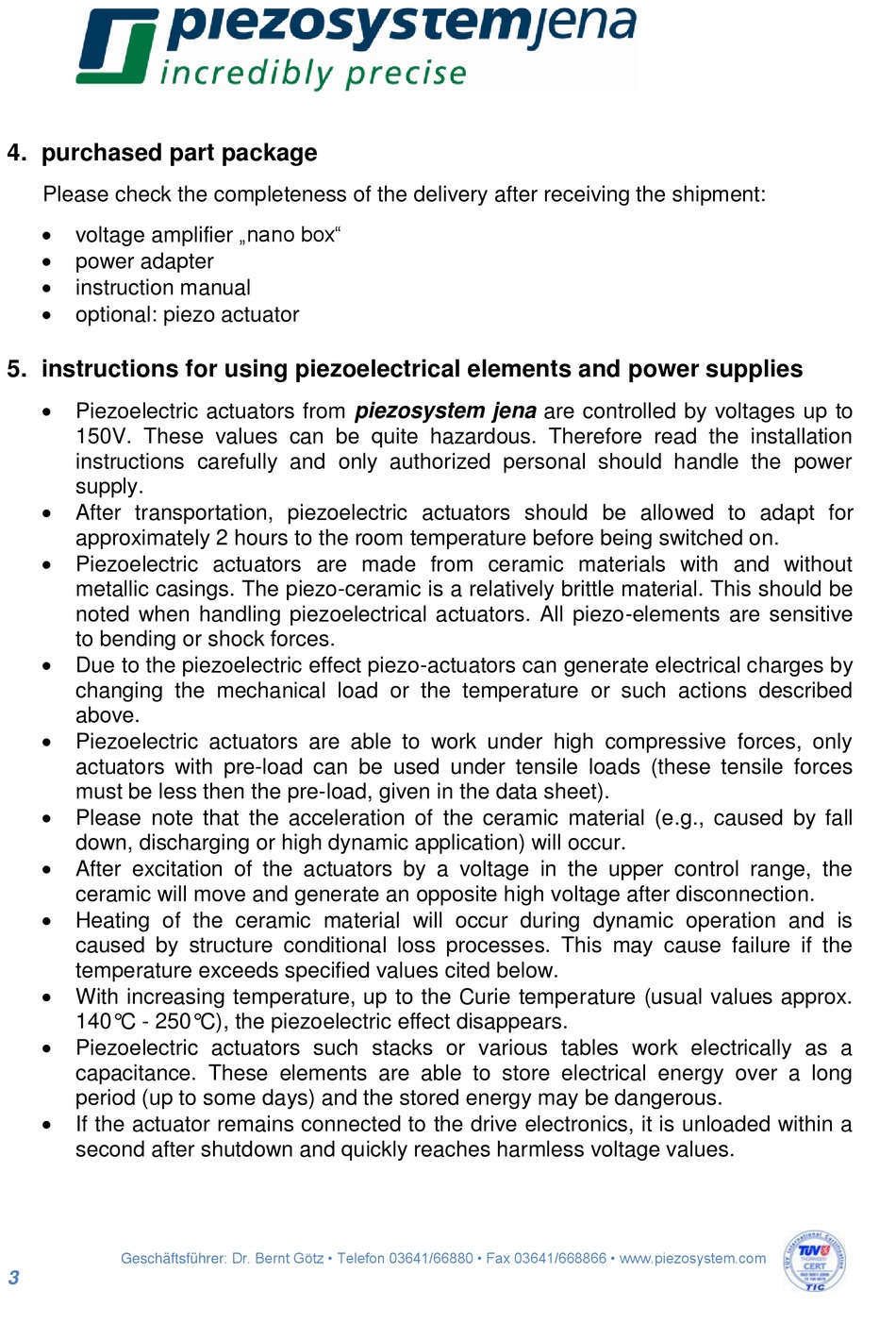

4. purchased part package

Please check the completeness of the delivery after receiving the shipment:

voltage amplifier „nano box"

power adapter

instruction manual

optional: piezo actuator

5. instructions for using piezoelectrical elements and power supplies


Piezoelectric actuators from piezosystem jena are controlled by voltages up to
150V. These values can be quite hazardous. Therefore read the installation
instructions carefully and only authorized personal should handle the power
supply.

After transportation, piezoelectric actuators should be allowed to adapt for
approximately 2 hours to the room temperature before being switched on.

Piezoelectric actuators are made from ceramic materials with and without
metallic casings. The piezo-ceramic is a relatively brittle material. This should be
noted when handling piezoelectrical actuators. All piezo-elements are sensitive
to bending or shock forces.

Due to the piezoelectric effect piezo-actuators can generate electrical charges by
changing the mechanical load or the temperature or such actions described
above.

Piezoelectric actuators are able to work under high compressive forces, only
actuators with pre-load can be used under tensile loads (these tensile forces
must be less then the pre-load, given in the data sheet).

Please note that the acceleration of the ceramic material (e.g., caused by fall
down, discharging or high dynamic application) will occur.

After excitation of the actuators by a voltage in the upper control range, the
ceramic will move and generate an opposite high voltage after disconnection.

Heating of the ceramic material will occur during dynamic operation and is
caused by structure conditional loss processes. This may cause failure if the
temperature exceeds specified values cited below.

With increasing temperature, up to the Curie temperature (usual values approx.
140°C - 250°C), the piezoelectric effect disappears.

Piezoelectric actuators such stacks or various tables work electrically as a
capacitance. These elements are able to store electrical energy over a long
period (up to some days) and the stored energy may be dangerous.

If the actuator remains connected to the drive electronics, it is unloaded within a
second after shutdown and quickly reaches harmless voltage values.
