INTRODUCTION

7 X 10 W RGBWA LED OUTDOOR SPOTLIGHT
CLPFLATPRO7G2
12 X 10 W RGBWA LED OUTDOOR SPOTLIGHT
CLPFLATPRO12G2
18 X 10 W RGBWA LED OUTDOOR SPOTLIGHT
CLPFLATPRO18G2
CONTROL FUNCTIONS
X 2-channel, 4-channel 1, 4-channel 2, 6-channel 1, 6-channel 2, 11-channel and 14-channel DMX functions
X Master / slave operation
X Standalone functions
X RDM
FEATURES
10 W 5-in-1 RGBWA LEDs. Protection class IP65. 3-pin IP65 DMX connections. True 1-compatible mains connections IN and OUT. OLED
display. Flicker-free operation through adjustable PWM frequency. Silent due to convection cooling. Operating voltage 100–240 V AC.
The spotlights feature the RDM standard (remote device management). Remote device management allows the user to view the status and
configuration of RDM terminals via an RDM-capable controller.

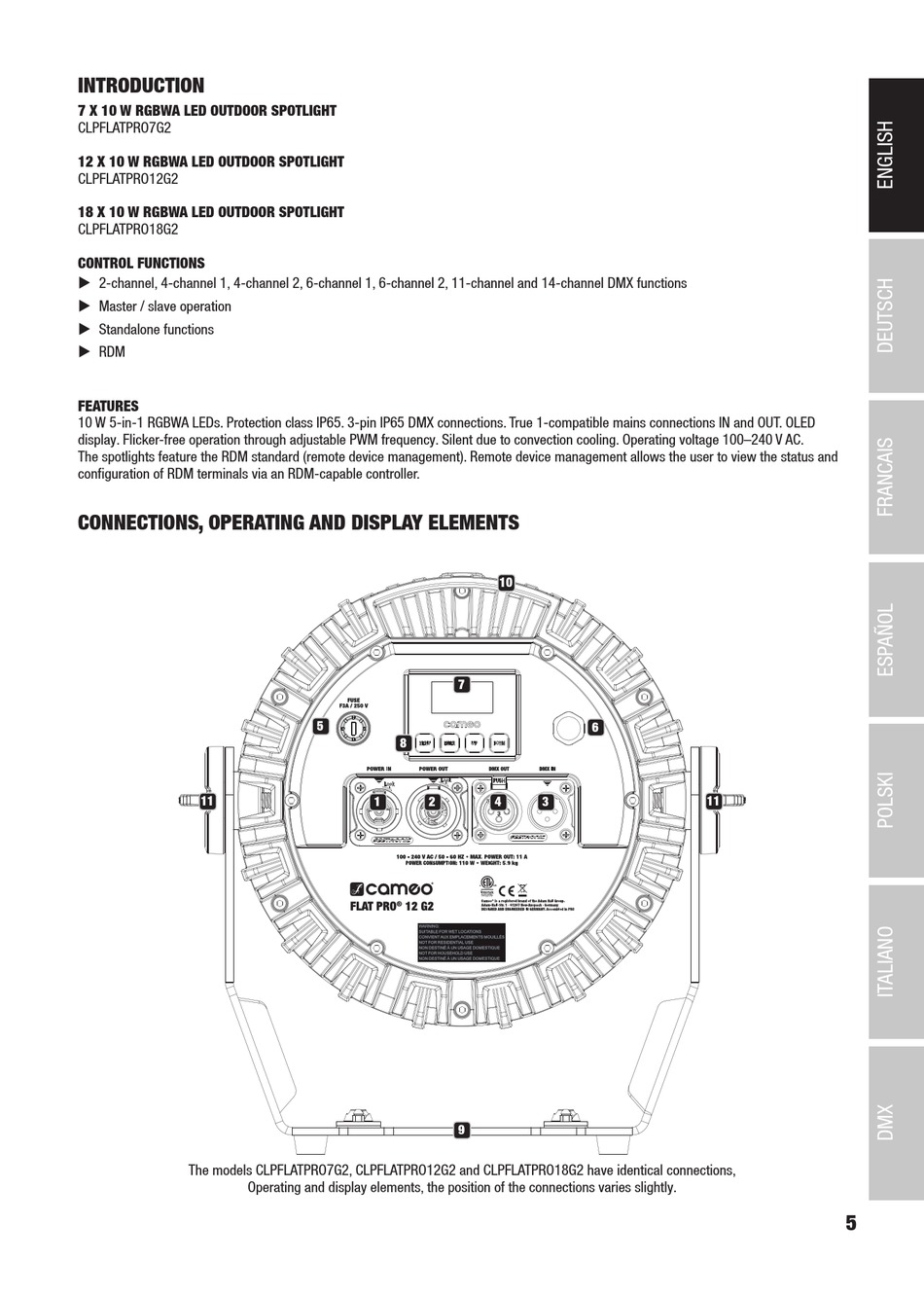

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

11
The models CLPFLATPRO7G2, CLPFLATPRO12G2 and CLPFLATPRO18G2 have identical connections,
Operating and display elements, the position of the connections varies slightly.
5
8
1
文件 号 制 人
Y37701-016
10
7
6
2 4 3
9
蔡杰 版 本 号
11
品 印 准制
DY00
5
