The software can be updated by your sauna retailer via the USB port of the Touch. Please find out about
software updates available.
A suitable USB stick for the wave.com4 touch operating unit is optionally available (WC4-USB-M):
1 Operating and display elements
On/off button
1
When the button is illuminated in white, the
system is in standby mode.
Button c
2
OK button
3
Touch Wheel (navigation wheel)
4
Shortkey MP3 player volume
5
Shortkey MP3 player track forwards
6
Shortkey MP3 player play/pause
7
Line-In 3.5 mm jack stereo
8
USB connection
9
Display
A
LED wheel illumination (with progressive
B
finger rotation movement dots illuminate in the
LED circle
Downloaded from www.Manualslib.com
Operating instructions for the user
WE DO IT FIRST.
manuals search engine
11
9

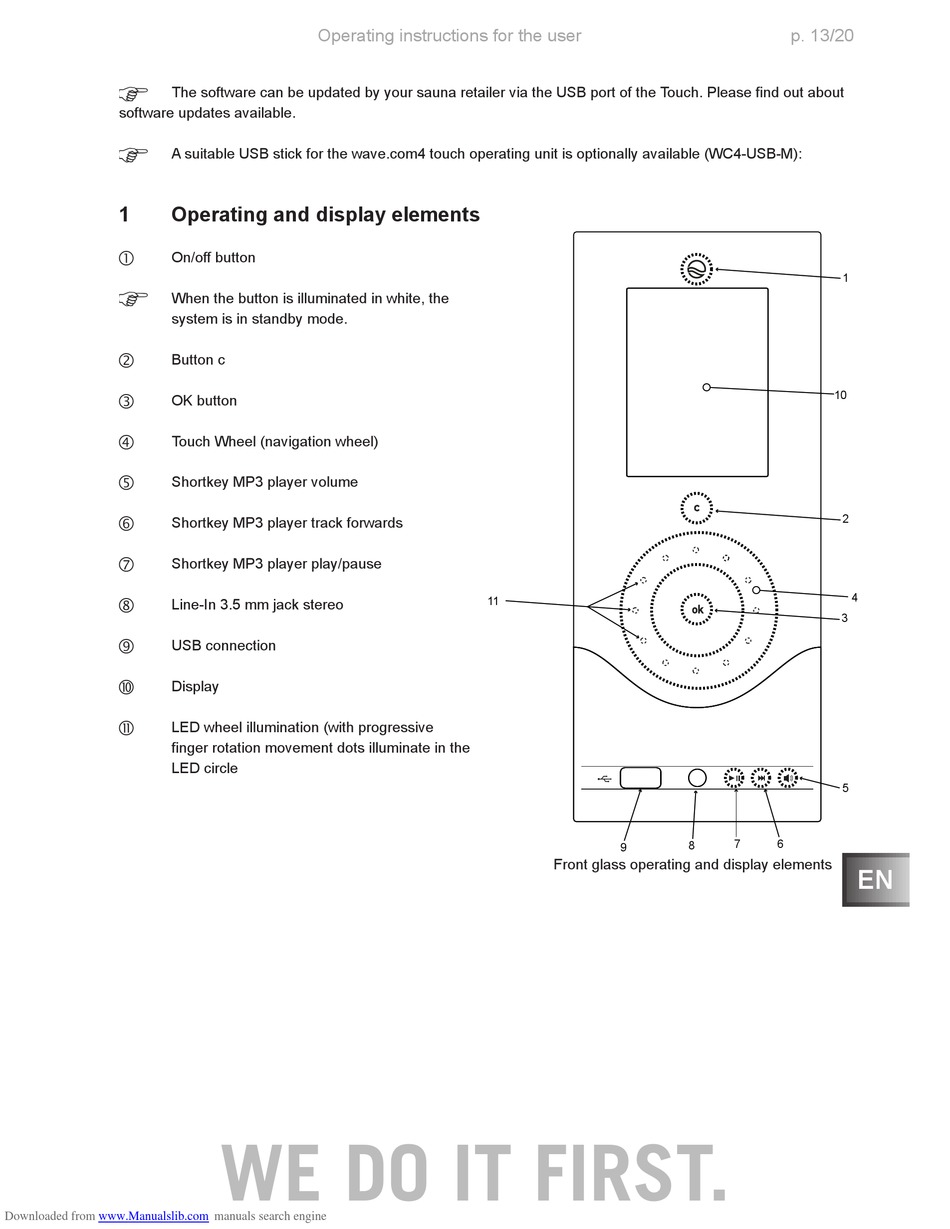

Front glass operating and display elements
p. 13/20
1
10
2
4
3
5
7 6
8
