Assembling Instructions for Specialist Staff Only p. 6/20
4

Installation of the operating unit

3,5
36 92
39,5
82

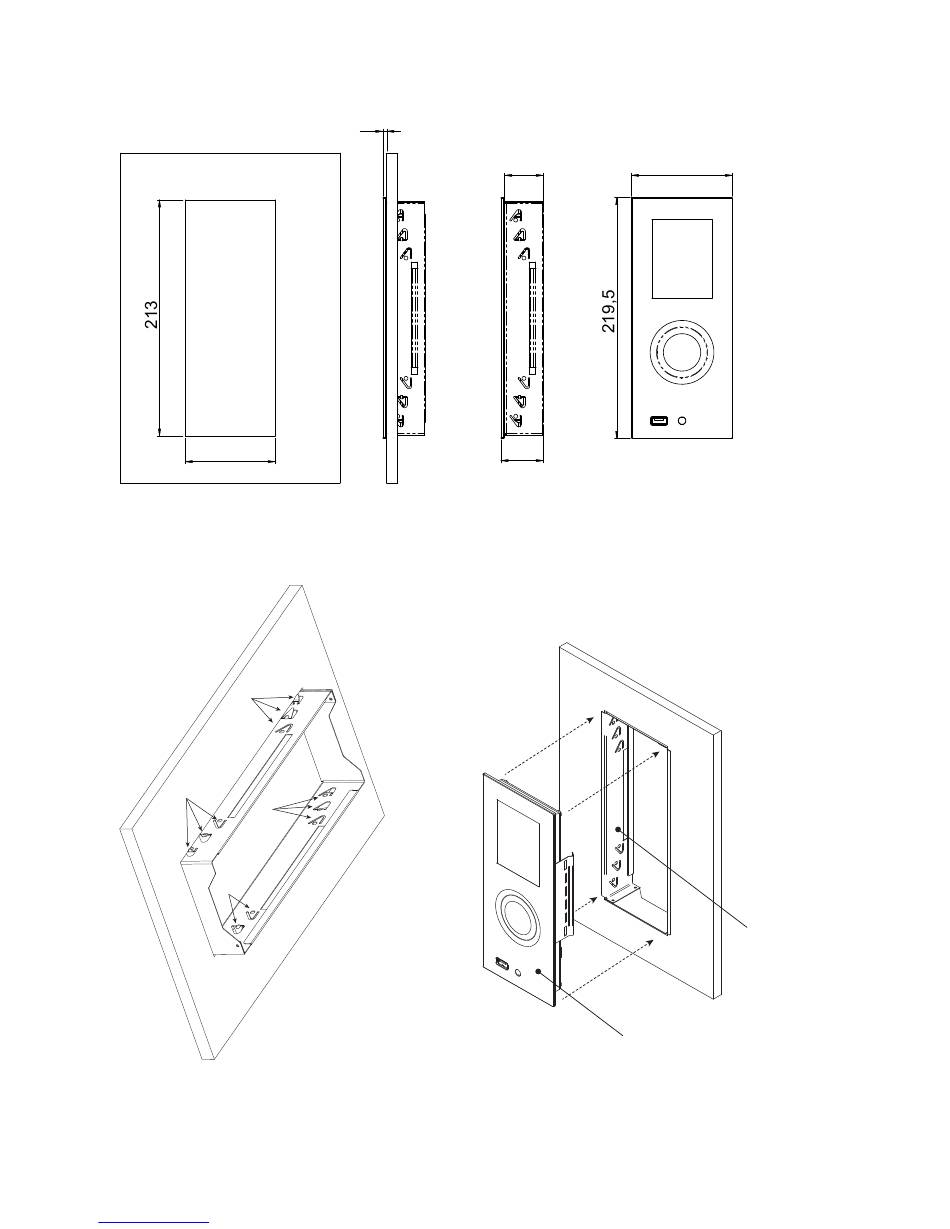

Dimensions
A cutout of 213 mm x 82 mm must be allowed for the installation of the wave.com4 touch operating unit, into
which the mounting frame B is inserted. Bend the brackets C with a screwdriver as illustrated in the figure to fix
the frame. The installation depth of the wave.com4 touch operating panel is 36 mm.
C
C
C
C
B
A
Mounting of installation frame
Insertion of the operating unit into the mounting frame
After the wiring (see wiring section) insert the operating unit A into frame B as illustrated in the figure.
WE DO IT FIRST.
