5 Electrical connection only for qualified personnel
Also heed the instructions for use and installation of the power elements used.

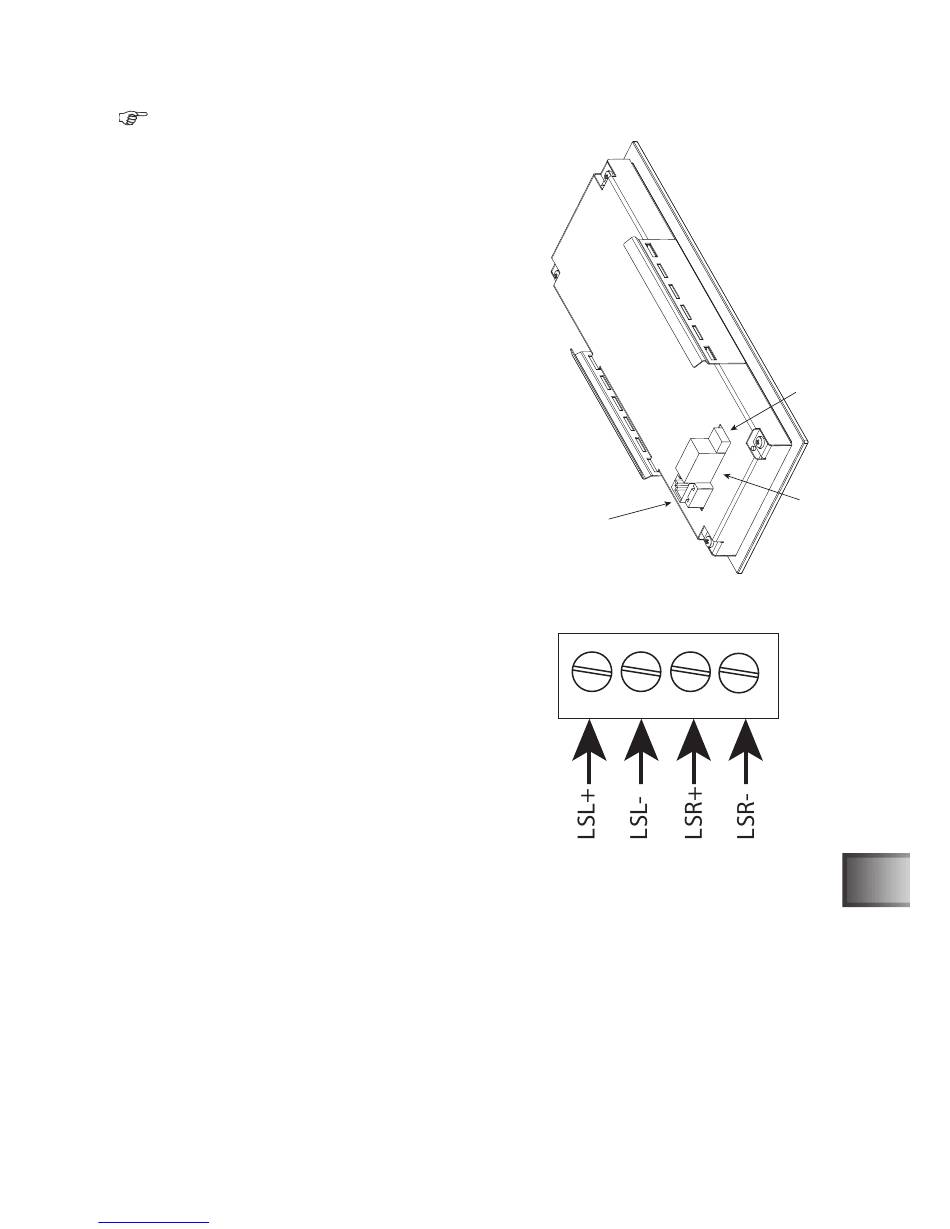

Rear view of the wave.com4 touch
The individual modules are connected to each other via 6-pin
RJ12 cables.
On the operating unit, the bus cable is inserted into socket A.
See also block wiring diagrams.
The loudspeakers are connected via the terminal block C.
Connection of loudspeaker and terminal assignment
LSL+
LSL-
LSR+
LSR-
When the sound & light is used with the wave.com4 touch, the
loudspeakers must be connected to the wave.com4 touch
(terminal block C). Use of the MP3 player integrated into the
sound & light and the amplifier is not possible.
LSL+ Loudspeaker left +
LSL- loudspeaker left -
LSR+ loudspeaker right +
LSR- loudspeaker right -
Switch B is currently not in use and reserved for subsequent applications.
