Configuration of power elements for connection
to the wave.com4 touch

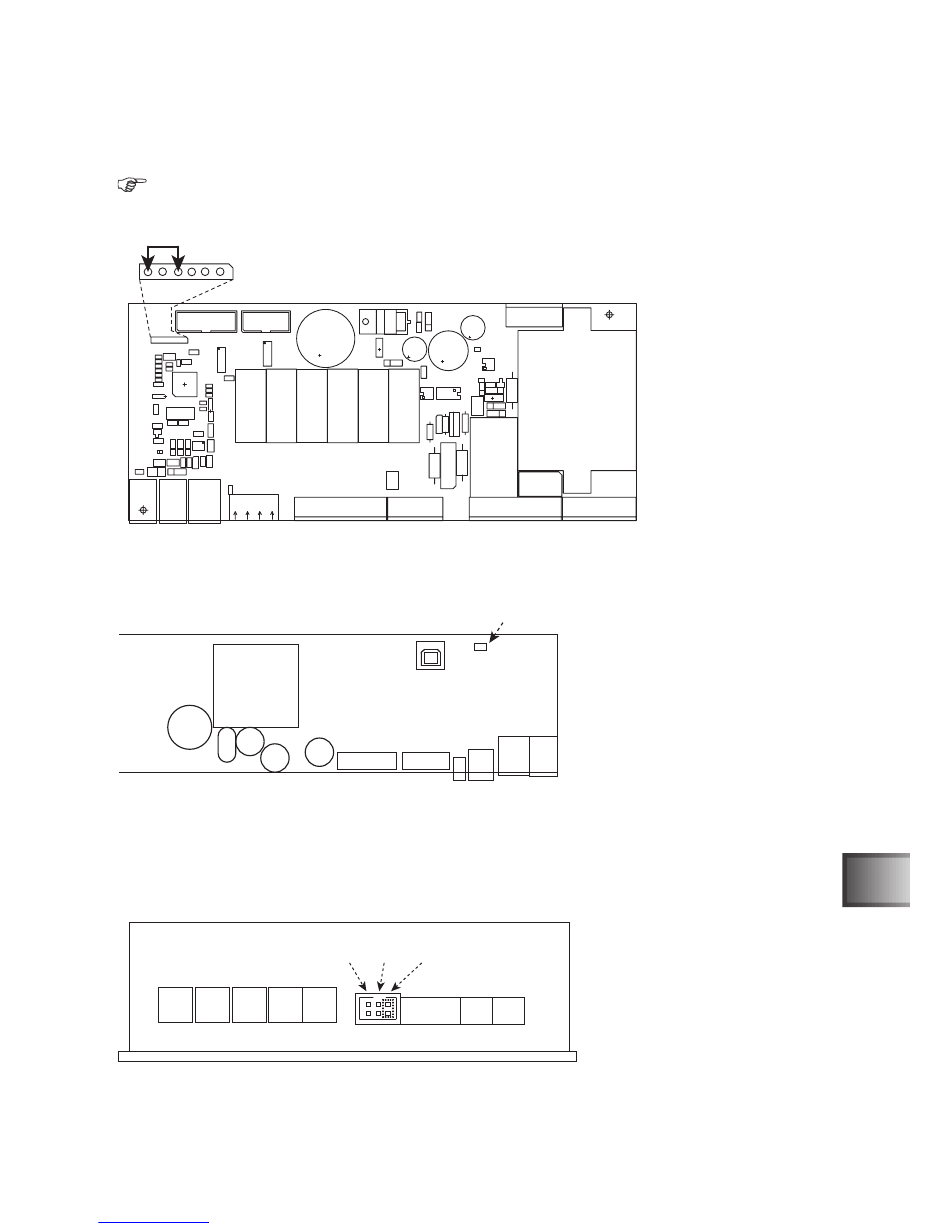

wave.com4 sauna basic module WC4-B-L
wave.com4 sauna basic modules (WC4-B-L) manufactured before 12/2011 are not compatible with the
wave.com4 touch. The necessary software update can only be executed in the factory.
JPBM
The Jumper JPBM is included in the wave.com4 touch scope of supply. Use these in the 6-pin female connector
strip as shown in the figure.
sound & light WC4-SL-L
The factory-set Jumper JPSL must remain in its position.
If several sound & lights (up to four devices are possible) are used, contrary to the information in the instructions
for use and installation, the Jumper JPSL must remain in its position in all devices connected to the bus.
wave.com4 Infra WC4-IRX-P
Den der wave.com4 touch beiliegenden Jumper bei Stiftwanne OPT3 auf JP1 setzen. Bei Verwendung von
mehreren (bis zu vier Geräte möglich) wave.com4 Infra Leistungsteilen, entnehmen Sie die Konfiguration der
Bedienungs- und Montageanleitung der wave.com4 Infra.
Downloaded from
www.Manualslib.com
Assembling Instructions for Specialist Staff Only
OPT3
JP3 JP2 JP1
WE DO IT FIRST.
manuals search engine
Jumper basic module
JPSL
Jumper SL
Jumper Infra
