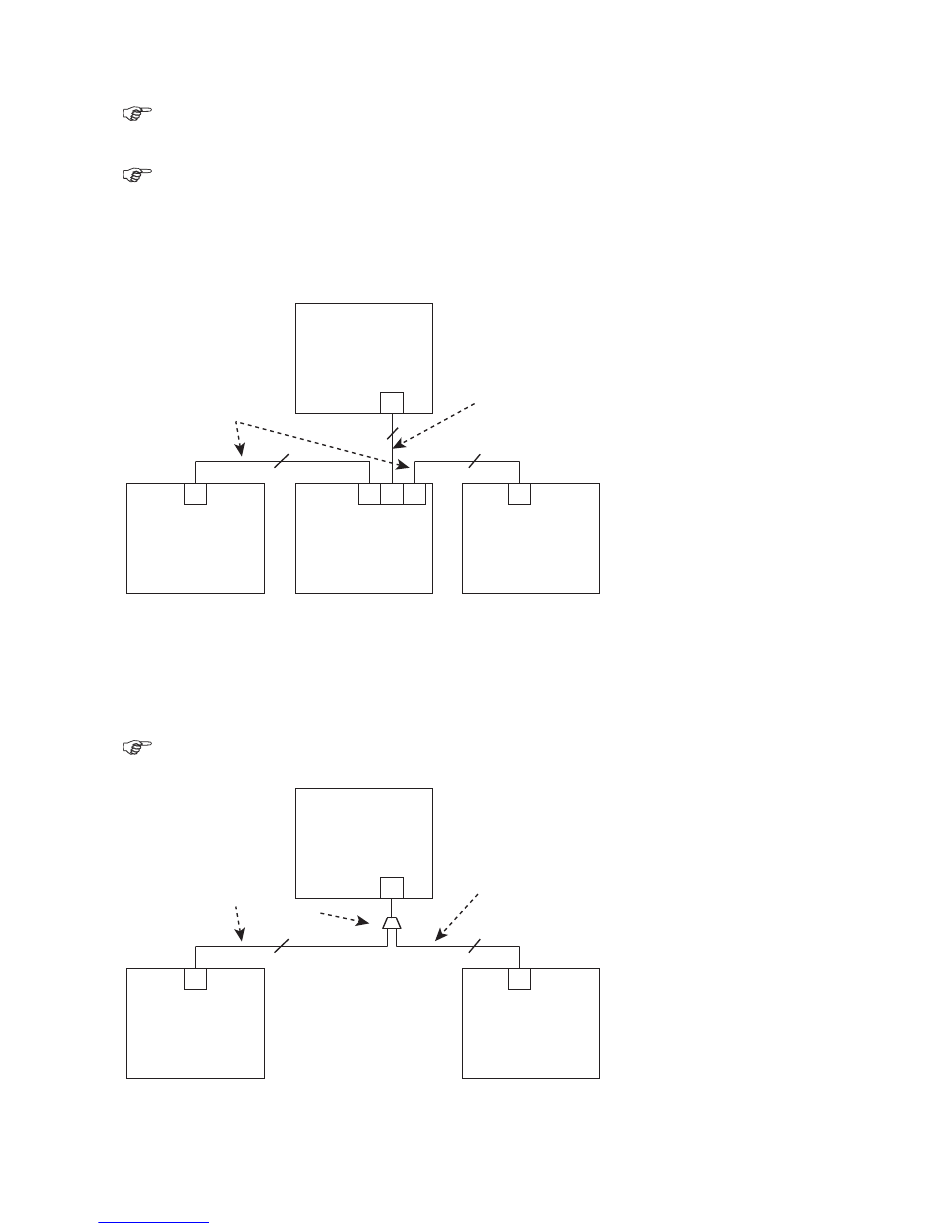

Block wiring diagrams
wave.com4 Sauna basic modules (WC4-B-L) manufactured before 12/2011 are not compatible with the
wave.com4 touch. The necessary software update can only be performed at the factory.
The internal operating units are not compatible with the wave.com4 touch!
The individual devices are connected via the 6-pin RJ12 cables (D and E). A connection cable D is contained in
the scope of supply of the wave.com4 touch operating unit. An O-CX-C10 (E) connection cable must be ordered
for each power element for the connection of several power elements.
BUS
Wave.com4
Sound & Light
Block wiring diagram full upgrading
If only the wave.com4 sound & light and the wave.com4 sauna basic module are used, a Y-connector F is also
required. This is contained in the WC4-SL-EXT.
The data cable E is also included in the WC4-SL-EXT set.
BUS
Wave.com4
Sound & Light
Block wiring diagram sound & light with wave.com4 sauna
