Exsys EX-44374 Bedienungsanleitung

EX EX- EX - - 44374 44374 44374
JUMPER SETTING & CONNECTORS
J7:
1 +5V
For aux power (JP2) J7 must be connected to pc power supply!
2 GND
3 GND If not, the card wont work.
4 +12V
DB 9M:
Seriell 9 Pin D-SUB male connector
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
DB 44F:
44 Pin D-Sub female connector
Pin Signal Pin
1 TXD 4 16
2 RXD 4 17
3 RTS 4 18
4 — 19
5 TXD 3 20
6 RXD 3 21
7 RTS 3 22
8 — 23
9 TXD 2 24
10 RXD 2 25
11 RTS 2 26
12 — 27
13 TXD1 28
14 RXD1 29
15 RTS 1 30
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation instruc-
tions. Because there are large differences between PC's, we can give you only a general installa-
tion guide for the EX-44374. Please refer to your computer's reference manual whenever in
doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer
and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the PCI-Express slot and then gently but firmly, insert the card. Make
sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
5
English English English EX- EX EX - - 44374 44374 44374
DRIVER INSTALLATION
Windows 2000/ XP/ Vista/ 7:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware assis-
tant. Please choose manual installation and put the driver CD into your CD-Rom drive. Now
enter the Path "D:\IO\OXFORD2\" and then the directory of your operating system "2000"
"XP32" "XP64" "Vista32" "Vista64" "Win7_32bit" or "Win7_64bit" into the box for the
Path/Source and click at >next/continue<. Now Windows search for the drivers in the speci-
fied directory. Follow the hardware assistant and finish the installation. If Windows recognizes
other new devices repeat the above described steps. Attention! Restart your PC in any case
after installing the drivers.
Signal Pin Signal
DTR 7 RTS
CHECK THE INSTALLED DRIVER:
8 CTS
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
DSR 9 RI
new "PCI Ports" as sample (Com3). If you see this or similar entries the card is installed
correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
Signal Pin Signal
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 till
CTS 4 31 DCD 4 COM256.
DTR 4 32 RI 4
Windows Server 2000/ 2003/ 2008:
DSR 4 33 GND
After starting Windows it recognizes a new "PCI Controller" and opens the hardware assis-
— 34 —
tant. Please choose manual installation and put the driver CD into your CD-Rom drive. Now
CTS 3 35 DCD 3
enter the Path "D:\IO\OXFORD2\" and then the directory of your operating system for Server
DTR 3 36 RI 3 2000: "2000" for Server 2003: "XP32" or "XP64" for Server 2008: "VISTA32" or "VISTA64"
and for Server 2008R2: "Win7_32bit" or "Win7_64bit" into the box for the Path/Source and
DSR 3 37 GND
click at >next/continue<. Now Windows search for the drivers in the specified directory.
— 38 —
Follow the hardware assistant and finish the installation. If Windows recognizes other new
devices repeat the above described steps. Attention! Restart your PC in any case after install-
CTS 2 39 DCD 2
ing the drivers.
DTR 2 40 RI 2
CHECK THE INSTALLED DRIVER:
DSR 2 41 GND
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
— 42 DCD 1
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
CTS 1 43 RI 1
new "PCI Ports" as sample (Com3). If you see this or similar entries the card is installed
correctly.
DTR 1 44 GND
DSR 1
CHANGE PORT NUMBER:
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 till
COM256.
LINUX:
The drivers are located in the following folder on our driver CD:
"D:\IO\OXFORD2\LINUX"
Because each individual distribution and kernel version of Linux is different, sadly we cant
provide a installation instruction. Please refer to the installation manual for standard I/O ports
from your Linux version! In some newer versions of Linux the card will even be installed auto-
matically after starting Linux.
English English English

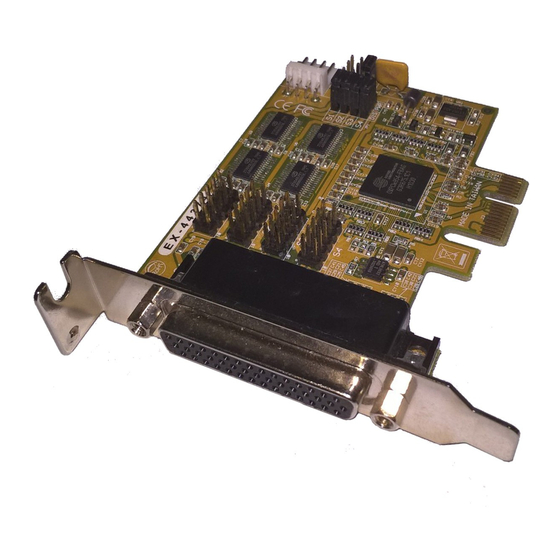

Die EX-44374 ist eine PCI-Express serielle RS-232 Karte mit 4 seriellen FIFO 16C95x Port, für
den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B. Terminal, Modem,
Plotter usw.). Der serielle PCI-Express Bus unterstützt dabei optimal die Leistung des schnel-
len 16C95x Chipset mit 128byte FIFO Cache. Die EX-44374 gewährleistet so eine sichere
Datenübertragung und exzellente Performance von bis zu 921KBaud/s für jedes angeschlos-
sene Gerät! Sie unterstützt alle PCI-Express Slots von x1 bis x16. Es ist nicht möglich die I/O
Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte vom System
(BIOS) und beim installieren des Betriebssystems automatisch vorgenommen werden. Über
die Jumper können Sie 12V oder 5V auf Pin 9 des seriellen Anschlusses umleiten. Achten Sie
bitte darauf dass die Angeschlossenen Geräte dies auch unterstützen. Es wird zusätzlich ein 8
cm LowProfile Slot-Bügel mit geliefert für den Einbau in schmale Computergehäuse.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JP1:
JP2:
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.2 / 08.11.12
AUFBAU
S1-S4: Interne Serielle Anschlüsse
S1-S4:
44 Pin Buchse für
Octopus-Kabel mit
4 x 9 Pin Serielle Anschluss
Seriell Chip 16C95x
mit 128-Byte Buffer
BESCHREIBUNG & TECHNISCHE DATEN
PCI Express x1 bis x16
Windows 2000/ Server 2000 & 2003 & 2008/ XP/ Vista/ 7/ Linux
4x 9 Pin Seriell D-Sub Stecker
EX-44374, Treiber CD, Anleitung, Octopus Kabel, LowProfile Bügel
CE CE CE CE / FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE
DIS = Am Pin 9 liegt das Standard Signal RI (Ring Indicator) an.
(Werkseinstellung)
S1
PWR = Am Pin 9 kann jetzt eine Spannung von DC5V oder DC12V
S2
eingestellt werden.
S3
S4
Die Einstellung der Spannung nehmen Sie mit JP2 vor. Dieser sollte
DIS | PWR
aber bei Standard Anwendungen nicht verstellt werden.
Wenn Sie den Jumper JP1 für S1 & S2 auf PWR gesetzt haben, können
Sie mit dem JP2 den Spannungswert einstellen. Es gibt 3 verschiedene
Spannungsquellen. (Nur in Verbindung mit JP1 auf PWR!!!)
X5V
X12V
I12V X 5V = 5Volt vom PC-Netzteil
X 12V = 12Volt vom PC-Netzteil
I 12V = 12Volt vom Mainboard (STANDARD)
1
J7: Stromanschluss
für PC Netzteil
JP2: Jumper für die
Stromquelle (Netzteil
oder PCI-Express
Bus)
JP1: Power auf 9 Pin
Stecker Ein/Aus
