Exsys EX-1062 Bedienungsanleitung

EX EX- EX - - 1062 / EX 1062 / EX 1062 / EX- - - 1064 / EX 1064 / 1064 / EX EX- - - 1065 1065 1065
JUMPER SETTING & CONNECTORS
J1-J4 (EX-1064/EX-1065):
J1-J2 (EX-1062):
USB 2.0 Pin's
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA- 4 GND
J5:
USB 2.0 - 10 pin connector (Default)
Pin Signal Pin
2
+5VCC 1
+5VCC
4 1 VCC1 +5V 5
Data1- 3
Data2-
5
Data1+ 6
Data2+
2 VCC2 +5V 6
7
GND
8 GND
3 DATA1- 7
9 10 GND
4 DATA2- 8
Attention!!!
Please make sure that you connect the cable in the right
order like shown in the list above. If you connect the
cable wrong it can destroy your hardware! The labelling
on the cable must match with the ones on our card.
*Only for EX-1064 / EX-1065:
If you use the internal A-Port J4 you can use only one of
the ports from the 10 pin connector J5!
Only EX-1064 / EX-1065:
PCI = Power from PCI-BUS (Default)
JP2:
AUX = Power from PC Power Supply
AUX
(For safe direct power from pc power supply to provide
PCI
sufficient power for devices with high power consumption).
Connector J6 must be connected with PC power supply!
J6:
If JP2 is set to AUX, J6 must be connected with pc power
1 +5V
supply! Please make sure you connect the plug in the
2 GND
3 GND right direction! Never connect or release the plug while
4 +12V
the PC power is on!
HARDWARE INSTALLATION
Attention! If you use Windows ME / Windows 2000 without service pack 4 or XP without
service pack. Please install the latest service pack first.
If you use Windows 2000 including service pack 4, Windows XP including SP 3, Vista, 7
or 8. Or you already installed the drivers please proceed with the following instructions
for hardware installation.
If you are ready with the jumper settings, please proceed with the following installation instructions.
Because there are large differences between PC's, we can give you only a general installation
guide for the card. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. If your pc case do have a front panel please follow the instructions at J5 above. Normally
the cables should be marked if not please ask the front panel manufacturer
4. If necessary please install now the external power supply to the card like shown at JP2 & J6
above.
5. Locate an available PCI expansion slot and remove its covers from the rear panel of your
computer.
6. Align the card with the expansion slot, and then gently but firmly, insert the card. Make sure
the card is seated and oriented correctly.
7. Then connect the card with a screw to the rear panel of the computer.
8. Gently replace your computer's cover and the mounting screws.
5
English English English EX- EX EX - - 1062 / EX 1062 / EX 1062 / EX-
DRIVER INSTALLATION
All OS
After the hardware installation the OS will recognize the device automatically and install the
drivers.
Attention!
Never plug in with force
CHECK INSTALLED DRIVER
or in wrong direction.
Open as sample the >Device manager< . Now you should see at „USB Devices" the following
new entrys: <USB Root Hub>.
If you see this or a similar information the device is installed correctly.
Signal Pin Signal
NEC Drivers (optional)
DATA1+ 9 NC
If you experience any performance problems or if you want to use older operating systems
DATA2+ 10 GND
which doesn't support USB 2.0 such as Windows 98SE. You can download the driver at our
website www.exsys.ch. Then you can install the optional NEC Drivers as follows.
GND
GND
Open and run the file "U2v2_1.exe" by double click on your mouse and follow the setup
program to finish installation process. After that shut down windows and follow the instructions
for the Hardware installation. After installing the card simply start your computer and the card
will be recognized automatically by your system.
- - 1064 / 1064 / EX 1064 / EX EX- - - 1065 1065 1065 English English
6
English
Bedienungsanleitung Bedienungsanleitung
Vers. 1.5 / 10.04.13
AUFBAU
EX-1062
J1-J2:
2 x USB 2.0 Port
J6: Anschluss vom Netzteil für
EX-1064
J1-J3:
3 x USB 2.0 Port
J6: Anschluss vom Netzteil für
EX-1065
+5V oder +12V Spannung
J1-J3:
3 x USB 2.0 Port
BESCHREIBUNG & TECHNISCHE DATEN

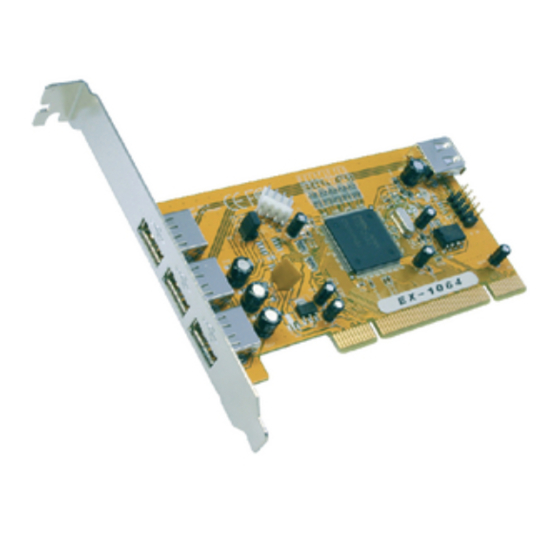

Die EX-1064 / EX-1065 ist mit 3 externen und 1 internem Port ausgestattet. Die EX-1062 ist
mit 2 externen und 1 internen 10Pin Downstream Stecker ausgestattet. Der serielle PCI Bus
unterstützt optimal die Leistung des schnellen NEC Chipset. Die USB Karten gewährleisten so
eine sichere Datenübertragung und exzellente Performance von bis zu 480Mbit pro Sekunde!
Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen
der Karte vom System (BIOS) und beim installieren des Betriebssystems automatisch vorge-
nommen werden. Die USB 2.0 PCI Karten sind voll kompatibel mit Microsoft Windows Stan-
dard OpenHCD Treibern und sind nach den Normen des USB Rev. 2.0 entwickelt worden. Sie
haben einen Dual Speed USB Transceiver. Sie unterstützen den 32- und 64-Bit PCI-Bus mit 5
Volt und 3,3 Volt. Die EX-1065 ist eine Low Profile Karte mit einem kurzen 8cm Bügel.
Kompatibilität: PCI 32-Bit, 3,3V & 5Volt
Betriebssysteme: WIN 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server 20xx/ MAC/ (Linux vom OS)
Anschlüsse:
EX-1064 / EX-1065 3x USB A-Buchse extern, 1x USB A-Buchse intern, 1x 10 Pin Stecker
EX-1062 2x USB A-Buchse extern, 1x 10 Pin Stecker
Lieferumfang: EX-1062 oder EX-1064 oder EX-1065, Anleitung
Zertifikate: CE CE CE CE / FCC / RoHS / WEEE
J5: USB Port 3 & 4
für Front Anschluss
NEC Chip-Set
+5V oder +12V Spannung
J4: 1 x interner
USB 2.0 Port
J5: USB Port 3 & 4
für Front Anschluss
NEC Chip-Set
JP2: Stromquelle wählen
PCI oder AUX
J4: 1 x interner
USB 2.0 Port
J5: USB Port 3 & 4
für Front Anschluss
NEC Chip-Set
JP2: Stromquelle wählen
PCI oder AUX
DE97424562 / WHQL
