EX-44354

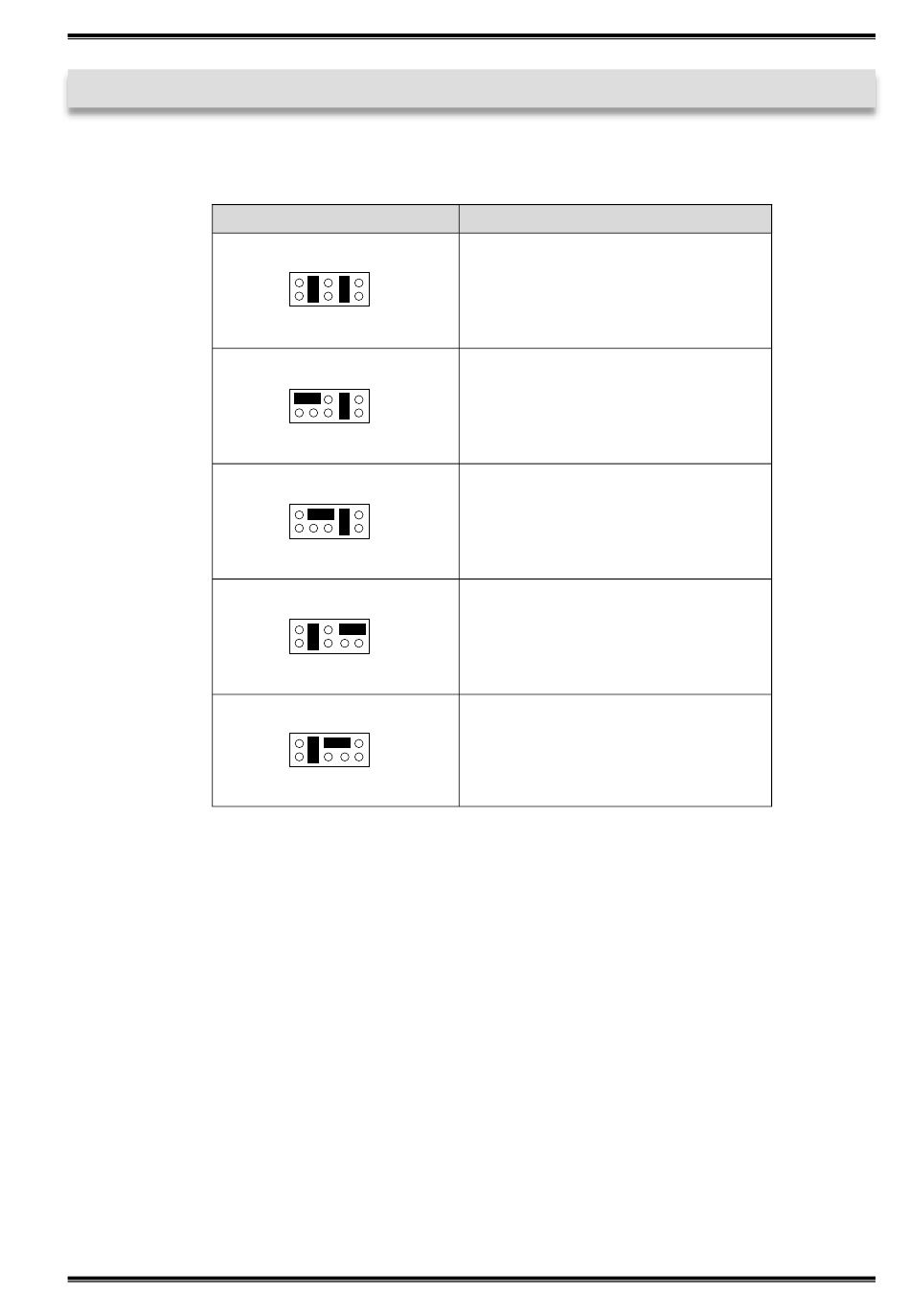

4. Jumper Settings
JP3_S1-JP2_S4:
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
JP3_S1-JP2-S4
5V P#1 12V P#9 5V
DCD RI
5V P#1 12V P#9 5V
DCD RI
5V P#1 12V P#9 5V
DCD RI
5V P#1 12V P#9 5V
DCD RI
5V P#1 12V P#9 5V
DCD RI
Jumper Setting
No Power Supplied on Pin1 or Pin9
Pin1= DCD
Pin9= RI
(Factory Setting)
+5V to Pin1
+12V to Pin1
+5V to Pin9
+12V to Pin9
