NE210
Reset
Start, A
Stop, B
Preset
Zero
Output
Reset
Start, A
Stop, B
Preset
Zero
Output
Reset
Start, A
Stop, B
Preset
Zero
Output
40
Downloaded from
www.Manualslib.com
5.4
Using the counter as a time counter with preset
Function The time counter with reset is used to control maintenance intervals,
mixing times, etc. Use of the counter as a time counter is establihed
in programming line 3. The four timescales are selected in program-
ming line 9. The decimal point is set automatically.
The operating mode and consequent counting direction are selected
with DIP-switch 1. Resetting with a pulse signal or continuous signal
is effected with DIP-switch 2.
Start input Track A (terminal 7) in time counting mode
Stop input Track B (terminal 8) in time counting mode
The decimal point setting in programming line 1 remains ineffective.

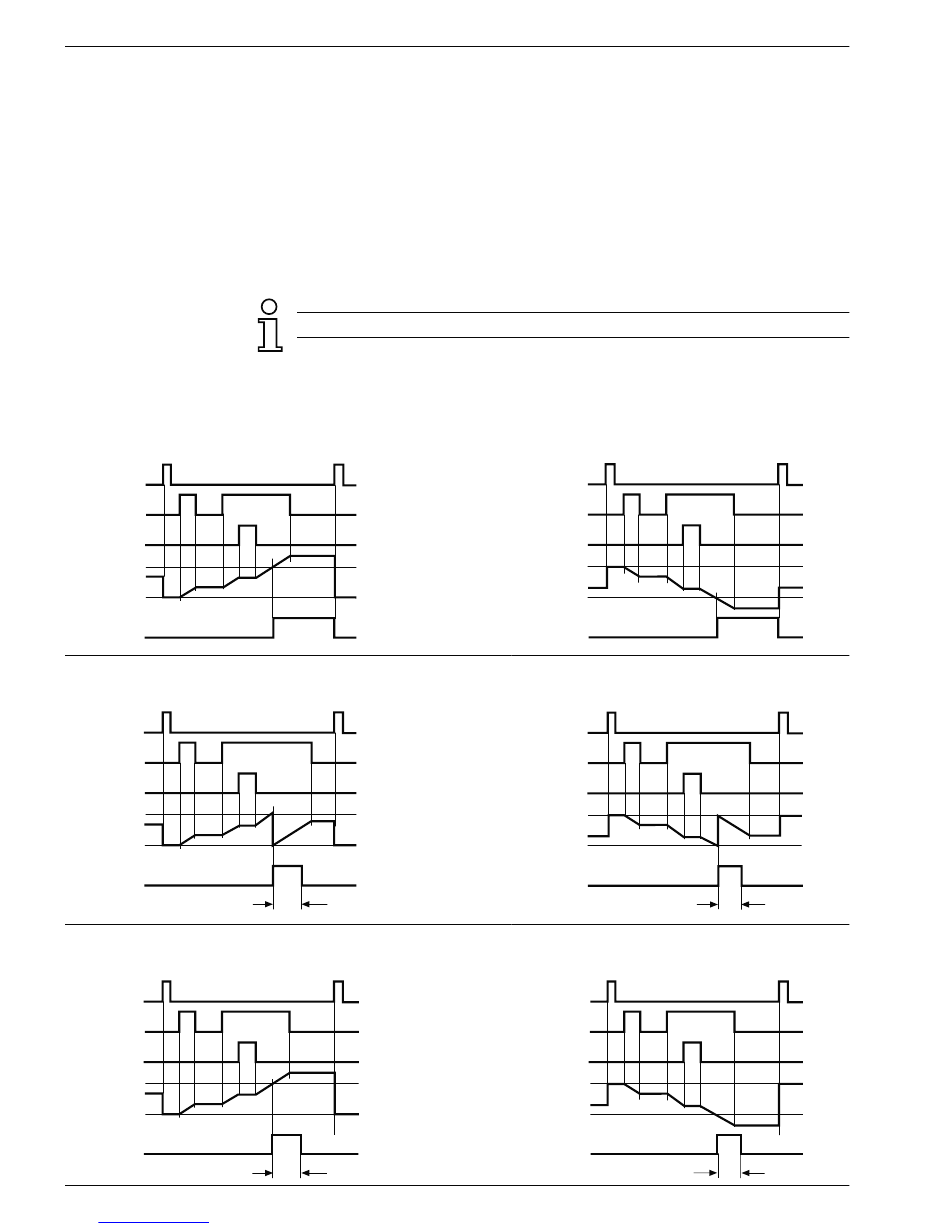

The diagrams below show the output responses as a function of the
signal inputs.
External reset with continuous signal
DIP-switch 2 = ON / programming line 12 = 0
Automatic reset with pulse signal
DIP-switch 2 = OFF
Tw
External reset with pulse signal
DIP-switch 2 = ON / programming line 12 = 1
Tw
www.baumer.com
manuals search engine
Reset
Start, A
Stop, B
Preset
Zero
Output
Reset
Start, A
Stop, B
Preset
Zero
Output
Reset
Start, A
Stop, B
Preset
Zero
Output
Tw
Tw
