LERBAKKEN 10, 8410 RØNDE DENMARK.
For safe installation of 6331A or the 6334A the following must be observed. The module shall only
be installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
IECEx Certificate
Marking
Standards
T4: -40ºC to 85 ºC
T6: -40ºC to 60 ºC
Terminal:
41,42,43,44 /
51,52,53,54
Ex nA [ic]
Uo: 9.6 VDC
Io: 25 mA
Po: 60 mW
Lo: 33 mH
Co: 2.4 μF
Revision date:
2014-06-20
14

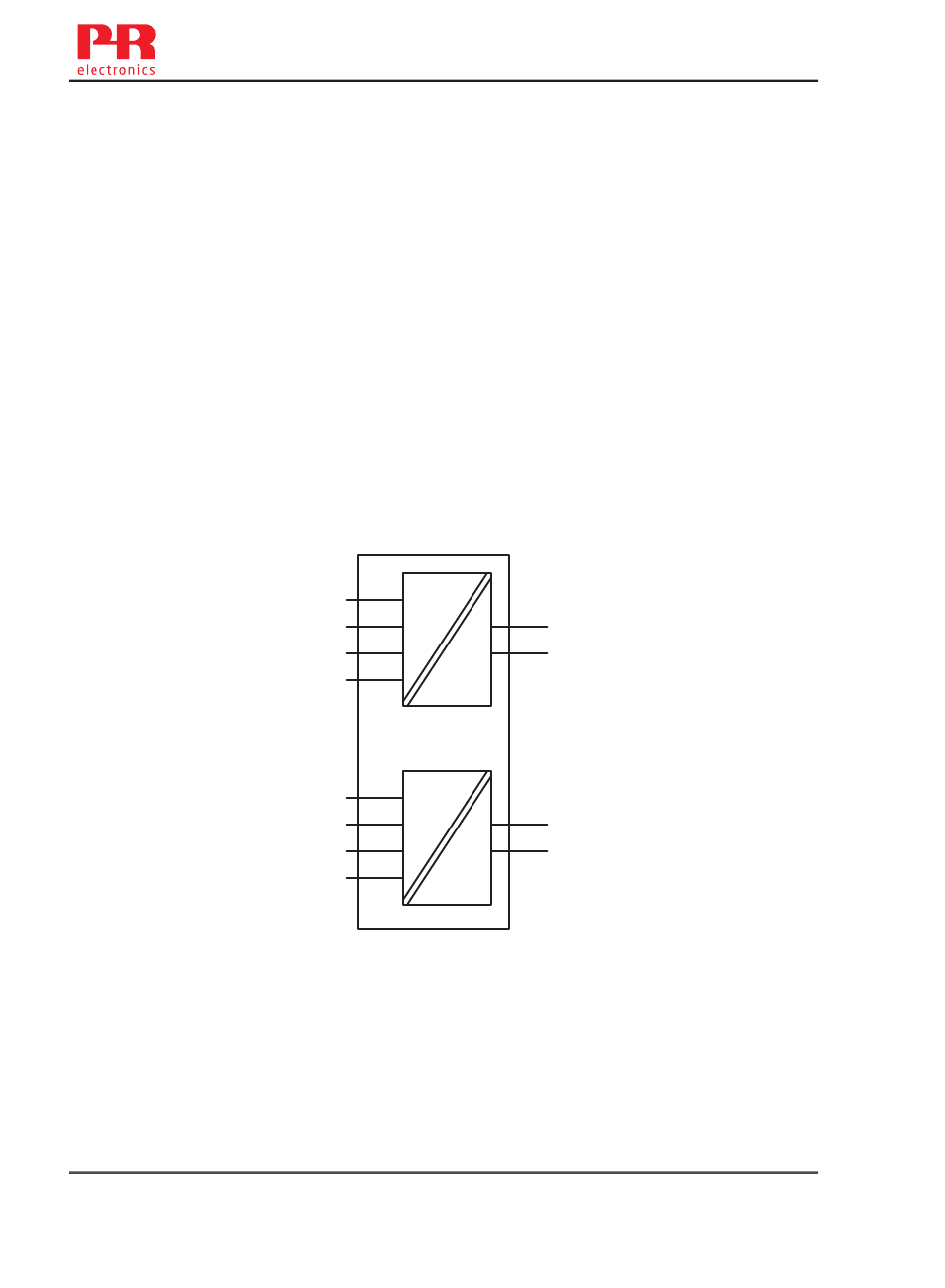

IECEx Installation drawing
IECEx DEK 14.0047X
Ex nA [ic] IIC T6..T4 Gc
Ex ic IIC T6..T4 Gc
Ex ic IIIC Dc
IEC 60079-0 : 2011, IEC 60079-11 : 2011, IEC 60079-15 : 2010
44
43
42
41
54
53
52
51
6331 / 6334
Version Revision
V2R0
6331V107-DE
WWW.PRELECTRONICS.COM
Hazardous Area Zone 2
+
13
Terminal:
-
11-13 / 21-23
11
Ex nA
CH1
Umax ≤ 35 VDC
Ex ic
Ui = 35 VDC
Li = 10 μH
Ci = 1.0 nF
+
23
-
21
CH2
6331QI02
Page:
1/2
