PR electronics PRelevel 5343 Bedienungsanleitung

Isolation
Galvanic isolators for analogue and digital
signals as well as HART ® signals. A wide product range
with both loop-powered and universal isolators featuring
linearisation, inversion, and scaling of output signals.
Displays Programmable displays with a wide se-
lection of inputs and outputs for display of temperature,
volume, weight, etc. Feature linearisation, scaling, and
difference measurement functions for programming via
PReset software.
Ex barriers Interfaces for analogue and digital signals
as well as HART ® signals between sensors / I/P convert-
ers / frequency signals and control systems in Ex zone 0,
1 & 2. Feature options such as mathematical functions
and 2 wire transmitter interfaces.
Temperature
A wide selection of transmitters for DIN
form B mounting and DIN rail modules with analogue
and digital bus communication ranging from application-
specifi c to universal transmitters.
Backplane Flexible motherboard solutions for sys-
tem 5000 modules. Our backplane range features fl exible
8 and 16 module solutions with confi guration via PReplan
8470 – a PC program with drop-down menus.
All manuals and user guides at all-guides.com
5 3 4 3

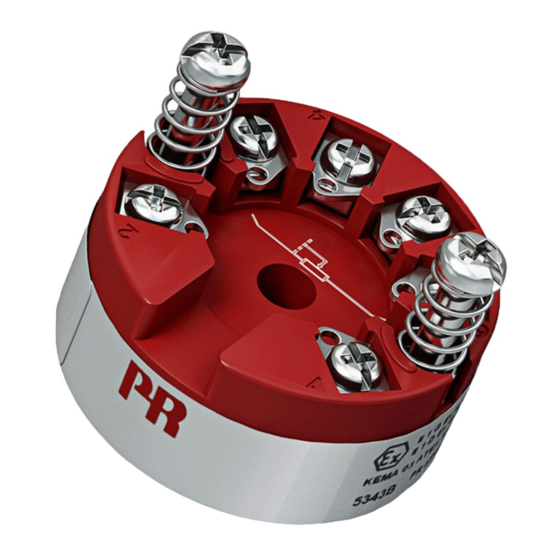

2 - W i r e
L e v e l T r a n s m i t t e r
N o . 5 3 4 3 V 1 0 1 - I N ( 0 3 2 6 )
F r o m s e r . n o . 9 9 0 3 1 7 0 0 1
S I G N A L S T H E B E S T
Side 1
DK
Page 15
UK
Page 29
FR
Seite 43
DE
