3. Cold start lever
4. Fuel tap
5. Starter cord
6. Air filter housing
7. Wheel
8. Foot
9. Spark plug connector
10. Ignition switch
11. Motor oil filling screw
12. Voltage display
13. Circuit-breaker switch
14. Alternating current connections
15. Ground connection
Scope of delivery
• Generator
• Handles
• Foot
• Tool set
Note: If any one of the parts is missing
or damaged, contact the retailer.

Assembly

Note: Make sure there is no fuel in the
tank and no motor oil in the machine.
Mounting the foot
Figure 2 – Page 3
– Position the device upside down. Two people
will be needed.
– Screw the foot (8) with 2 hexagonal screws (15)
and nuts to the frame using suitable tools.
Mounting the wheels
Figure 3 – Page 3
– Insert the long screws into the wheels (7) and
then push through the brackets.
– Secure the wheels (7) with nuts (16).
Mounting the handles
Figure 4 – Page 3
– Insert the handles (1) through the brackets on
left and right and secure with screws and
nuts (17).
– Insert the locking pins (18) into the lower drilled
hole.
• Wheels (2 ×)
• Bag containing small
parts
• Operating instruc-
tions

Set up and initial use

Setting up
– Place the device on a level and sufficiently stable
surface.
– Always use the device outdoors in a well venti-
lated environment.
– Keep a distance of at least 1 m to surrounding
walls or objects. This enables sufficient air to be
fed to the motor, and the exhaust fumes can dis-
perse safely.
Filling with fuel
DANGER! Risk to life!
Fuel is explosive!
– Switch off the motor and allow to
cool down before refilling.
– Observe all of the safety notes for
handling fuels (Handling fuels –
Page 44).
– Immediately clean away any fuel
that is split during the refilling
process.
Note: Prescribed fuel. Fuel and lubri-
cants to be used – Page 52.
Figure 1 – Page 3
– Before opening, clean the tank lid (2) and funnel,
if required.
– Slowly unscrew the tank lid (2) and remove.

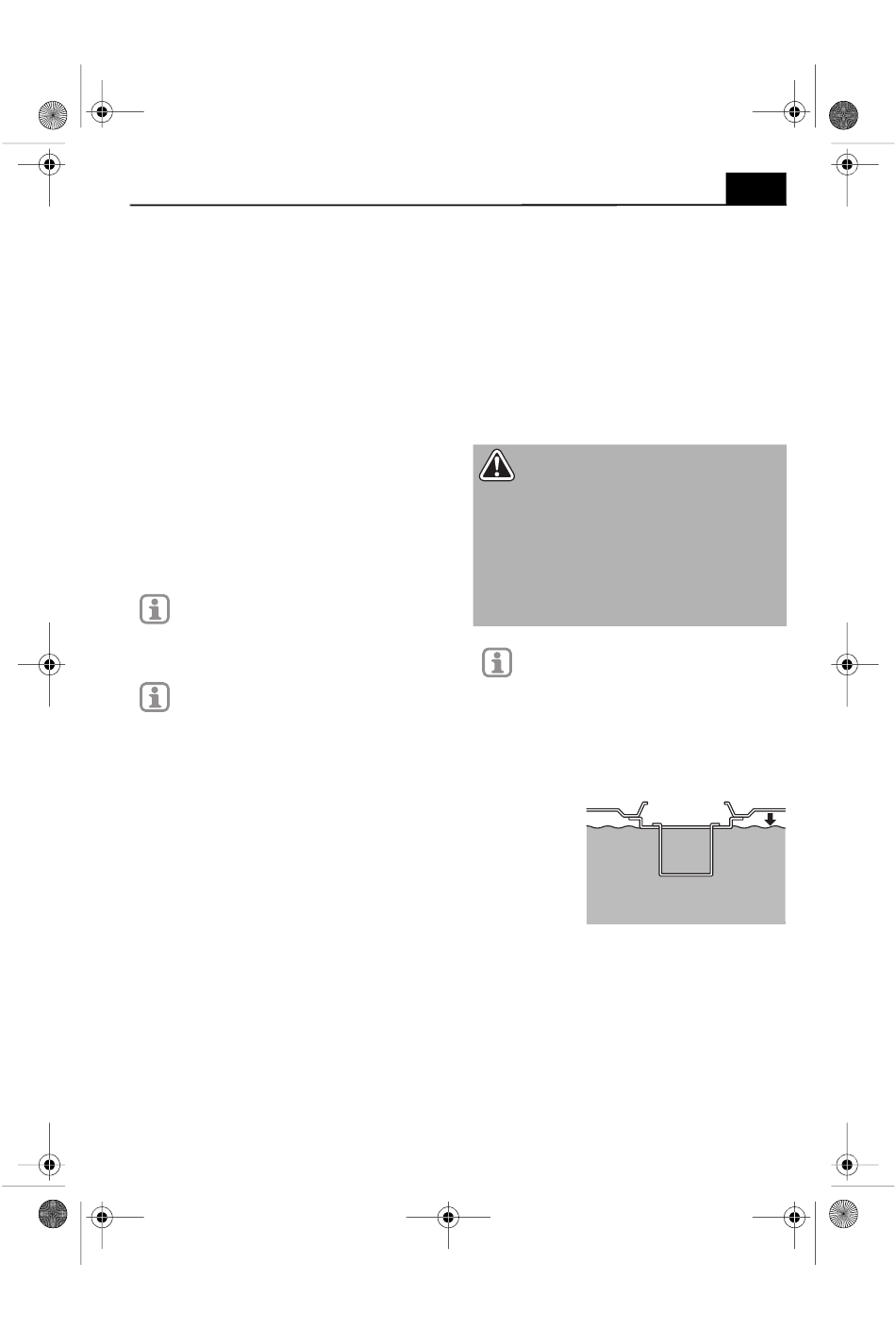

– Fill the fuel to
the upper
edge of the
fuel filter so
that the filter
insert does not
overflow.
– Carefully fill with fuel. Do not spill!
– Check the seal in the tank lid for damages, and
clean if necessary.
Immediately replace damaged seals!
– Tighten the tank lid (2) by hand.
– If any fuel is spilled: Remove any fuel immedi-
ately.
