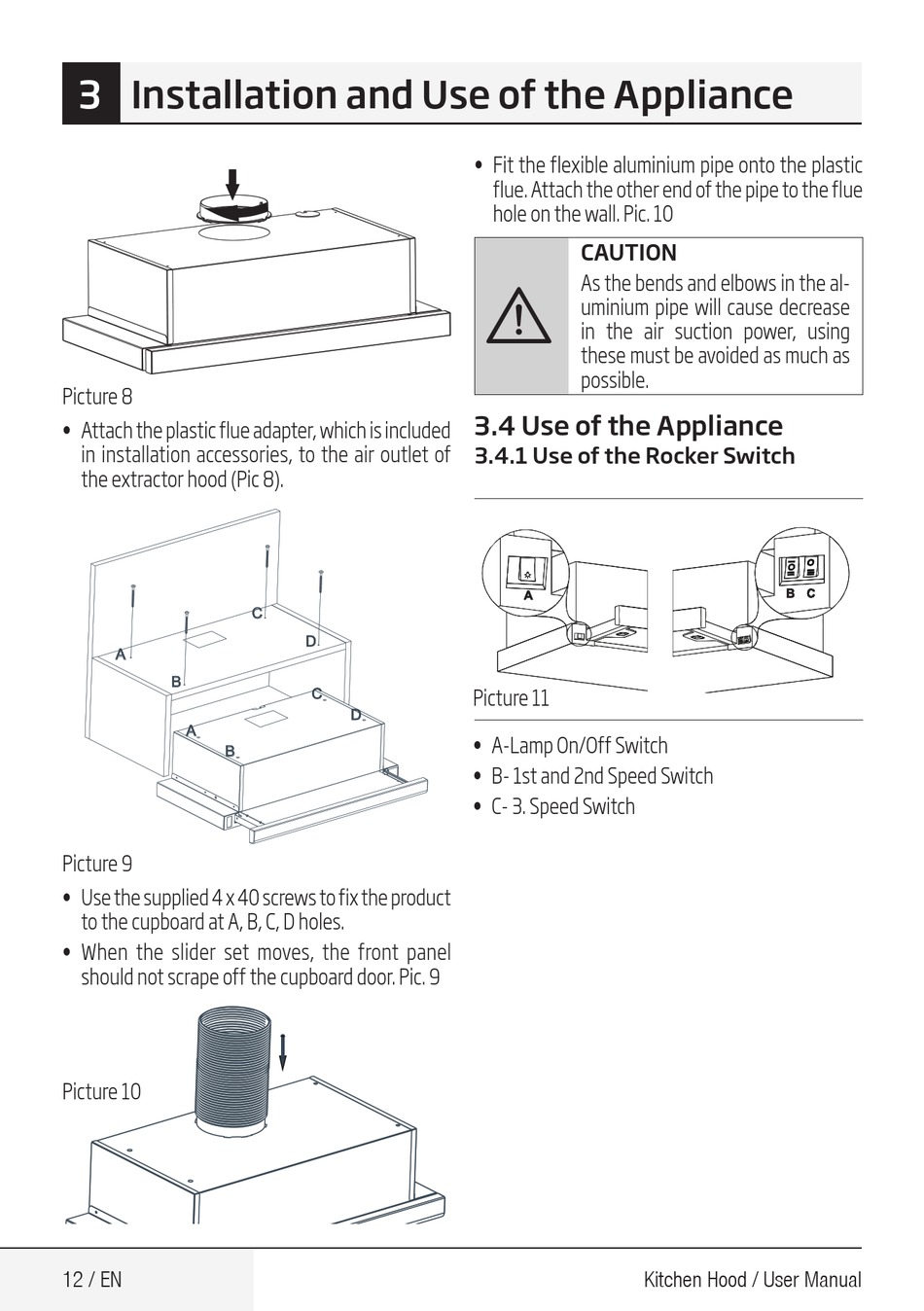

3 Installation and Use of the Appliance
Picture 8
• Attach the plastic flue adapter, which is included
in installation accessories, to the air outlet of
the extractor hood (Pic 8).
A
B
A
B
Picture 9
• Use the supplied 4 x 40 screws to fix the product
to the cupboard at A, B, C, D holes.
• When the slider set moves, the front panel
should not scrape off the cupboard door. Pic. 9
Picture 10
12 / EN
C
D
C
D
• Fit the flexible aluminium pipe onto the plastic
flue. Attach the other end of the pipe to the flue
hole on the wall. Pic. 10
CAUTION
As the bends and elbows in the al-
A
uminium pipe will cause decrease
in the air suction power, using
these must be avoided as much as
possible.

3.4 Use of the Appliance

3.4.1 Use of the Rocker Switch
Picture 11
• A-Lamp On/Off Switch
• B- 1st and 2nd Speed Switch
• C- 3. Speed Switch
